ADVANTAGES
- Compact dimension
- High measuring precision
- High balancing precision
- Users friendly
- Fast change over
BTSK10

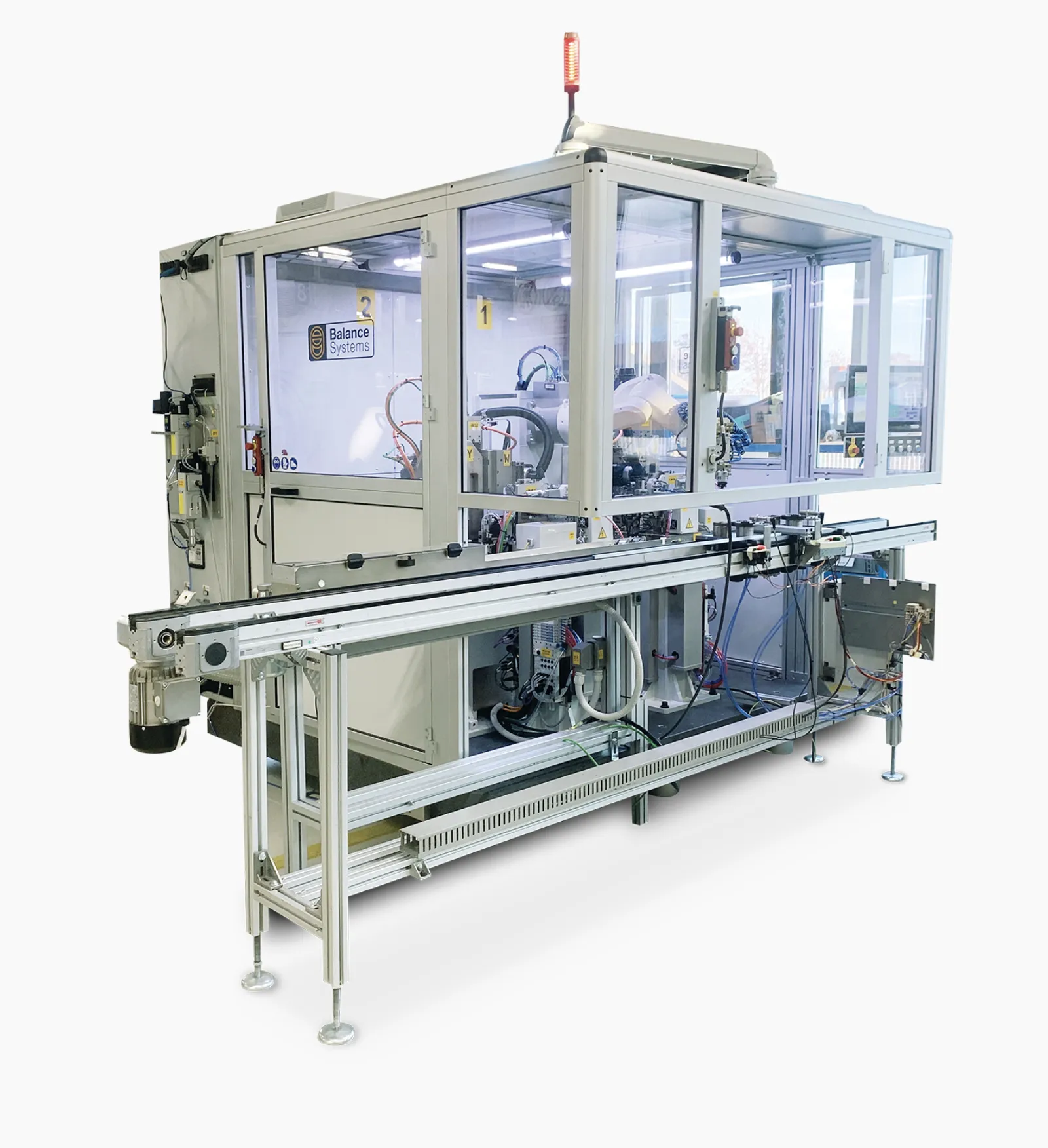

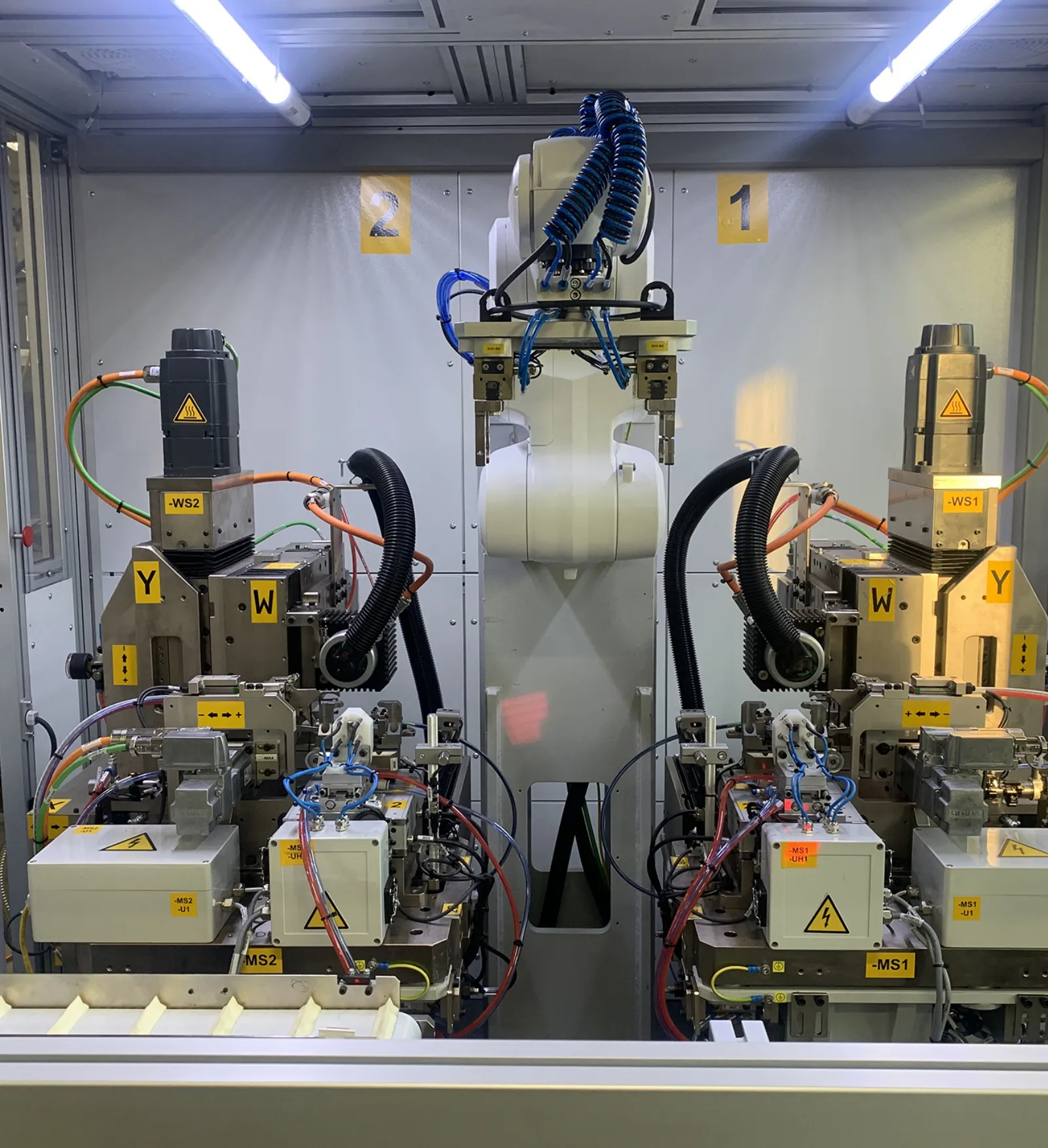

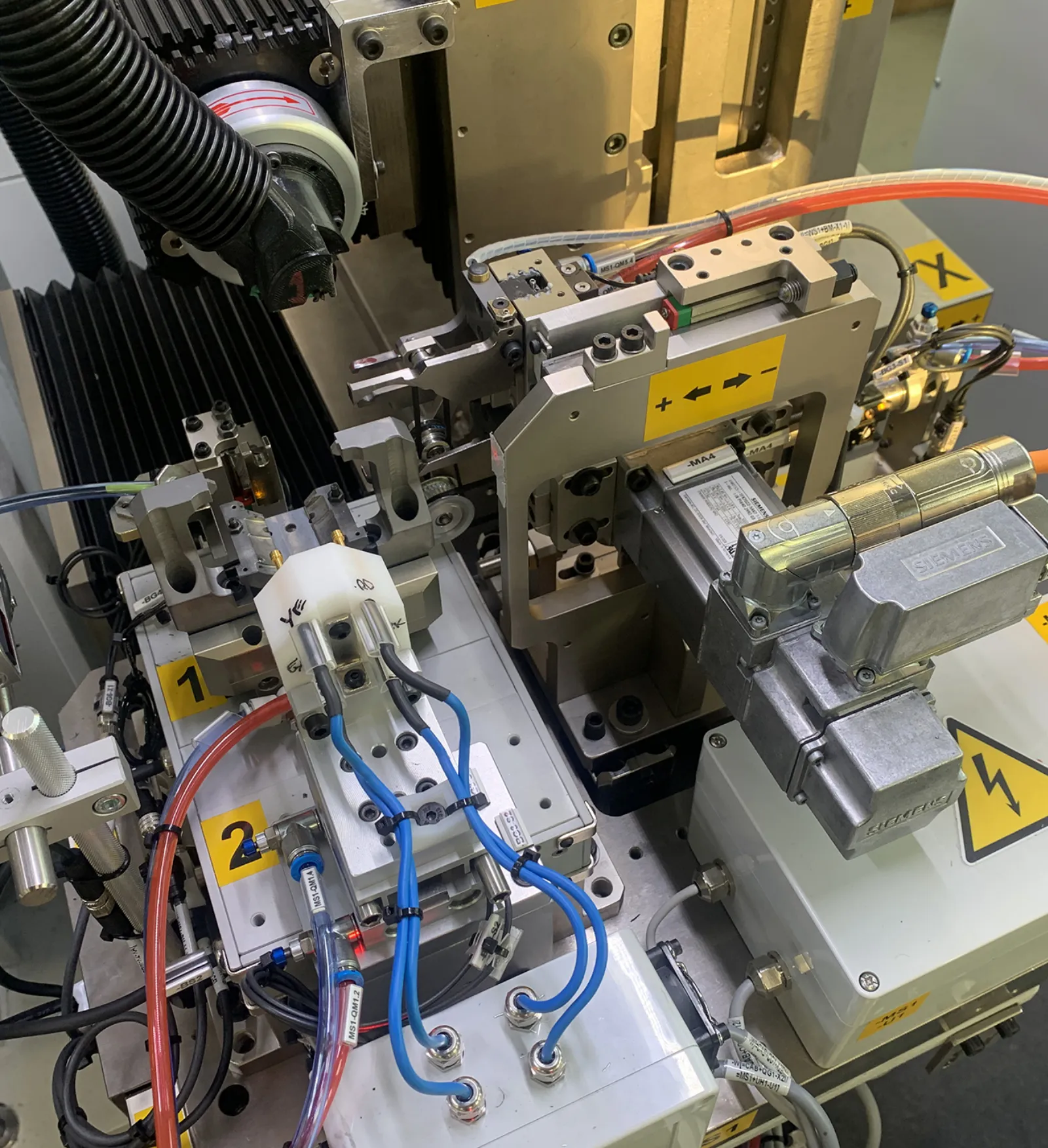

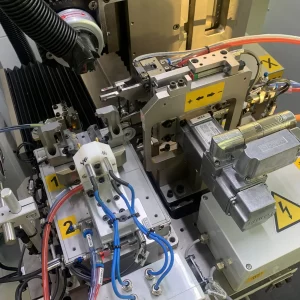

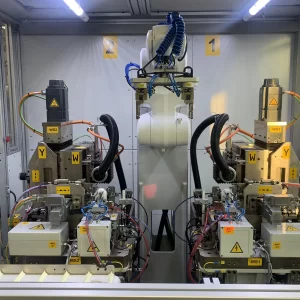

Automatic balancing machine for assembled vacuum cleaner motors. The machine is composed by two working unit, each working unit is composed by: unbalance measuring unit, angular positioning and unbalance compensation unit for two planes by punching or milling on the impeller. Parts loading/unloading from customer pallet line is performed in automatic by robot.
TECHNICAL FEATURES
|
Parts max weight: |
1 kg |
|
Parts max diameter: |
100 mm |
|
Unbalance measure speed: |
Programmable |
|
Cycle time: |
19 s |
|
Dimensions (LxWxH): |
2300 x 2470 x 2300 mm |
|
Weight: |
3000 kg |
|
Power supply: |
380-480 V three-phase 50/60 Hz |
|
Compressed air: |
6 bar |
|
Controlled by: |
Industrial PC |
|
Industrial vacuum cleaner for removing cutting or milling chips |
|
SPC Software |
|
Tele-service |
|
Calibration Master |
|
DMC reader |
|
Electronic pallet codification |
|
Tooling plausibility control |
