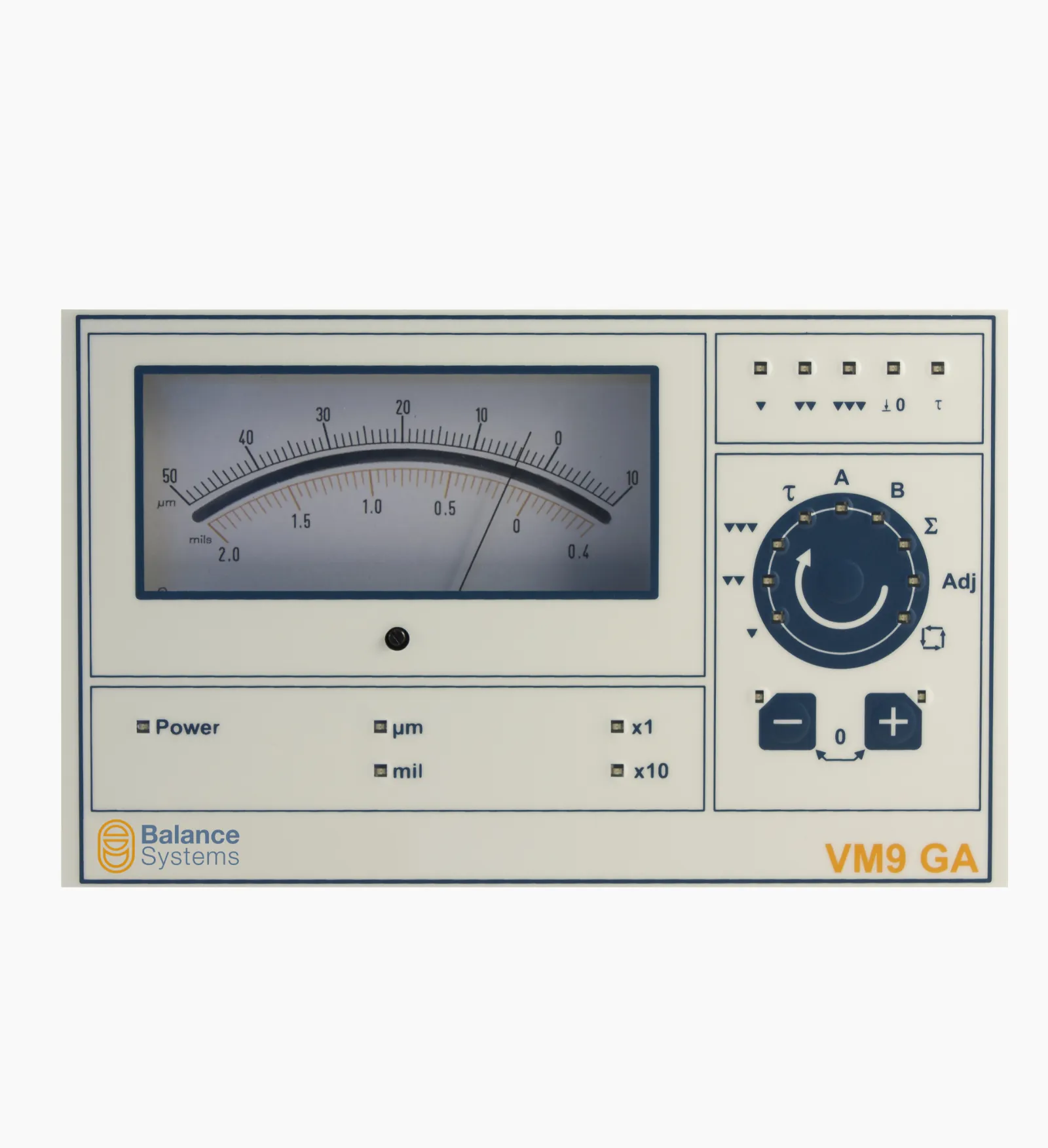

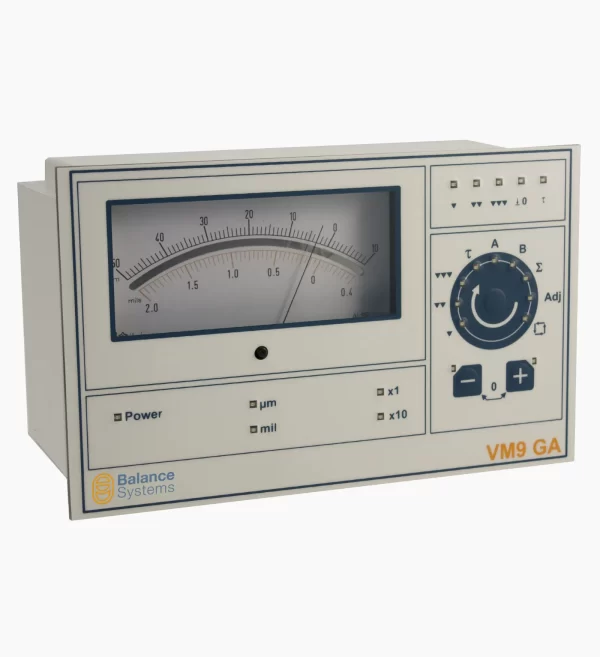

VM9-GA is a in-process gauging system designed for simple, cost-effective and customized applications. Solutions include gauging of internal, external diameters and thickness both on smooth and on interrupted surfaces.

Categories:, Tags:

DESCRIPTION

TYPE DESCRIPTION

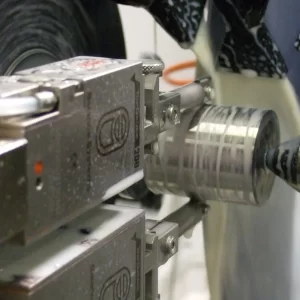

1) Top Gauge 200 TG200 modular gauge heads:



  • TGN030 – universal, for small range, w/o retraction
  • TGF030 – universal, for small range, with retraction
  • TGR040 – universal, for small range, with adjustable retraction
2) Supports and glides
  • Complete set of fixed and re-toolable brackets
  • Pneumatic and hydraulic slides with stroke of 50mm, 75mm
3)Brackets and probes
  • Complete set of fingers with different shape and length, fixed or re-toolable, with anti-crash option (exclusive Balance Systems’s design)
  • Threaded contact in chemical diamond or carbide
  • Roll bar contact in carbide
4) Thermal stabilization Kit of systems for thermal stabilization based on “showers” of coolant liquid

FEATURES

  • Compact and reliable even in rugged environments
  • Analog display of the dimension, ergonomic keyboard with a selector and 2 buttons
  • 4 commands to control the feed rate (roughing, finishing, dwell, end of cycle)
  • Process diagnostics

ADVANTAGES

  • Makes production stable and consistent with tight tolerances
  • Compensates the grinding wheel wear
  • Can be installed on any type of grinding machine, both new and retrofitting
  • Easy to use
  • Does not require surveillance
