VM9-BA
VM9-BA - Image 2

VM9-BA

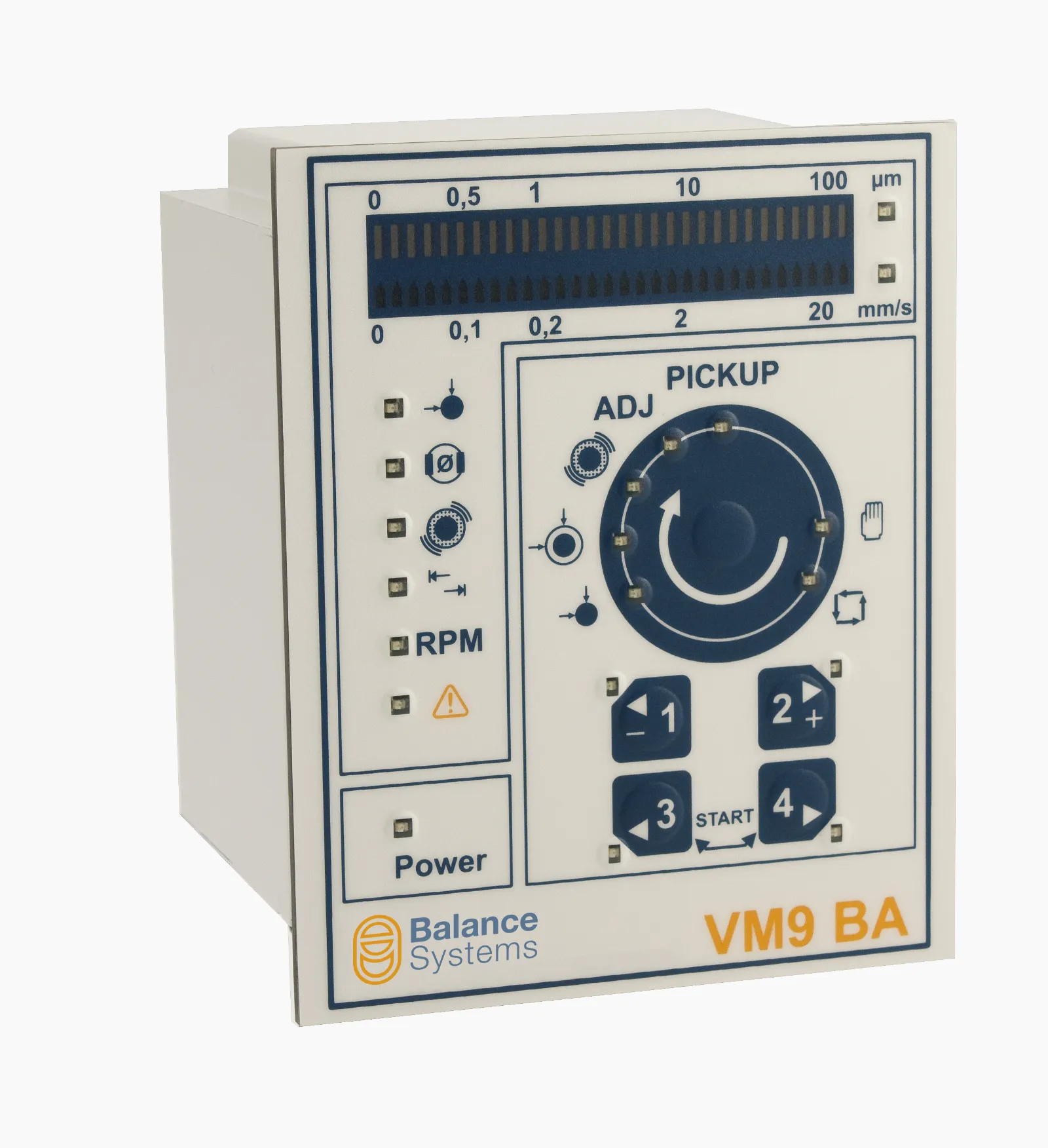

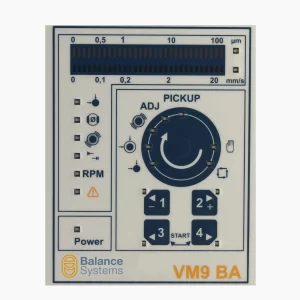

VM9-BA is system for the automatic balancing of the spindles in grinding machines. It is designed for simple and cost-effective applications. It is suitable for both new machines and retrofitting.

Categories:, Tags:

DESCRIPTION

Range of balancing heads

Balance Systems’ SD balancing heads are the first devices in the world which have been specifically designed by Balance Systems with moment-free architecture. This solution brings the benefit of no dynamic-influence on the grinding spindle which improves the surface finishing.



SDE model is mounted externally by a flange and it is controlled via cable. This solution is suitable for retrofitting applications.

Fitting diameter [mm] Max compensation capacity [gcm]
95 1700
114 6500
130 12000



SDI model is mounted inside the spindle shaft through a flange or a self-lock system and it is controlled via cable.

Diameter of the spindle bore [mm] Max compensation capacity [gcm]
38 580
42 1200
50 2000
55 4400
60 5000
63 8700
70 8700
81 8700

FEATURES

  • Compact and ergonomic
  • Automatic balancing of the grinding spindle
  • Automatic neutral cycle (compensation weights at 180°)
  • Programmable limits for balancing target and vibration alarm
  • Vibration level display with led bar graph

ADVANTAGES

  • Optimization of the surface finishing quality
  • Constantly controls vibrations of the spindle
  • Extends lifetime of the spindle and grinding wheel
  • Does not require surveillance.

DATASHEET

VM9-BA_datasheet
