ADVANTAGES
- Compact machine
- High level of flexibility
- High measuring precision
- High balancing precision
- Quick changeover
- User friendly

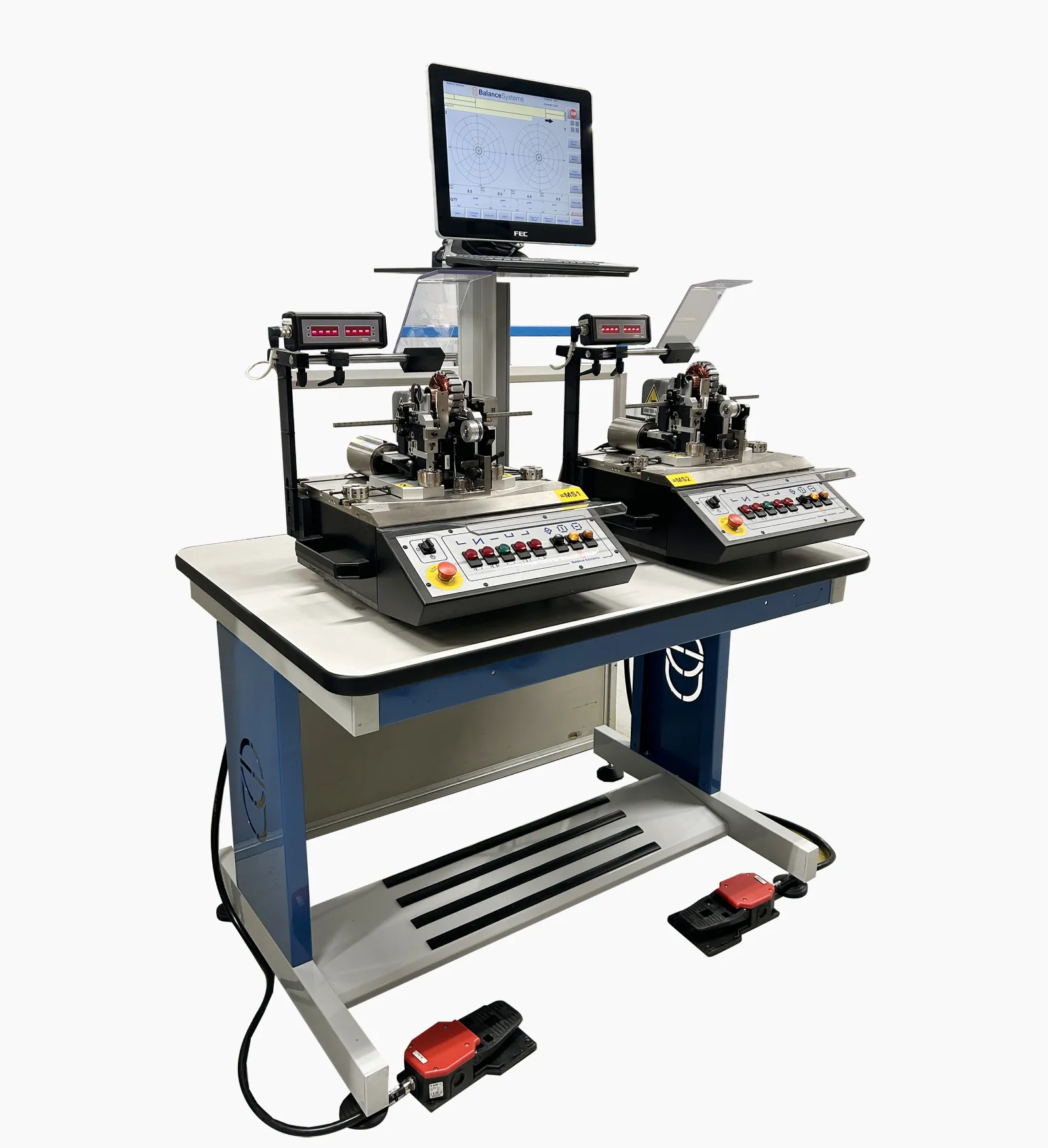

MK3-2S is a general-purpose balancing machine, recommended for small-scale production, as well as for use in testing laboratories for product development or quality control.

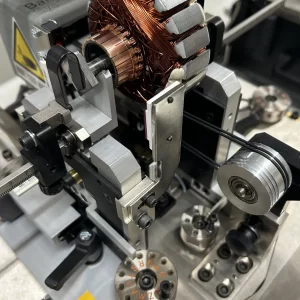

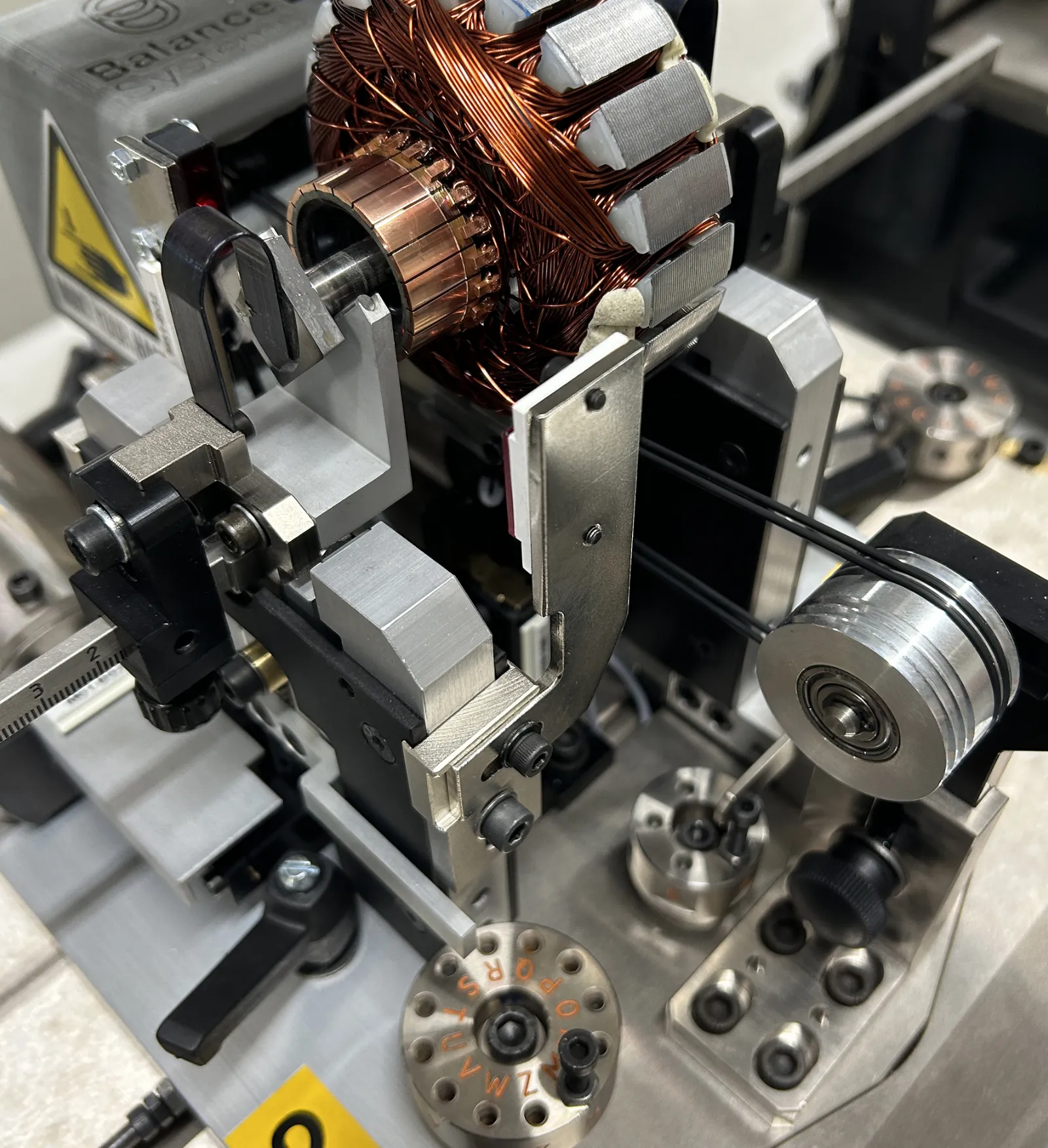

Unbalance correction is performed manually by adding or removing material. The machine is equipped with a mechanical measuring device connected to an industrial PC and includes all the necessary tools and devices for quick and secure changeover. Software is available to assist the operator in correcting unbalance through drilling or milling. The standard configuration includes SPC, diagnostics, and a safety shield.
Parts max weight: |
3 kg |
Parts max diameter: |
90 mm |
Unbalance measure speed: |
Programmable |
Measuring time: |
6 s |
Dimensions (LxWxH): |
1200 x 900 x 1700 mm |
Weight: |
120 kg |
Power supply: |
220 V single-phase 50/60 Hz, 2 kW |
Compressed air: |
6 bar |

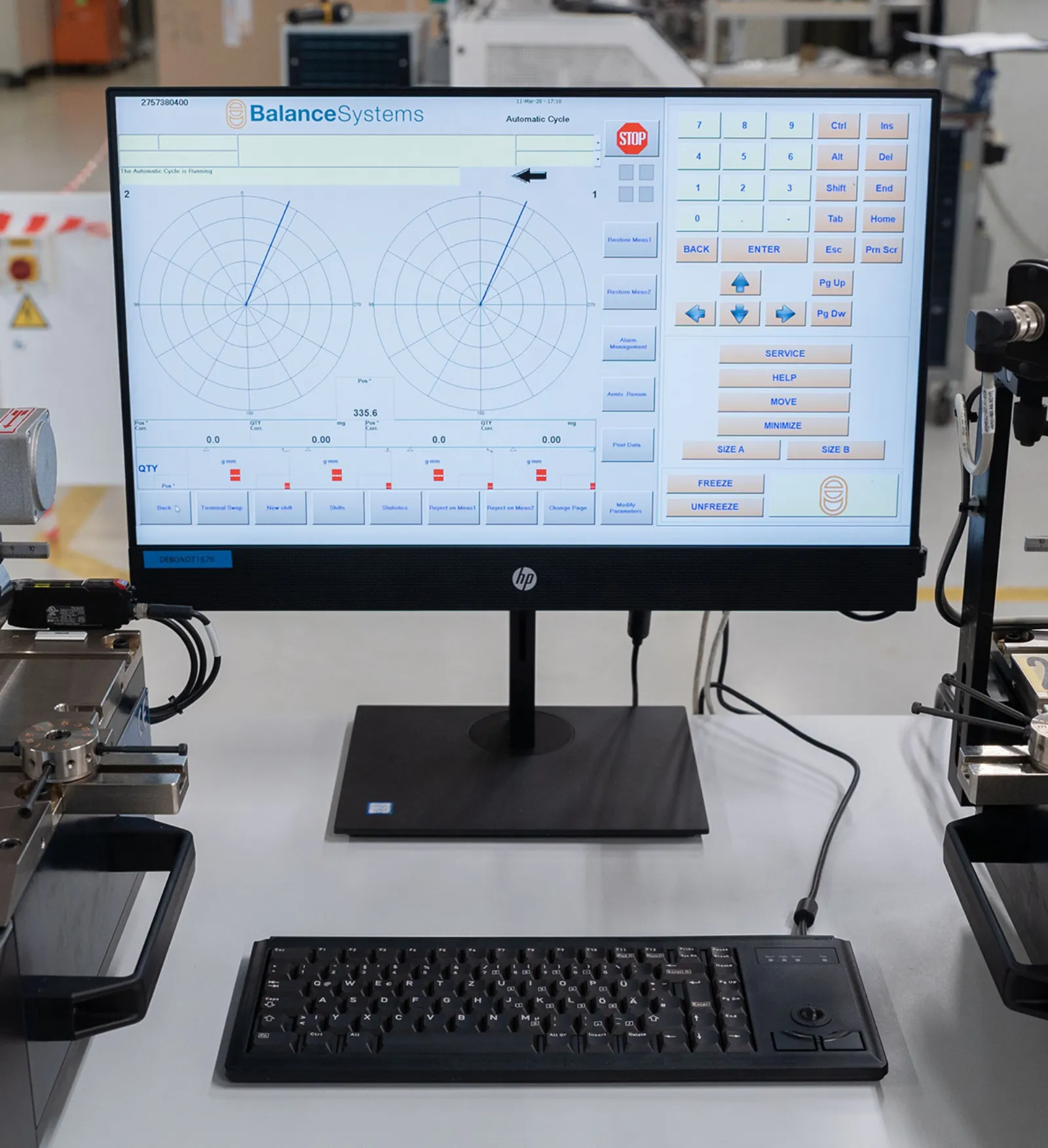

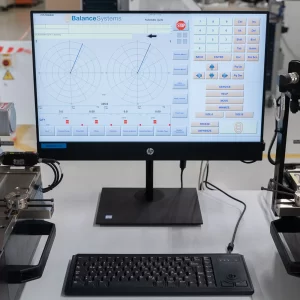

Controlled by: |
15” Touchscreen Industrial PC |
Options |
Tele-service |

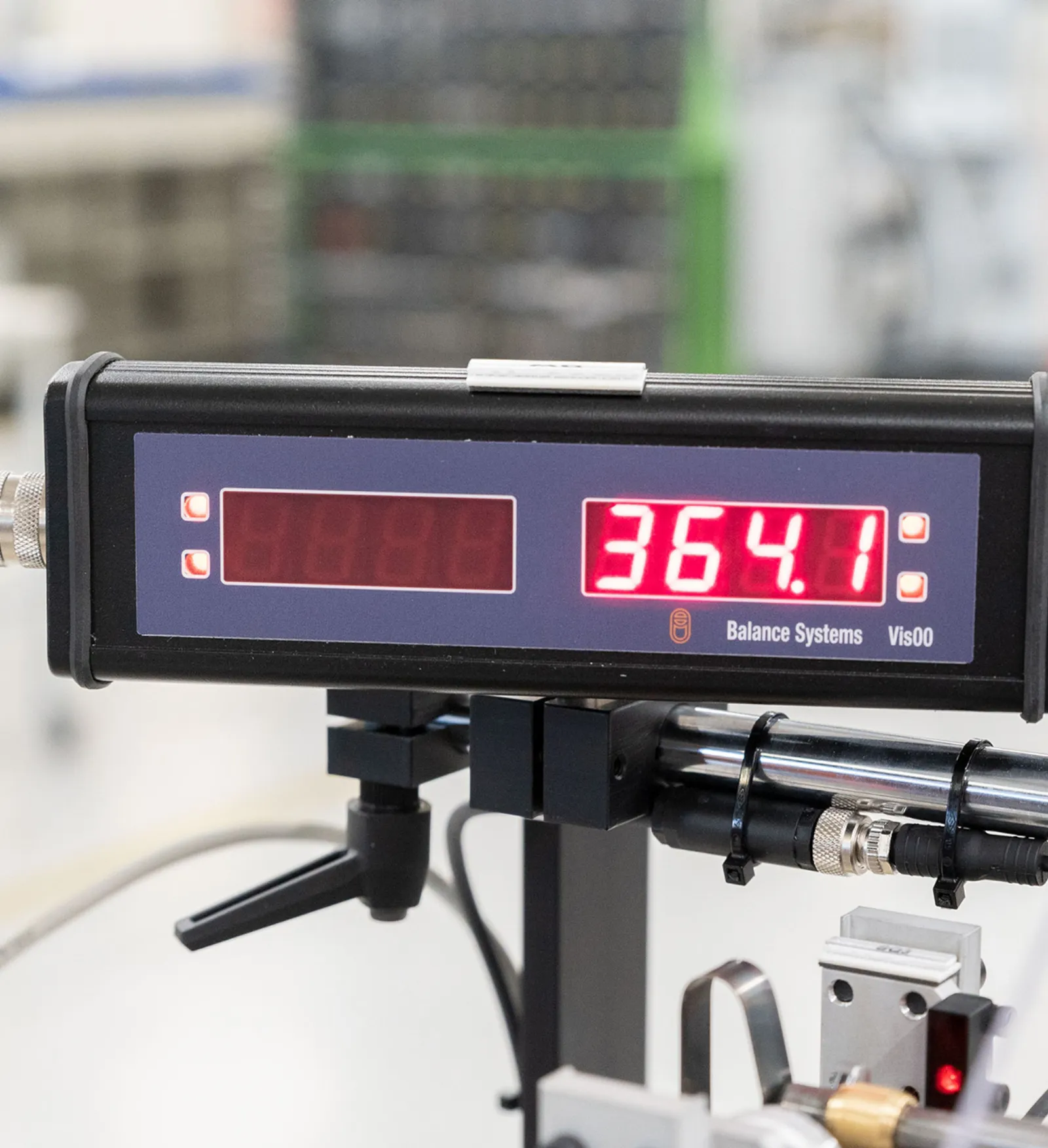

Digital display |
Master rotor |
