ADVANTAGES
- Automatic set-up
- High level of flexibility
- High level of repeatability and precision of the unbalance measuring
- Diagnostic and preventive maintenance program
- Quick changeover
- High level of reliability
- User friendly

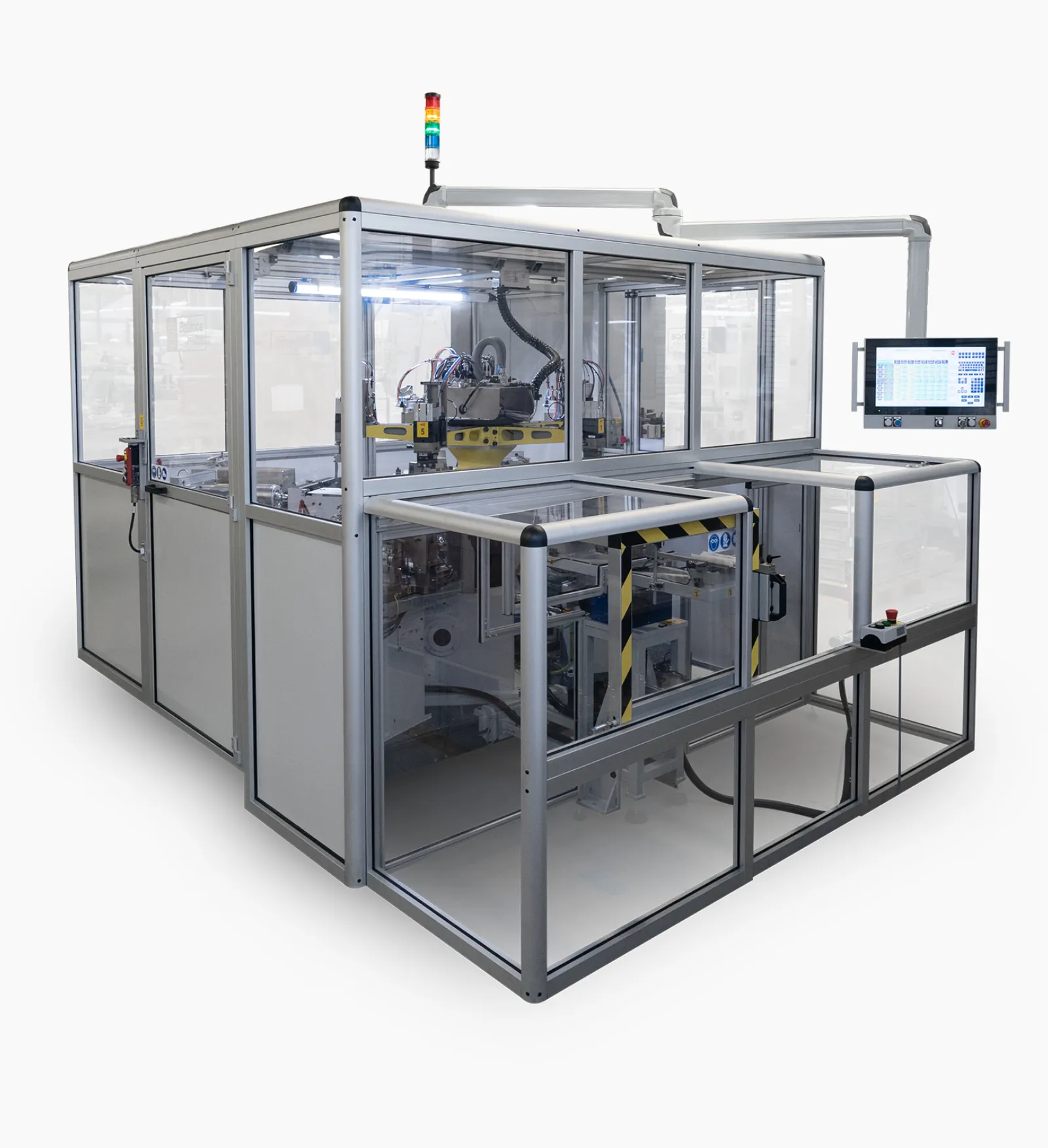

DMK8-A

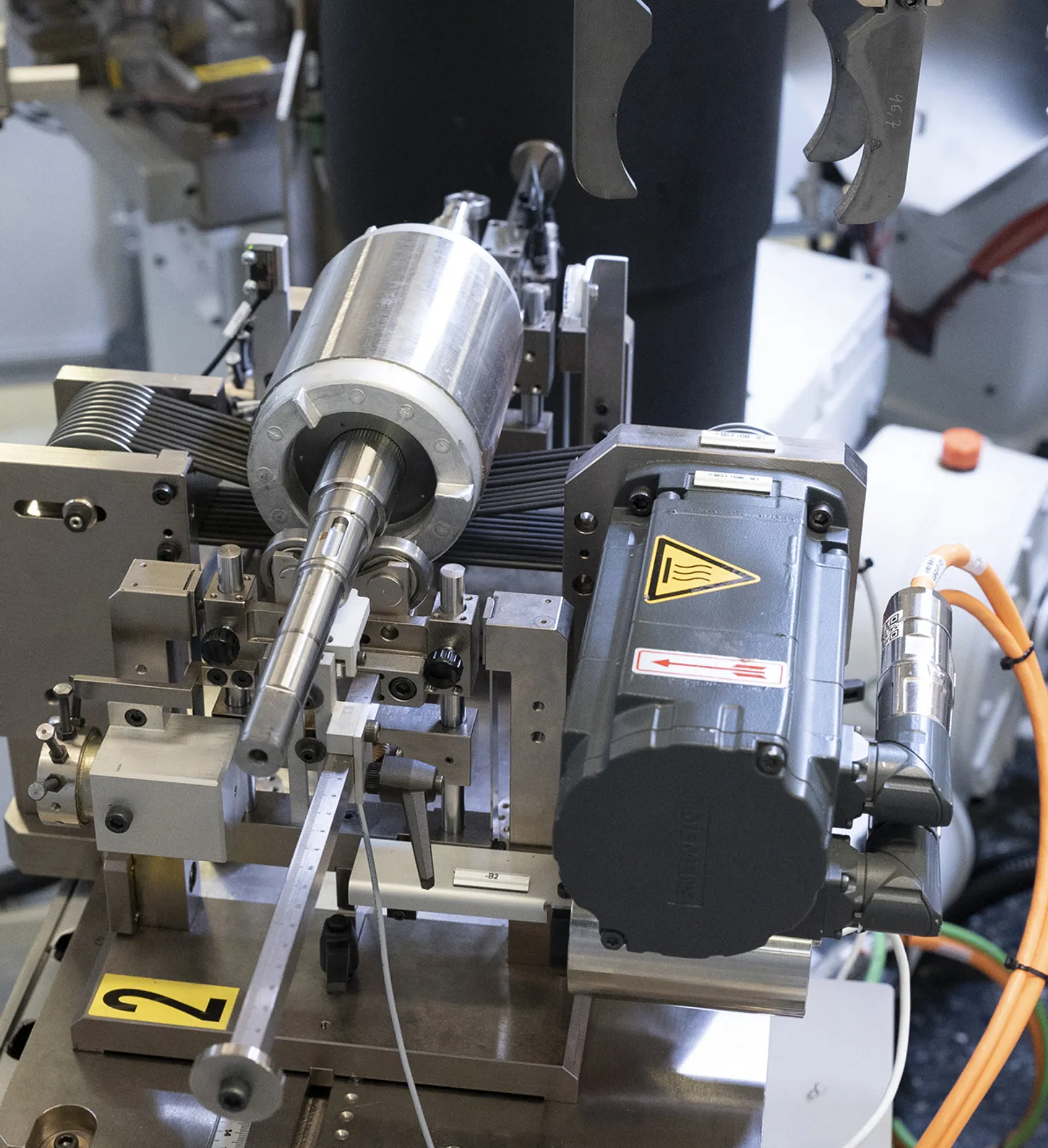

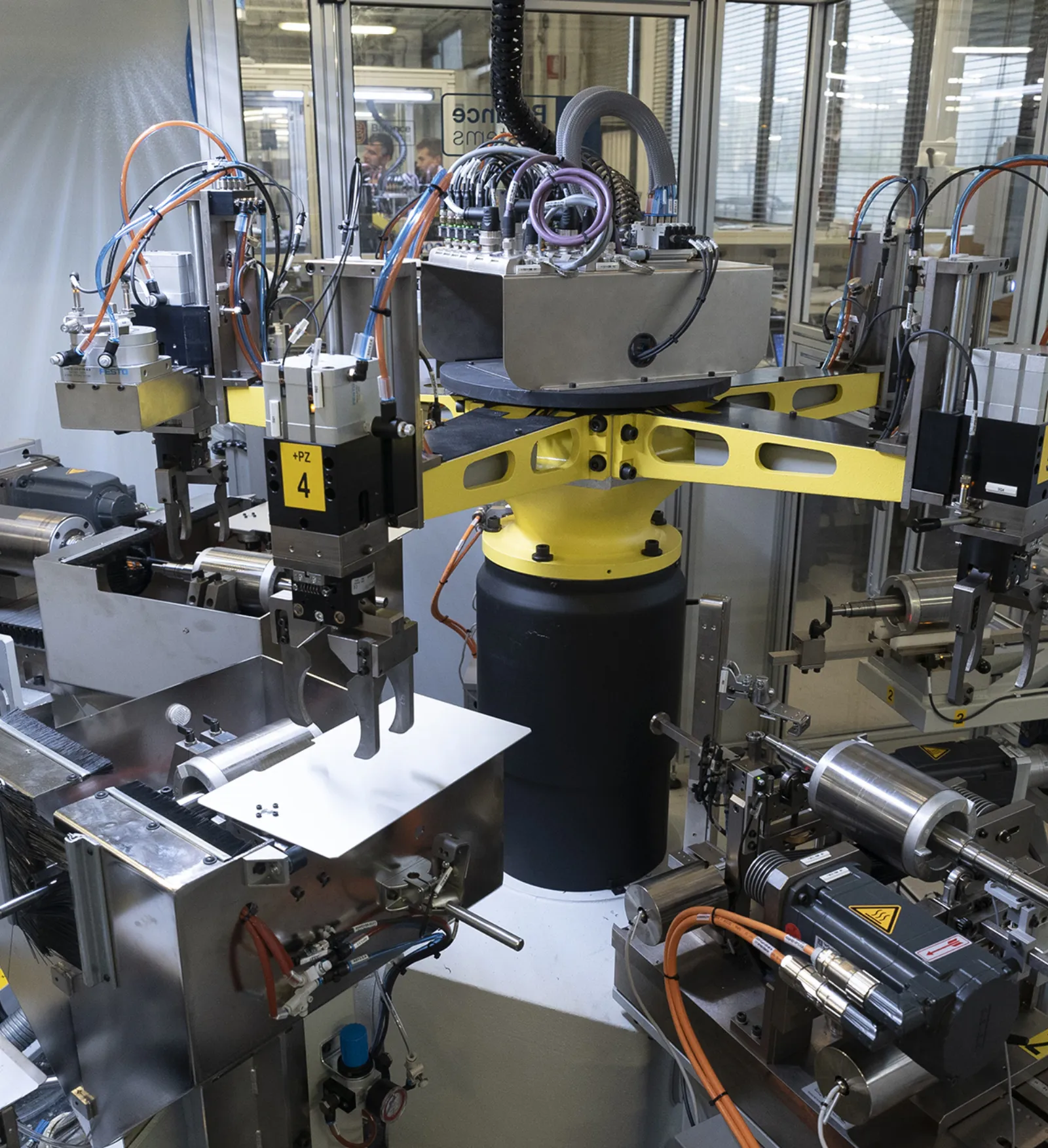

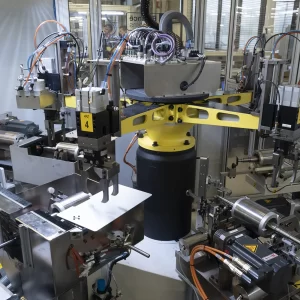

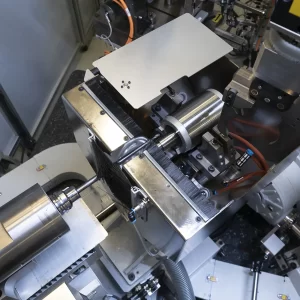

Fully automatic dynamic balancing machine for high-volume production, designed for brushless and asynchronous motor rotors. Unbalance is corrected by axial drilling. Equipped with a measuring unit, two drilling units (one per plane), and an audit unit. Parts are handled by a 5-arm rotary cam index. Features include industrial PC interface, high flexibility, fast changeover, and full integration into any production line.
TECHNICAL FEATURES
|
Parts max weight: |
10 kg |
|
Parts max diameter: |
100 mm |
|
Unbalance measure speed: |
Programmable |
|
Cycle time: |
10 – 30 s (depending on rotor weight) |
|
Dimensions (LxWxH): |
3203 x 2939 x 2763 mm |
|
Weight: |
4500 kg |
|
Power supply: |
380-480 V three-phase 50/60 Hz |
|
Compressed air: |
6 bar |
|
Controlled by: |
Industrial PC |
|
Options |
|
Industrial vacuum cleaner for removing the drilling chips |
|
SPC software |
|
Teleservice |
|
Calibration master |
|
Reject conveyor |
|
Device for quick changeover |
