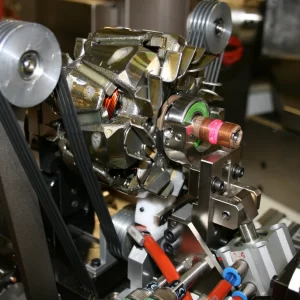

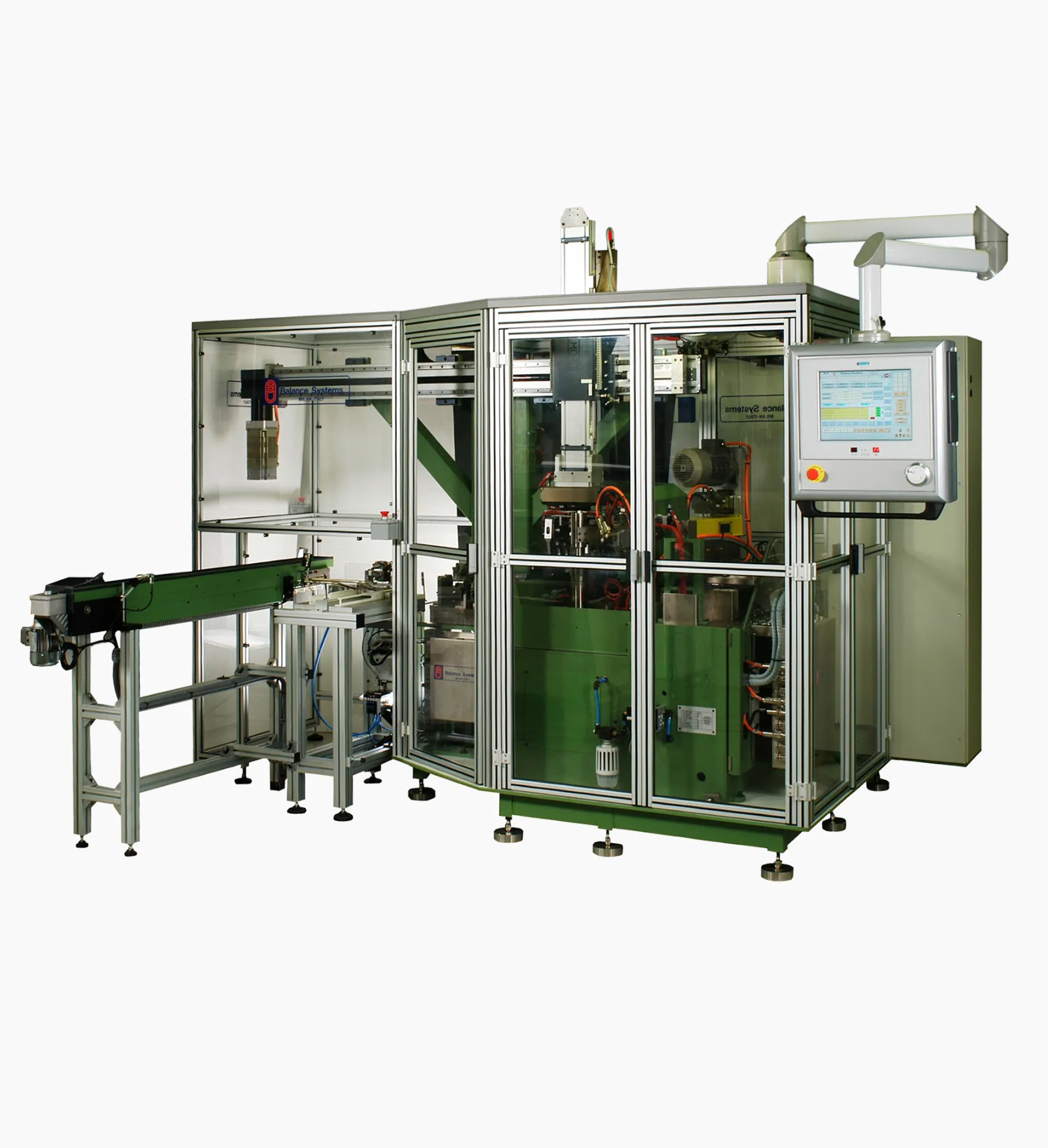

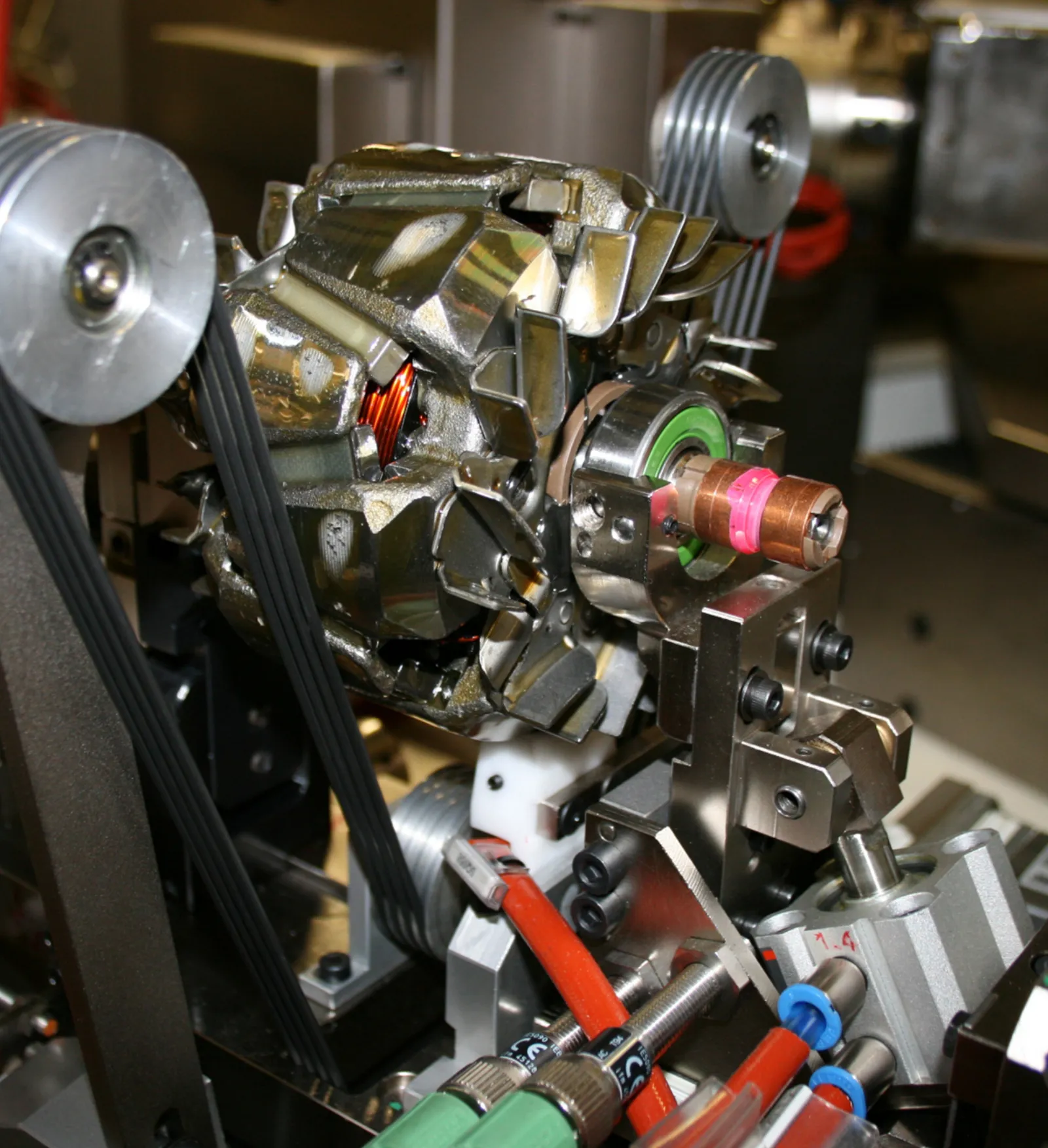

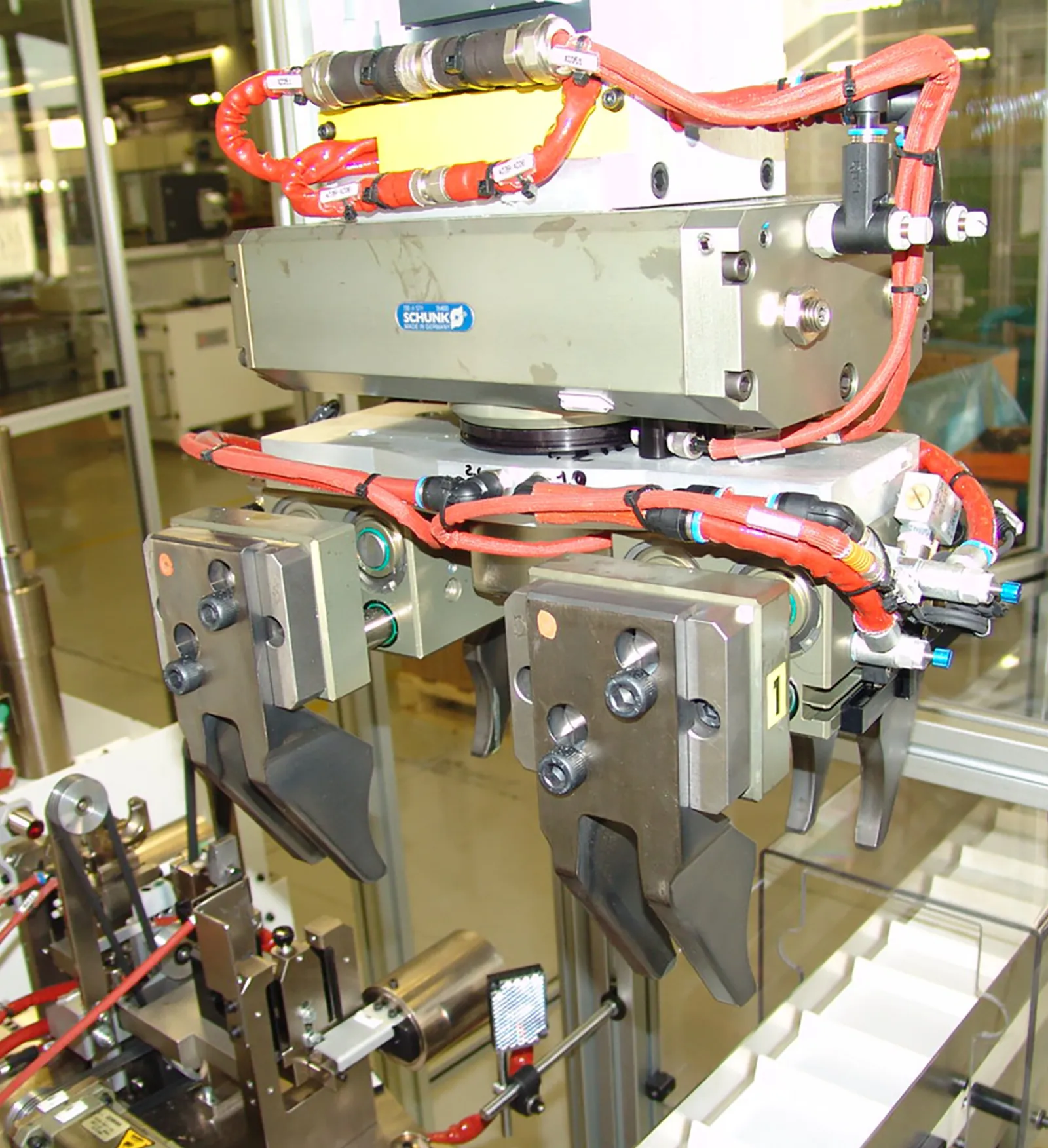

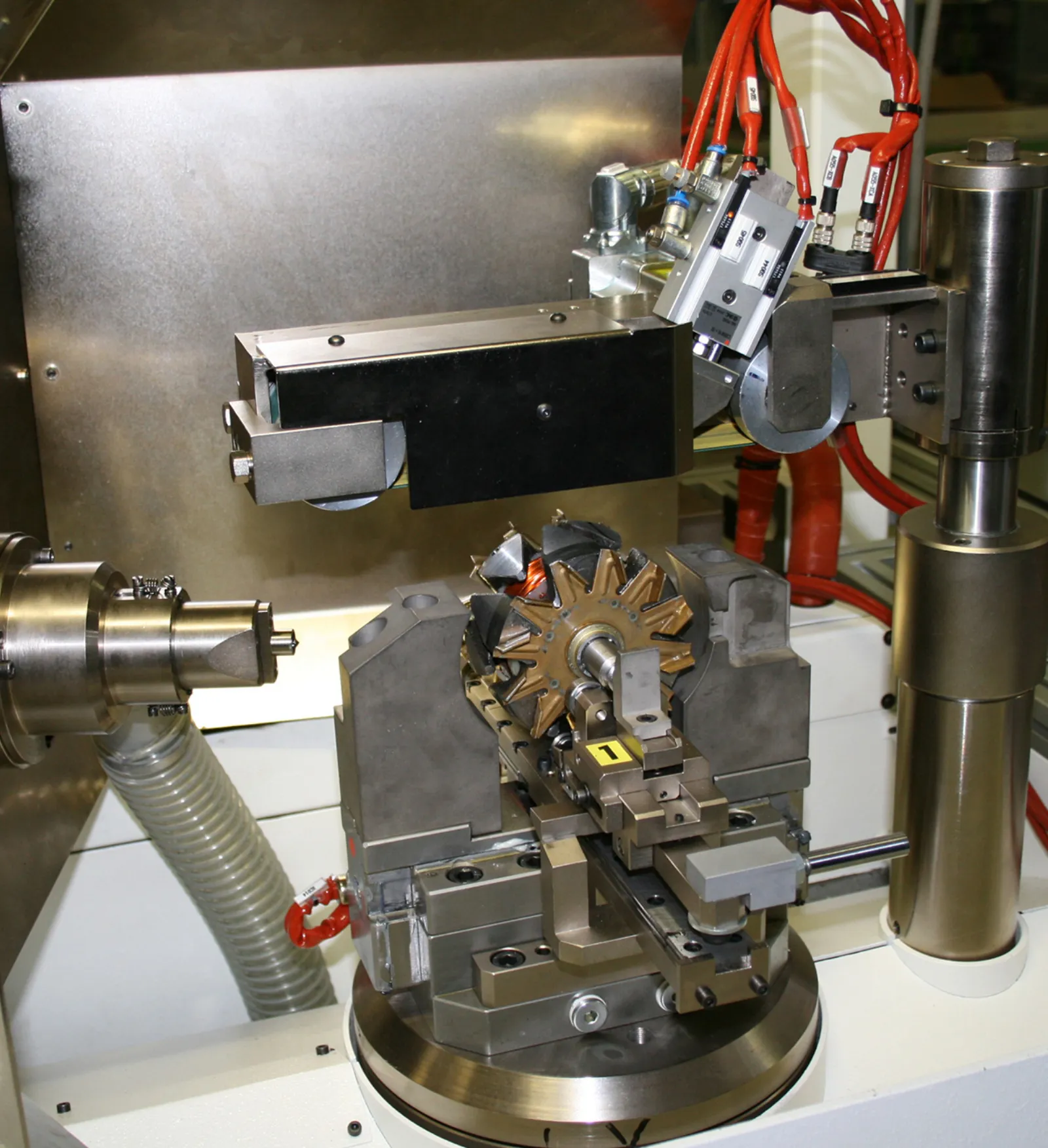

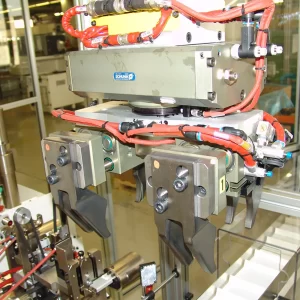

Fully automatic dynamic balancing machine is designed for balancing rotors of automotive alternators and asynchronous electric motors. Unbalance correction is performed using a single drilling head that works on both planes. Parts are handled by a pick-and-place system featuring two controlled axes—horizontal and vertical—and equipped with double grippers. The machine offers a full range of options to meet all customer requirements.
|
Parts max weight: |
2 kg |
|
Parts max diameter: |
70 mm |
|
Unbalance measure speed: |
Programmable |
|
Cycle time: |
14 s |
|
Dimensions (LxWxH): |
2600 x 3000 x 2450 mm |
|
Weight: |
2000 kg |
|
Power supply: |
380-480 V three-phase 50/60 Hz |
|
Compressed air: |
6 bar |
|
Controlled by: |
Industrial PC |
|
Options |
|
Industrial vacuum cleaner for removing the drilling chips |
|
SPC software |
|
Teleservice |
|
Calibration master |
|
Master management |
|
Rejected parts storage |
