ADVANTAGES
- Automatic set-up.
- High level of flexibility
- High level of repeatability and precision of the unbalance measuring
- Diagnostic and preventive maintenance program
- Quick changeover
- High level of reliability
- User friendly
DMK4-R

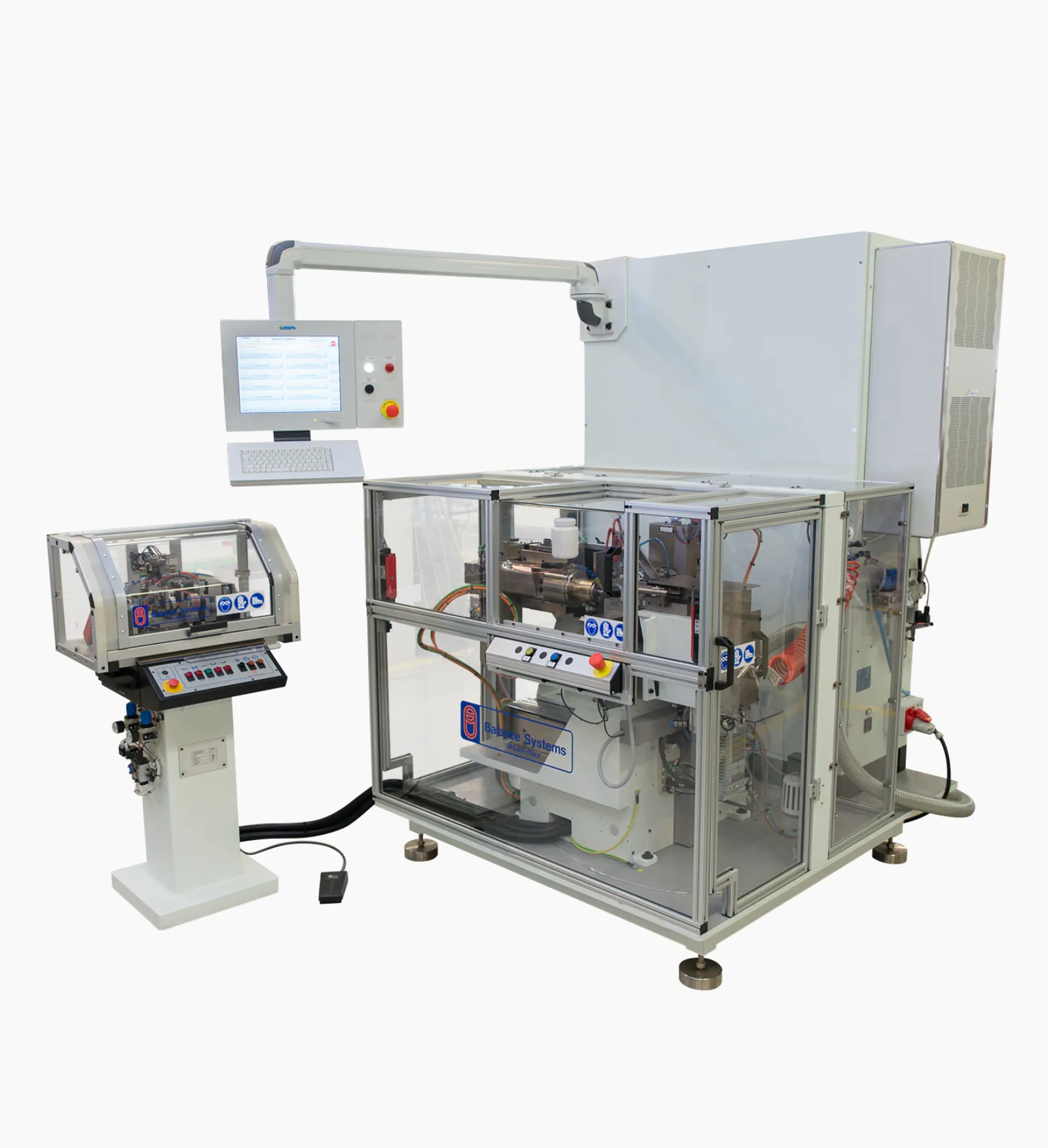

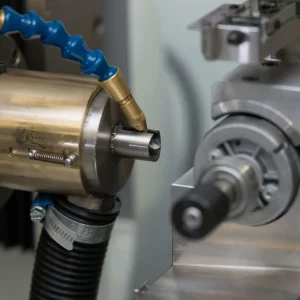

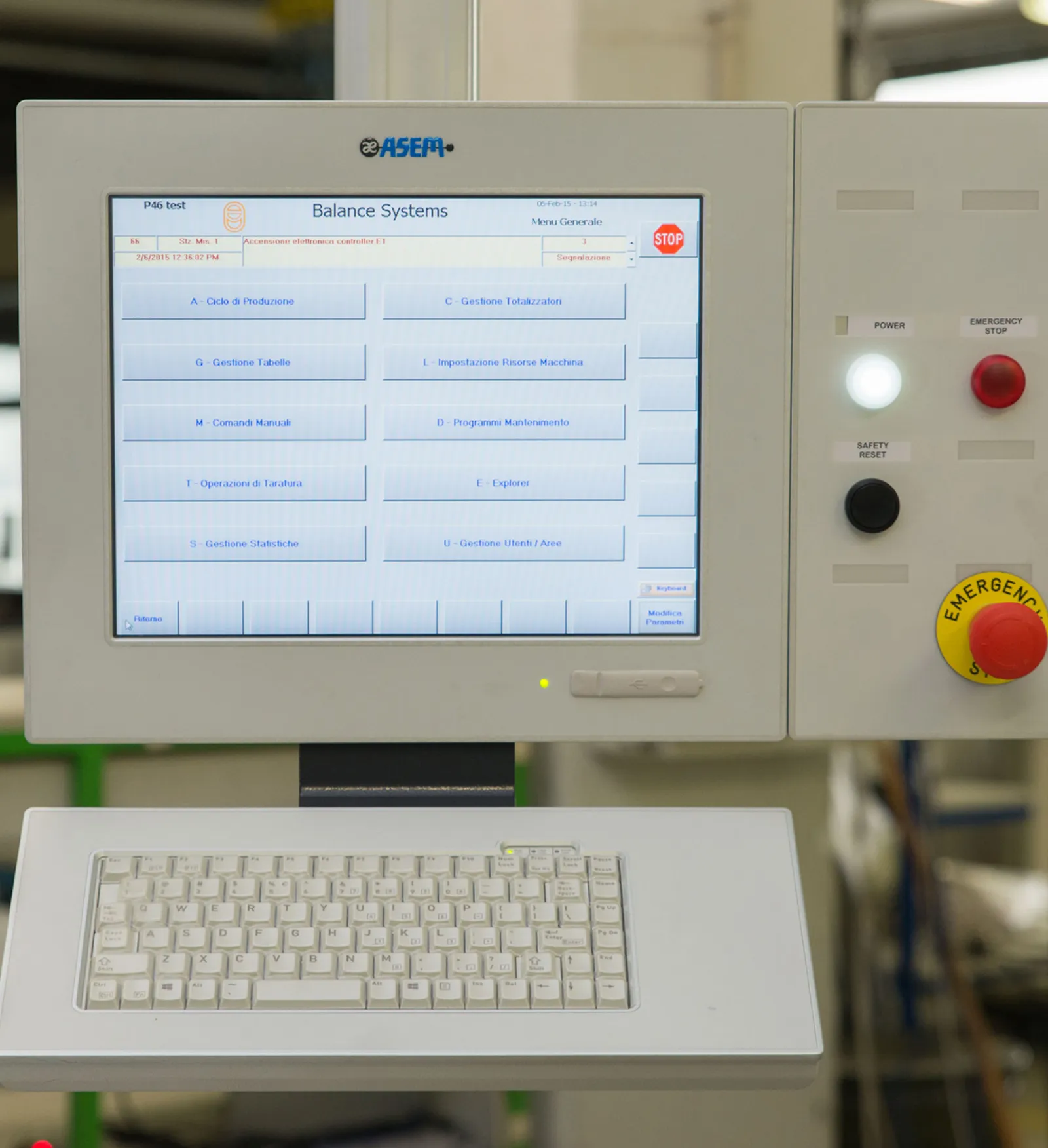

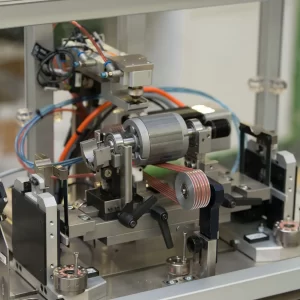

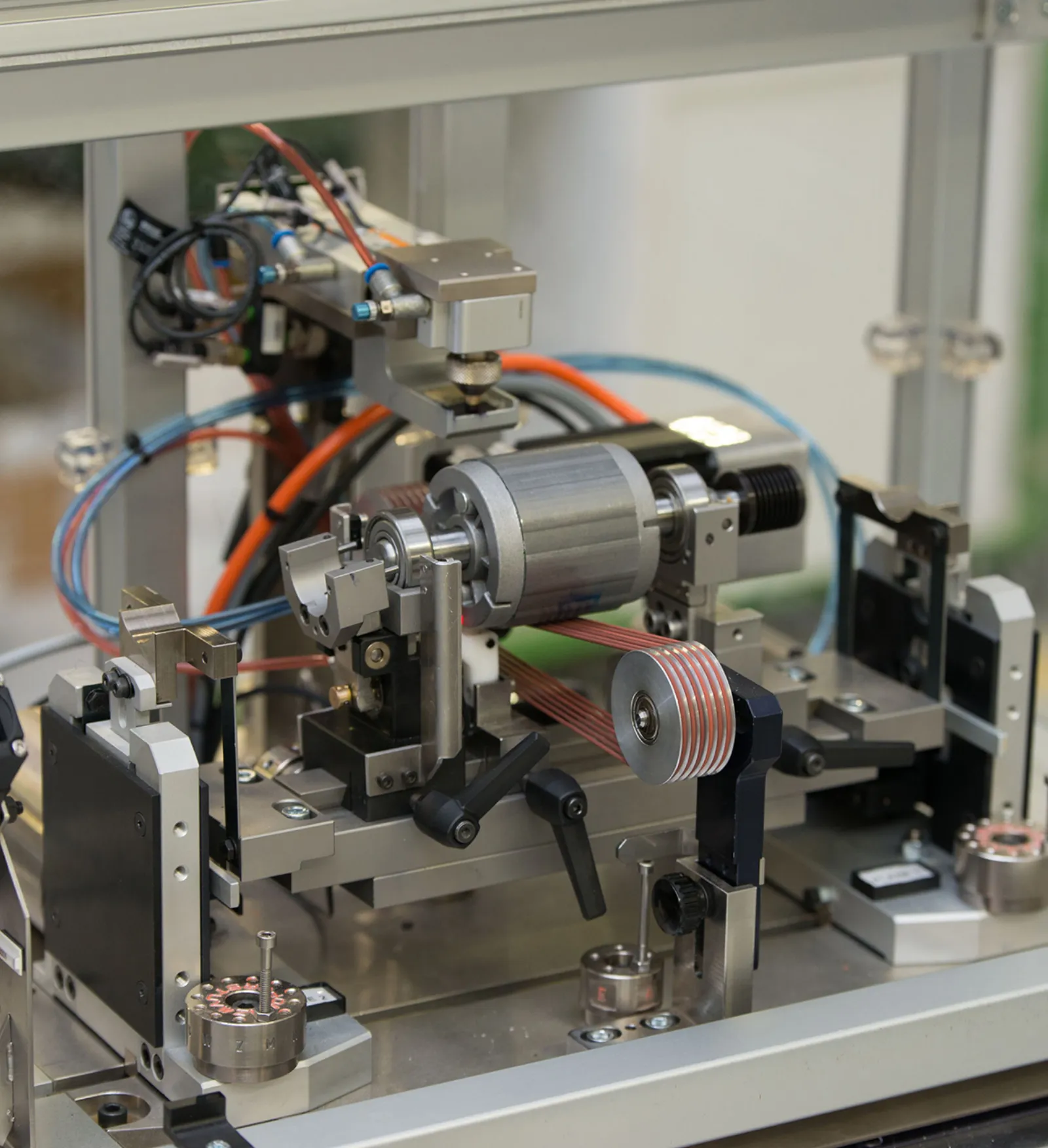

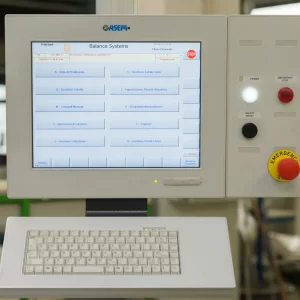

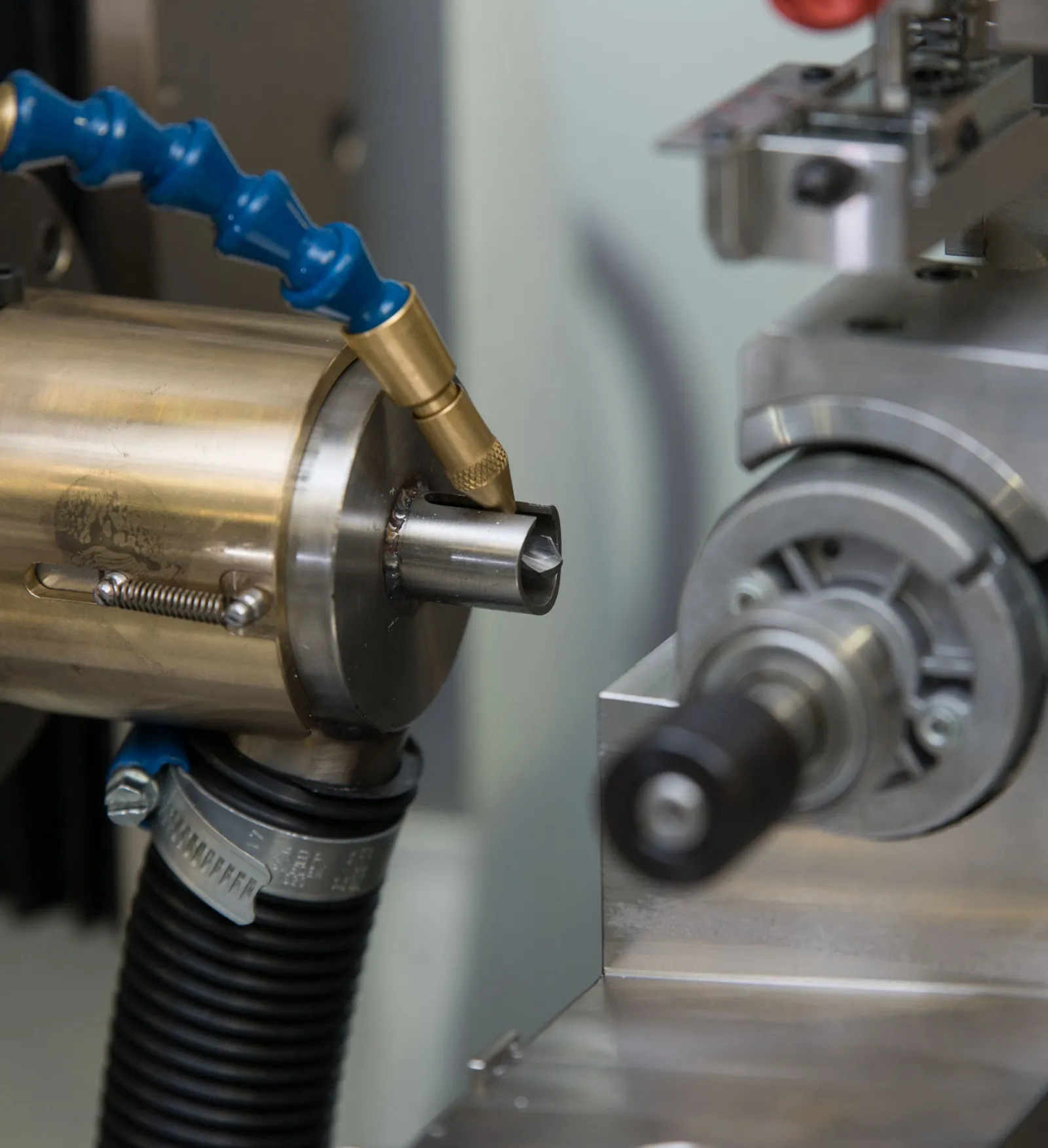

The semi-automatic balancing machine is specifically designed for the dynamic balancing of rotors for asynchronous motors, brushless motors, and similar rotating components on two planes. Unbalance correction is performed automatically by material removal through radial drilling or axial milling. The operator interface is managed via an industrial PC, ensuring high flexibility and quick changeovers. Loading and unloading of parts are performed manually.
TECHNICAL FEATURES
|
Parts max weight: |
4 kg |
|
Parts max diameter: |
80 mm |
|
Unbalance measure speed: |
Programmable |
|
Cycle time: |
20 s |
|
Dimensions (LxWxH): |
1500 x 1700 x 2200 |
|
Weight: |
1800 kg |
|
Power supply: |
380-480 V three-phase 50/60 Hz |
|
Compressed air: |
6 bar |
|
Controlled by: |
Industrial PC |
|
Options |
|
Re-checking unit |
|
Industrial vacuum cleaner for removing drilling chips |
|
SPC software and printer |
|
Teleservice |
|
Calibration master |
|
Marking device |
