DMK4-A-I
DMK4-A-I - Image 2
DMK4-A-I - Image 3

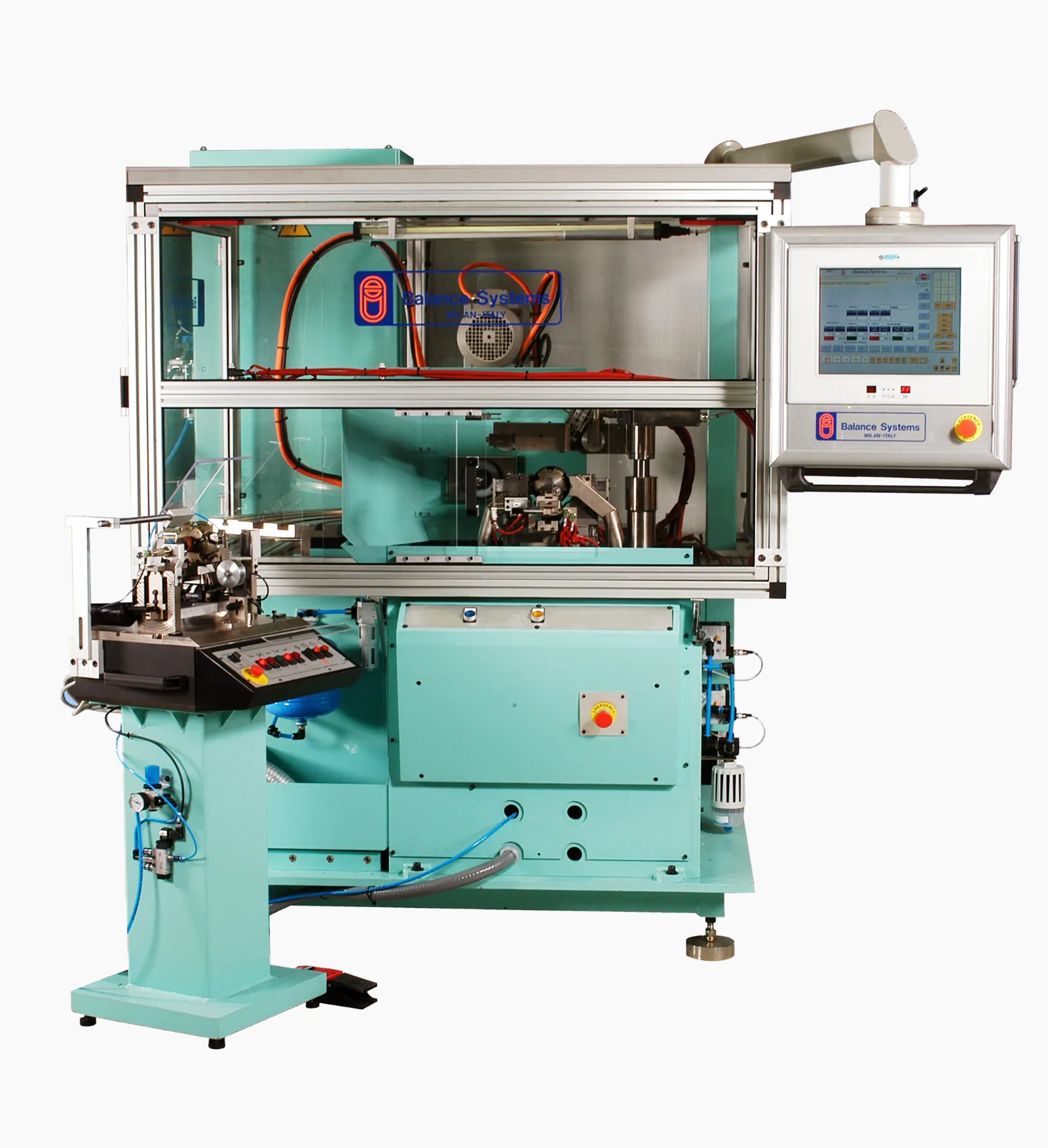

DMK4-A-I

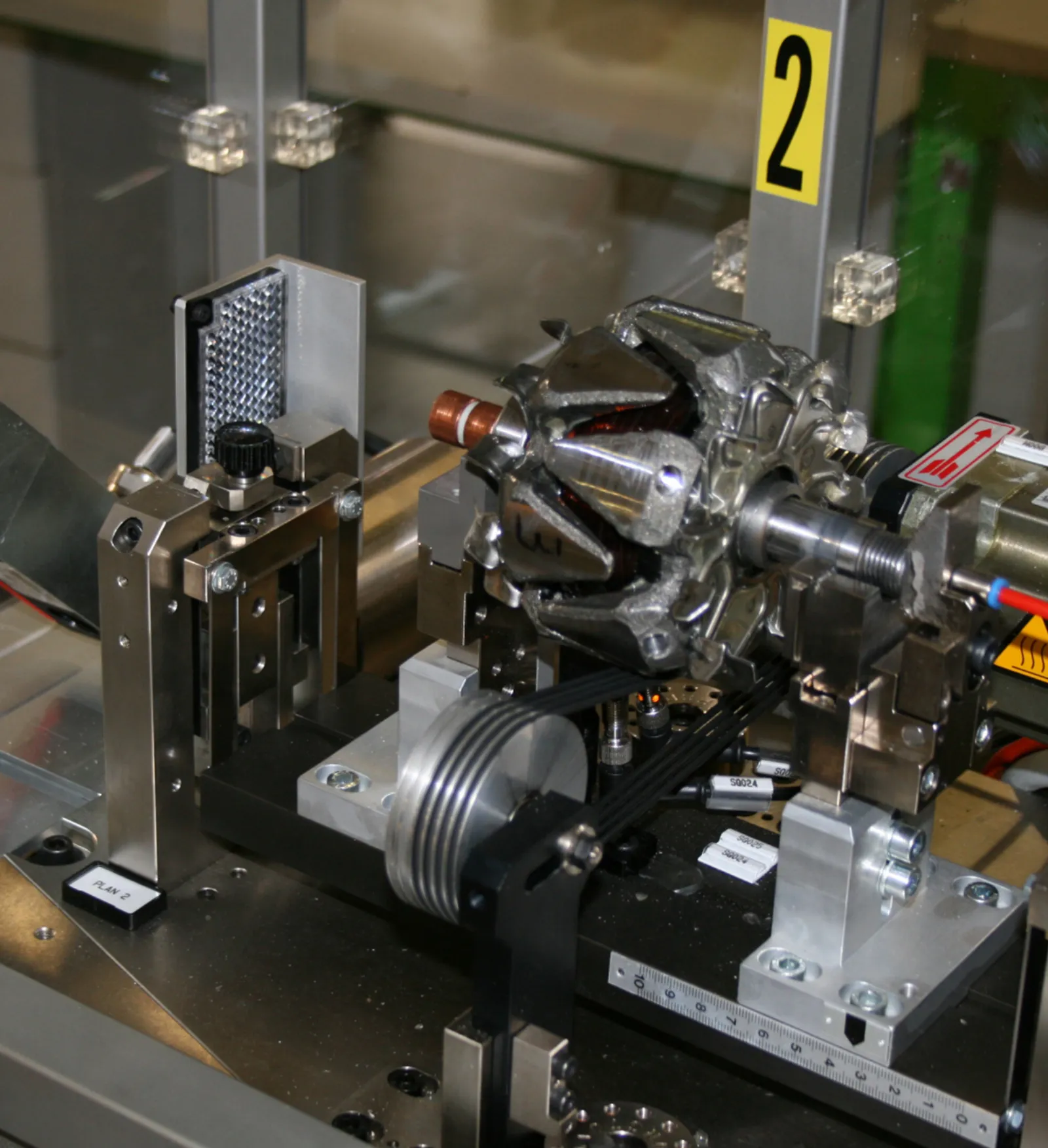

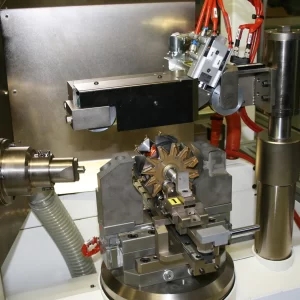

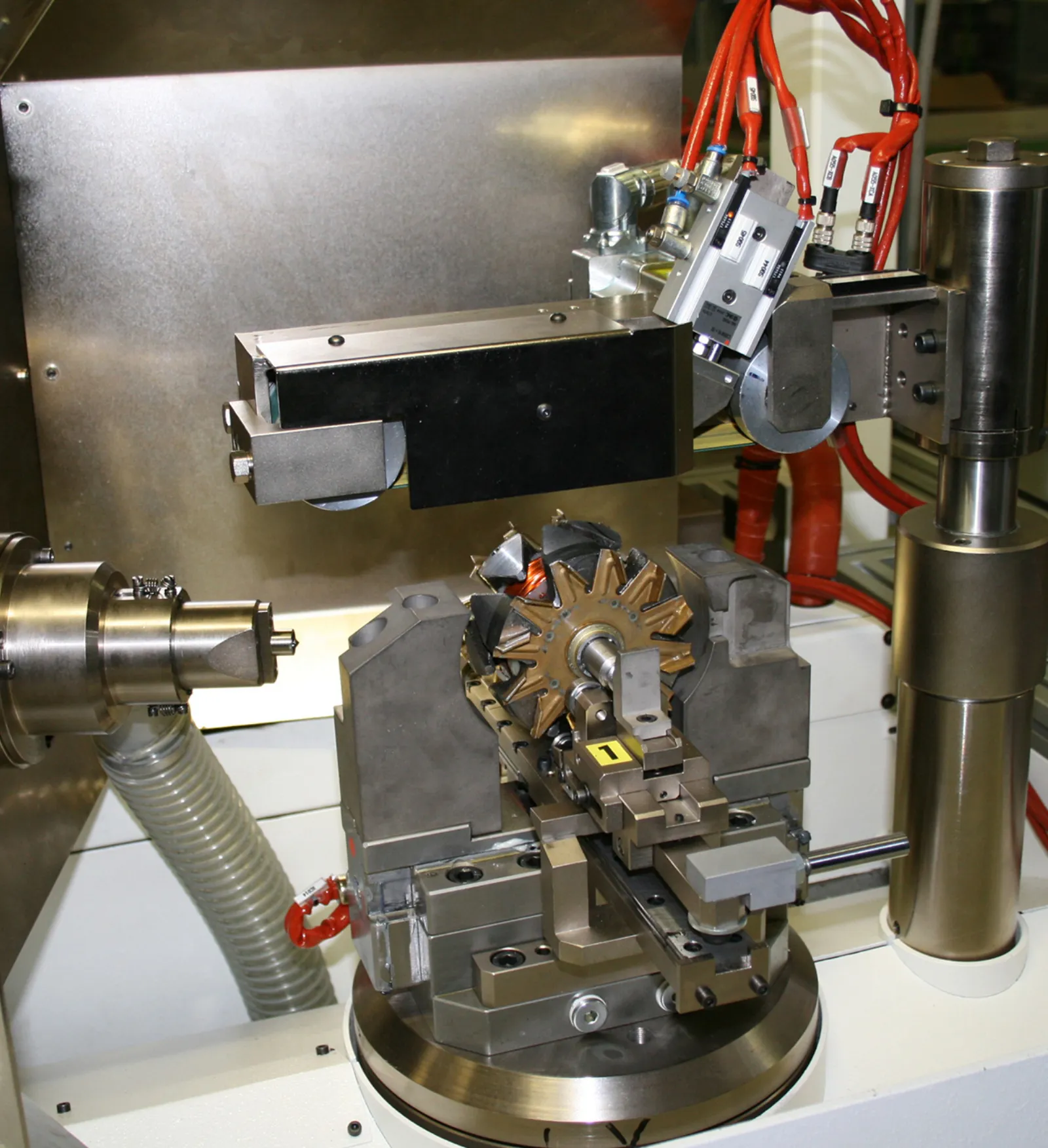

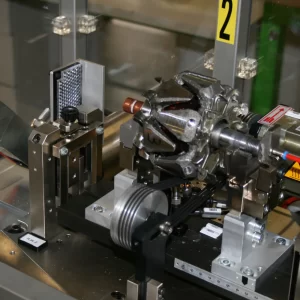

This dynamic semi-automatic balancing machine is designed for balancing rotors of automotive alternators, brushless motors, and similar rotating components on two planes. The unbalance correction is carried out automatically using two axial or inclined drilling operations. The machine offers a high level of flexibility and quick changeovers. While all work phases are fully automatic, loading and unloading of parts are performed manually.

Categories:Balancing Machines, General purpose, Semi-automatic balancing machine Tags:Balancing machinesBuilding TechnologyIndustrial electric motorsRotors for water pumps
  • ADVANTAGES
  • TECHNICAL FEATURES
  • DATASHEET
  • REQUEST ADVICE

ADVANTAGES

  • Automatic set-up
  • Highly skilled operator not required
  • Very easy to use
  • PC based operator interface
  • Easy and fast changeover
  • Diagnostic and preventive maintenance programs
  • High level of repeatability and precision of the unbalance measuring

TECHNICAL FEATURES

Parts max weight:

4 kg

Parts max diameter:

120 mm

Unbalance measure speed:

Programmable

Cycle time:

20 s

Dimensions (LxWxH):

1800 x 1700 x 2000

Weight:

2220 kg

Power supply:

380-480 V three-phase 50/60 Hz

Compressed air:

6 bar

Controlled by:

Industrial PC



Options

Industrial vacuum cleaner for removing drilling chips

SPC software

Teleservice

Calibration master

Audit unit

Marking device

DATASHEET

Balance-Systems-DMK4-A-I_Datasheet

REQUEST ADVICE
