ADVANTAGES
- High measuring precision
- High balancing precision.
- User friendly.
- Quick and precise changeover by preset mechanical stops.

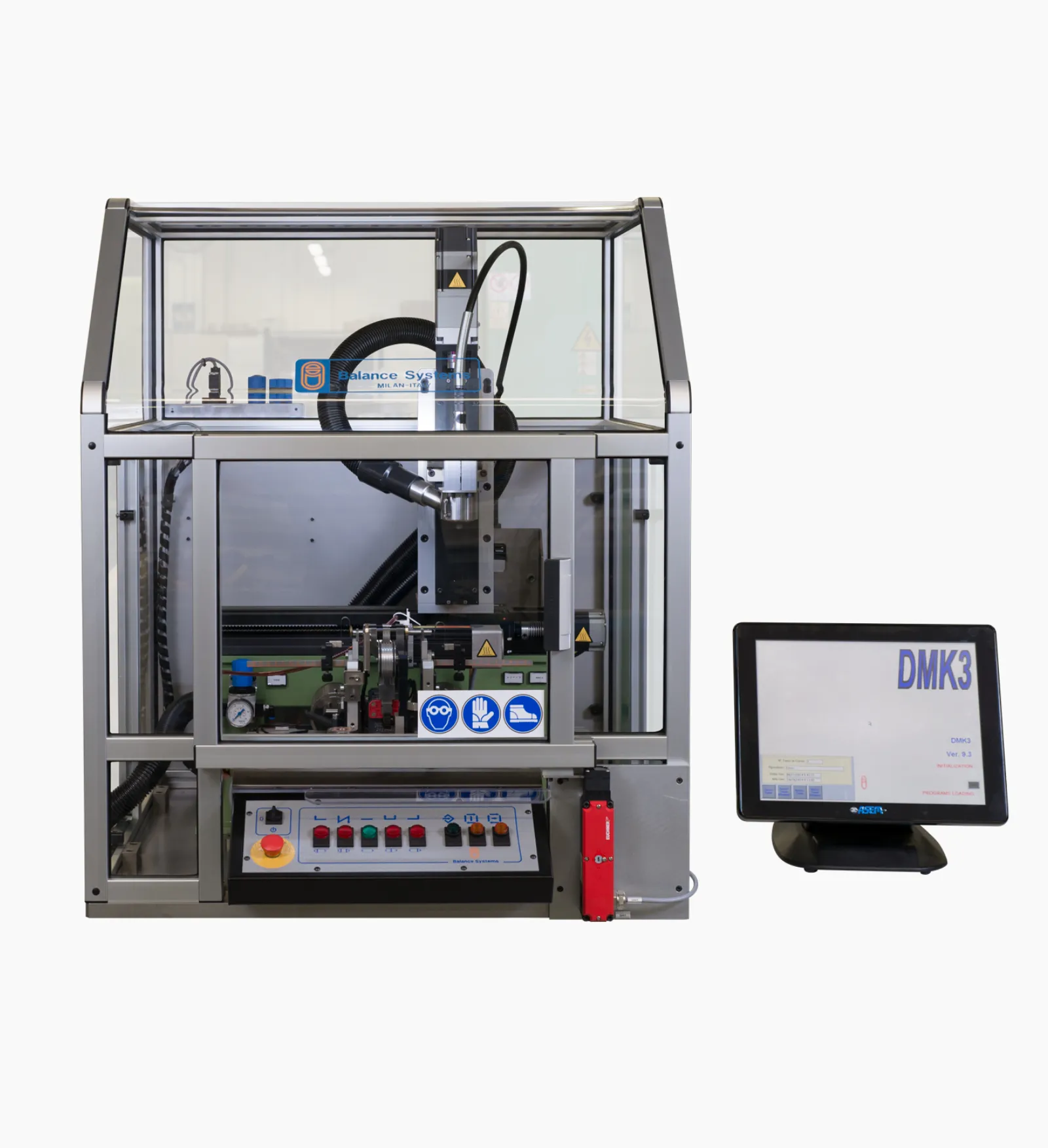

DMK3

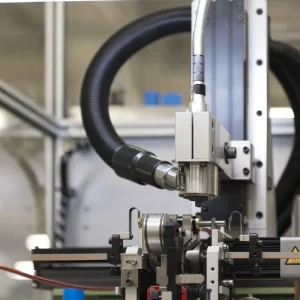

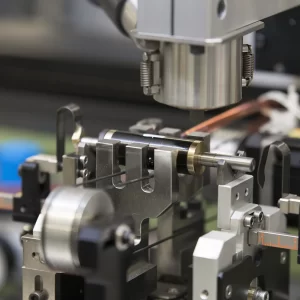

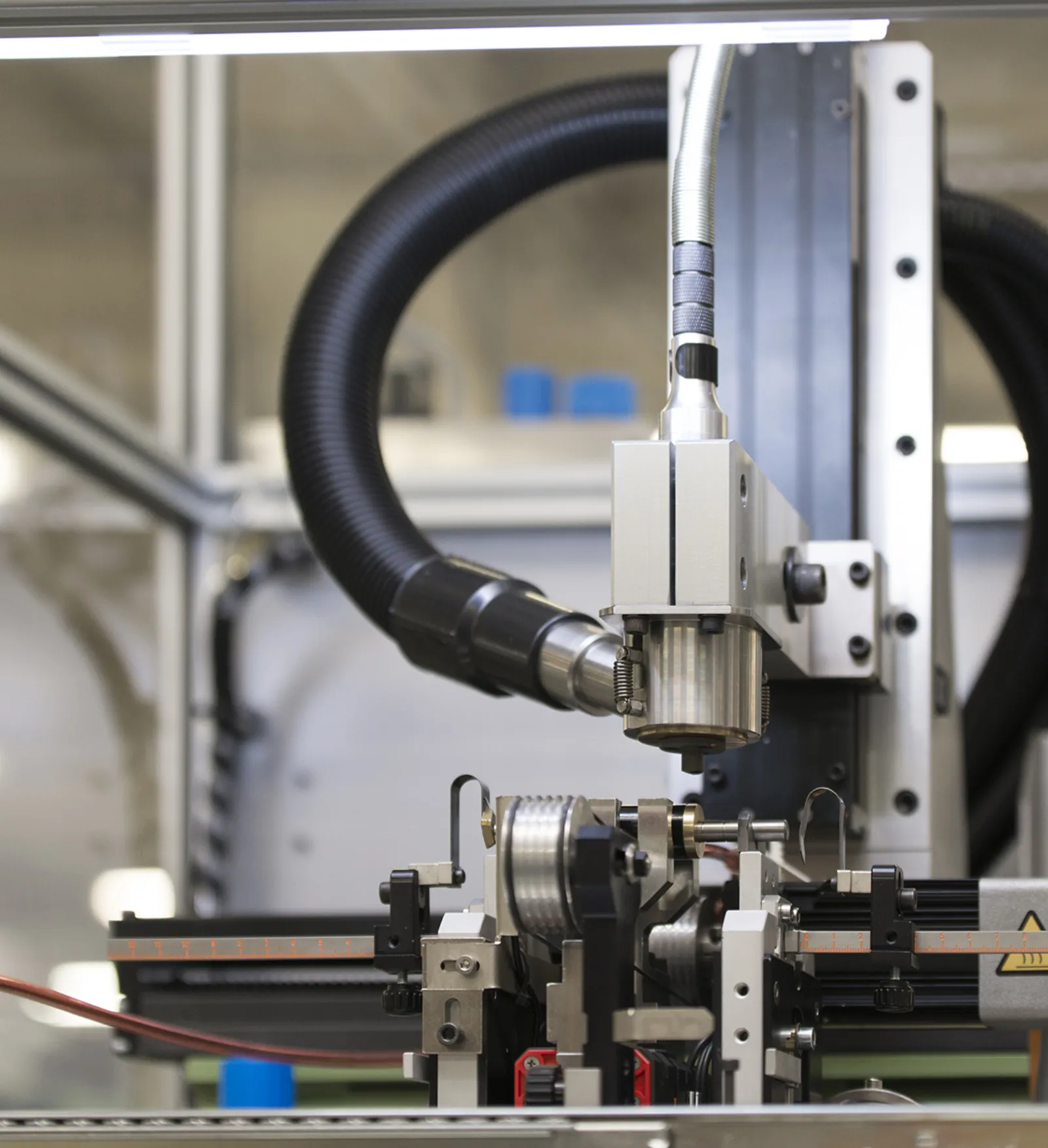

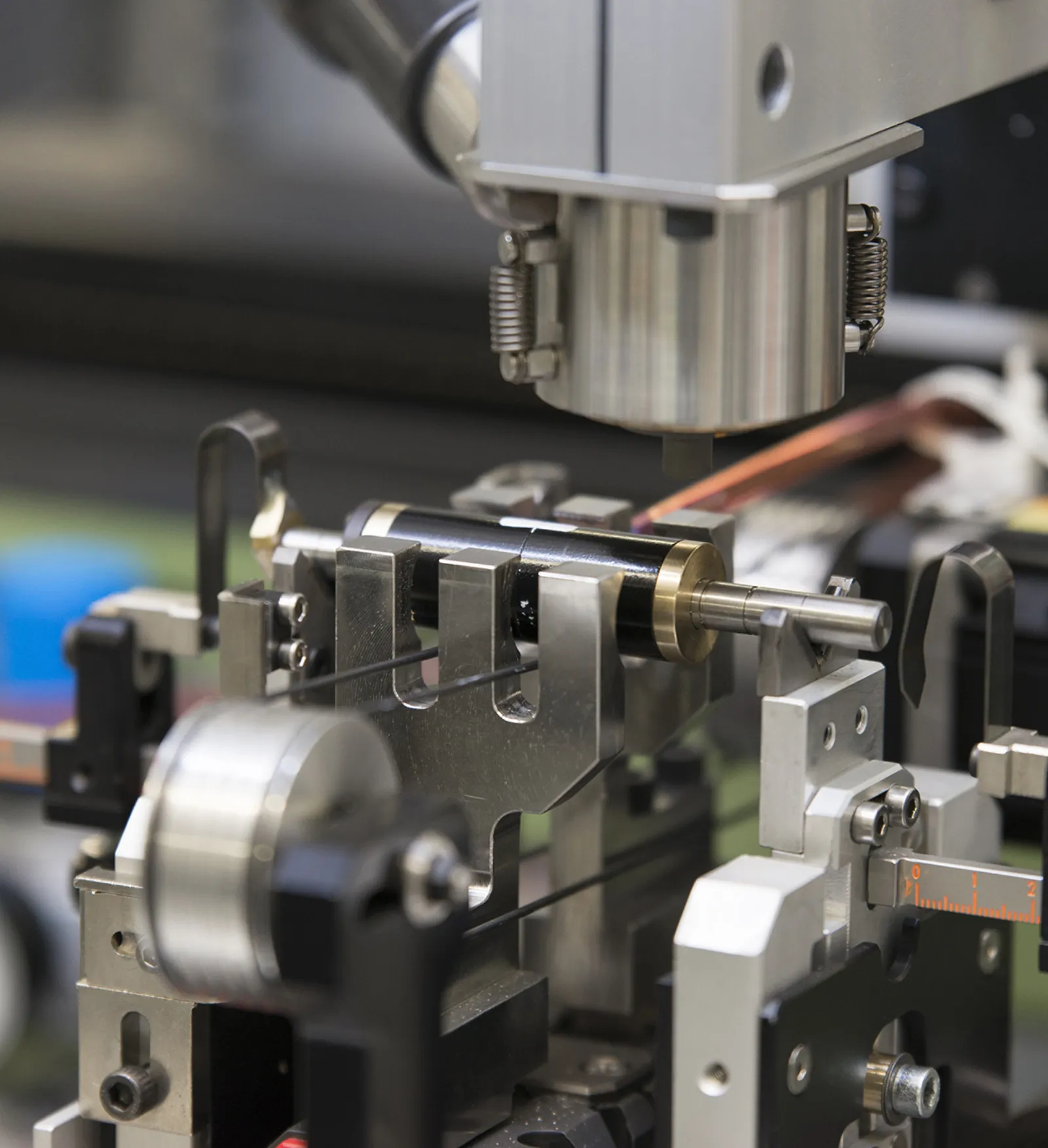

Semi-automatic balancing machine for small rotors weighing up to 0.5 kg. Material removal is carried out fully automatically on two planes (dynamic). Unbalance is corrected by removing material from the lateral rings through radial drilling. Manual loading and unloading.
TECHNICAL FEATURES
|
Parts max weight: |
0.5 kg |
|
Parts max diameter: |
40 mm |
|
Unbalance measure speed: |
Programmable |
|
Cycle time: |
40 s |
|
Dimensions (LxWxH): |
950 x 1700 x 1900 mm |
|
Weight: |
340 kg |
|
Power supply: |
120-240 V three-phase 50/60 Hz |
|
Compressed air: |
6 bar |
|

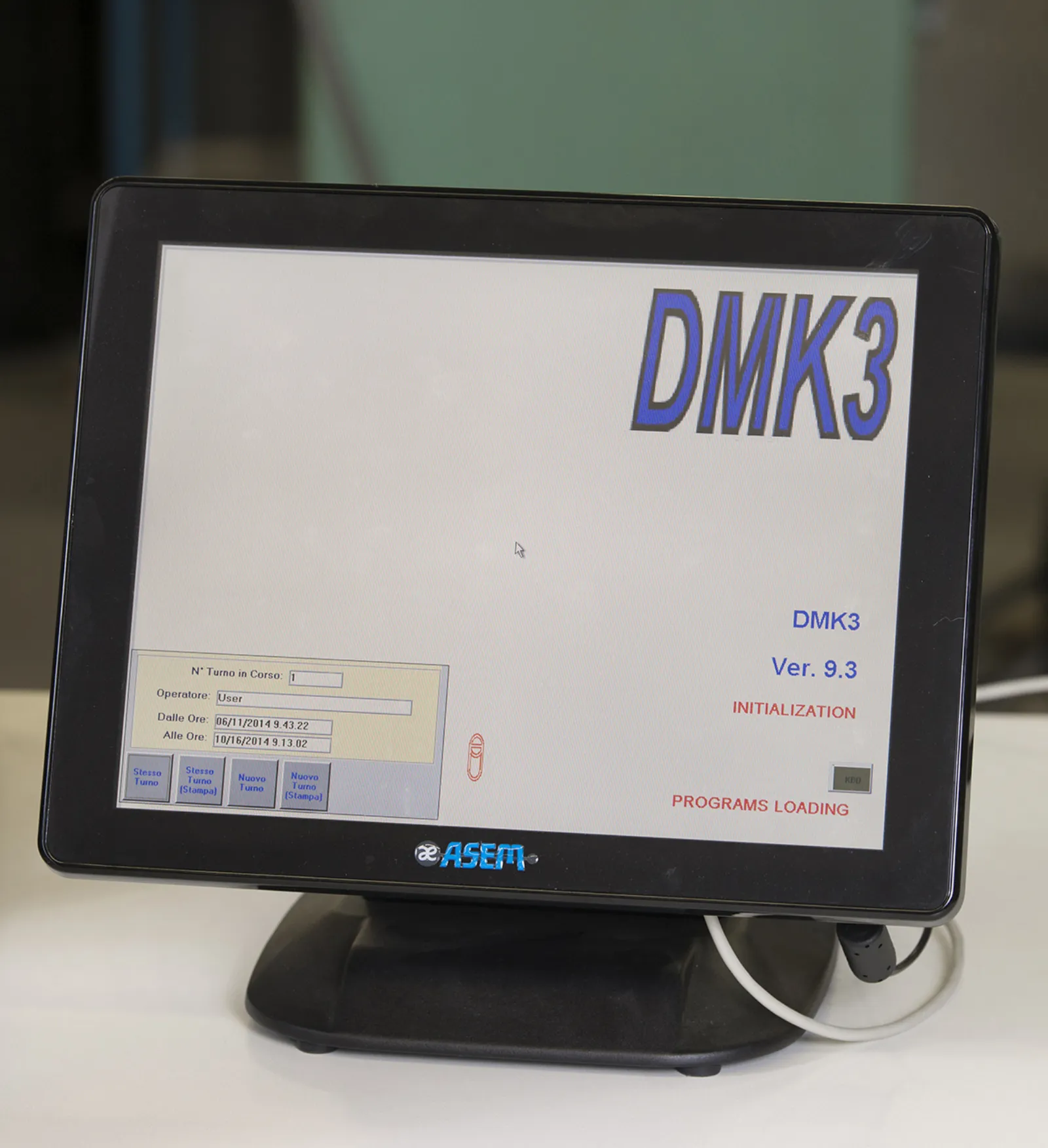

Controlled by: |
Industrial PC |
|
Options |
|
Industrial vacuum cleaner for removing drilling chips |
|
SPC software |
|
Teleservice |
|
Calibration master |
