FEATURES
- Automatic set-up
- High level of flexibility
- High level of repeatability and precision of the unbalance measuring
- Diagnostic and preventive maintenance program
- Quick changeover
- High level of reliability
- User friendly
BVK4-5-2RA

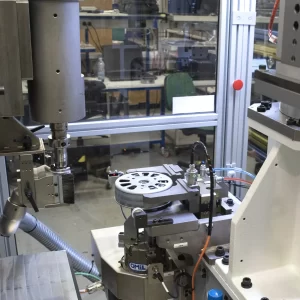

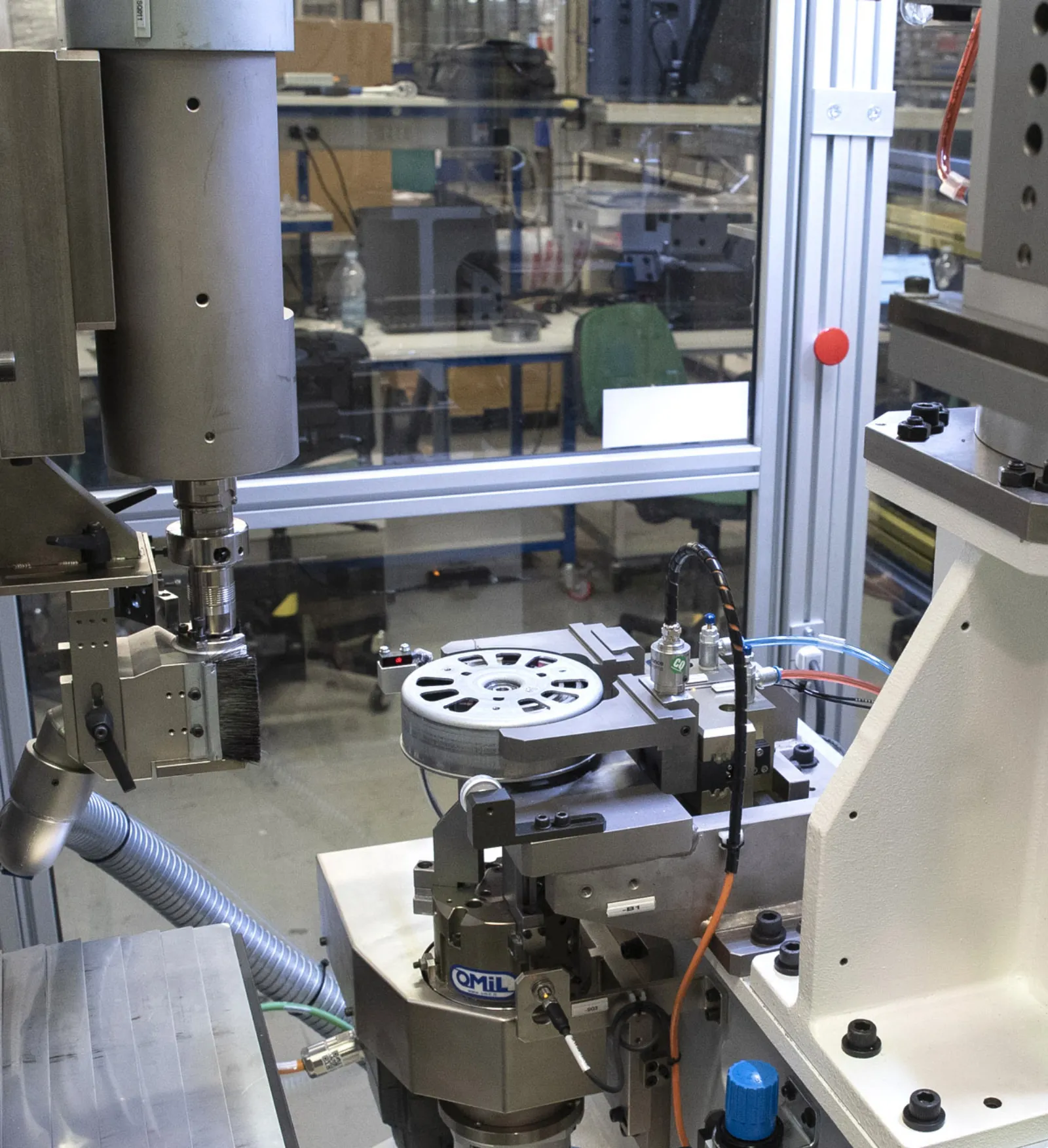

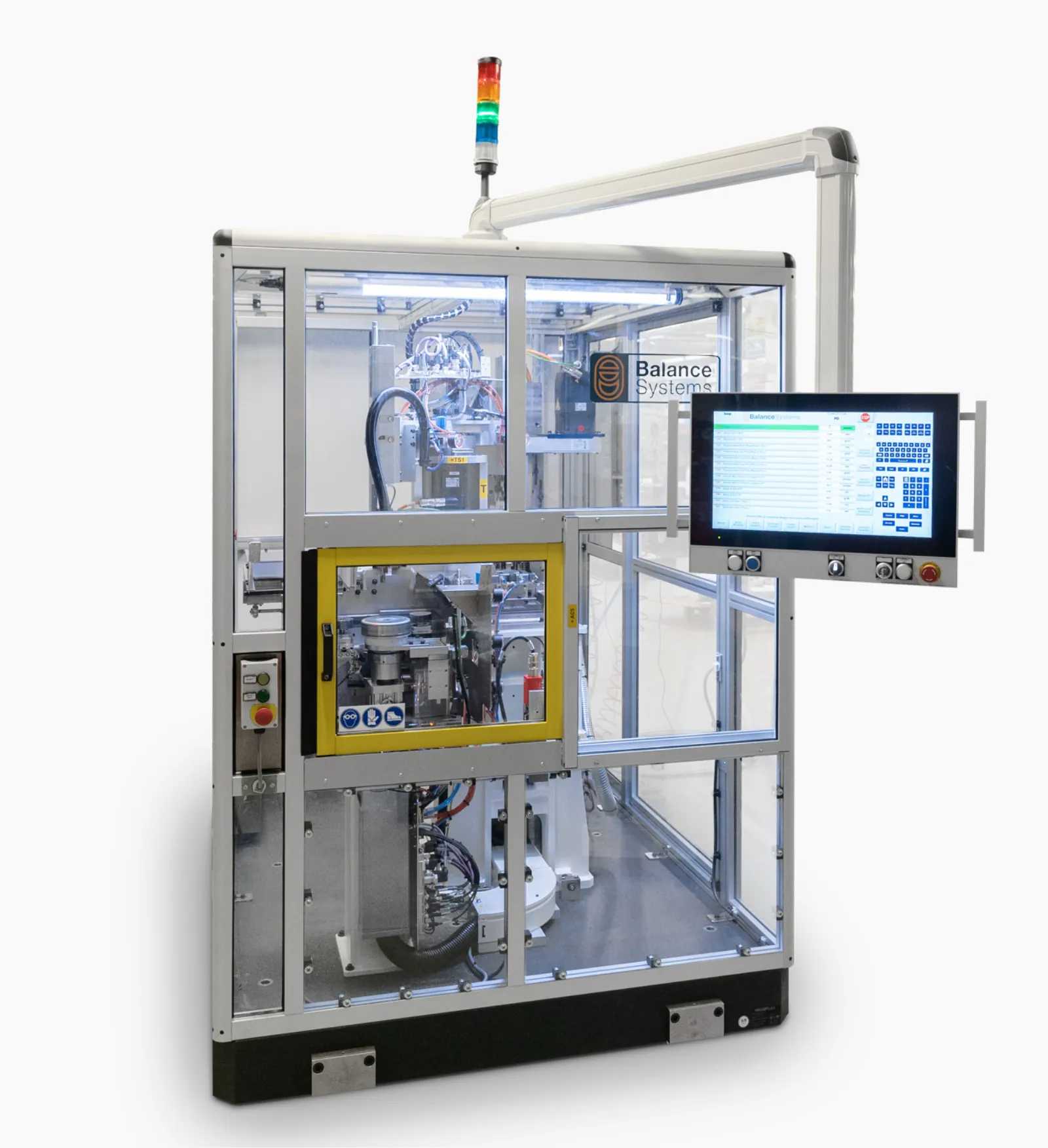

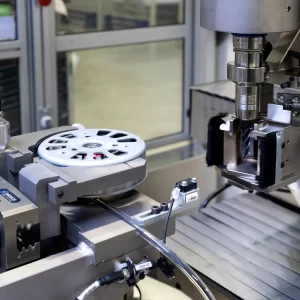

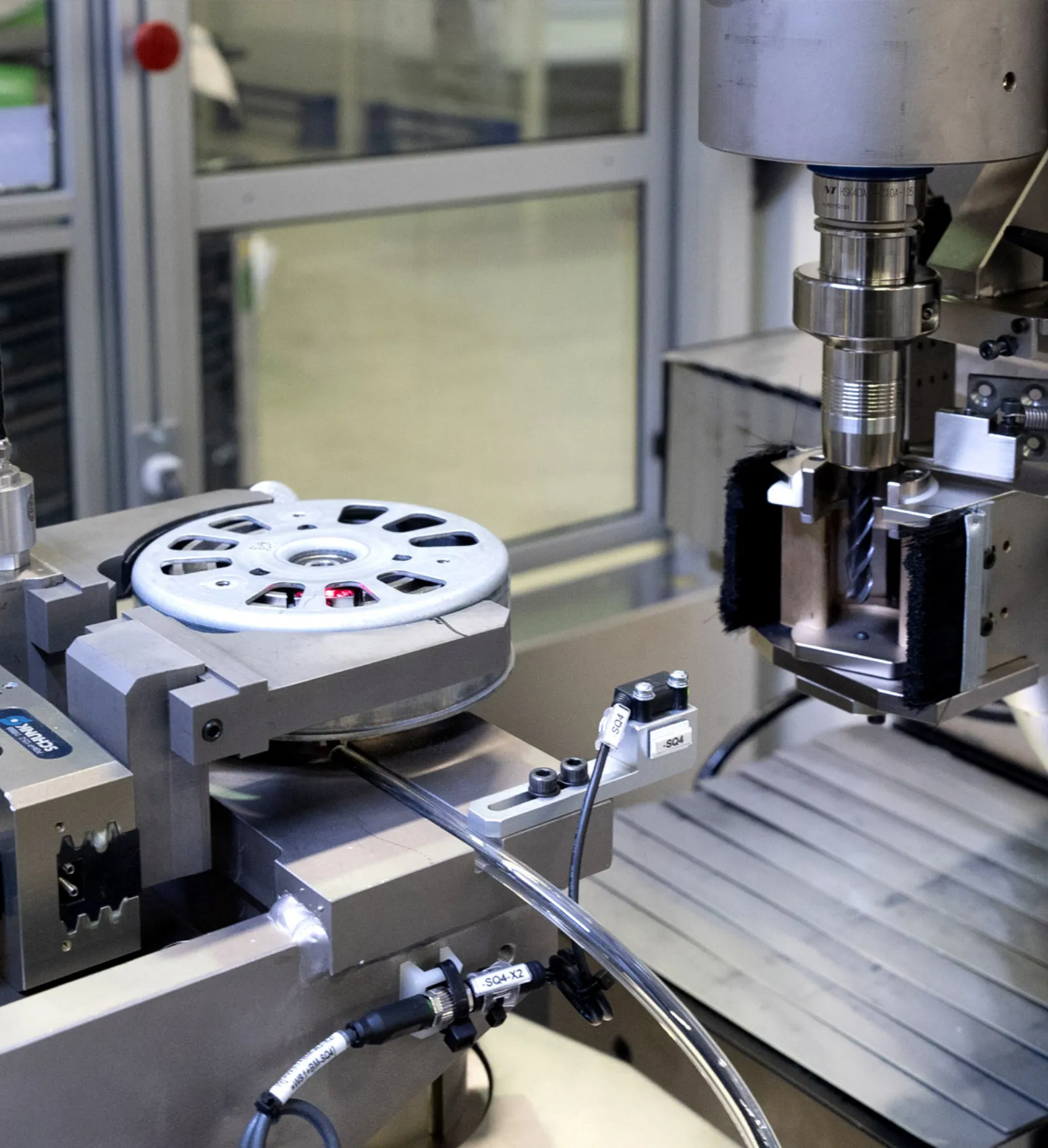

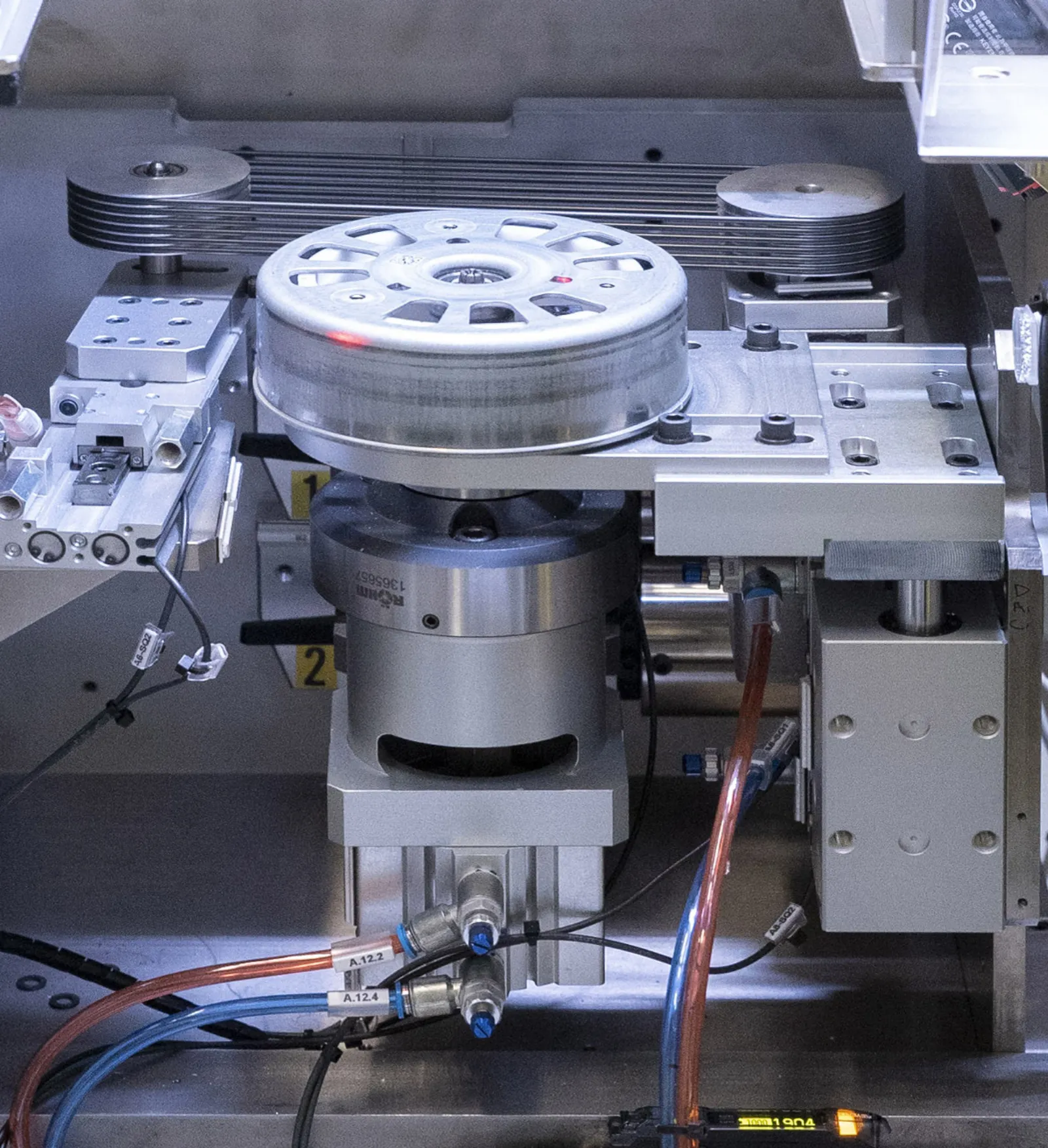

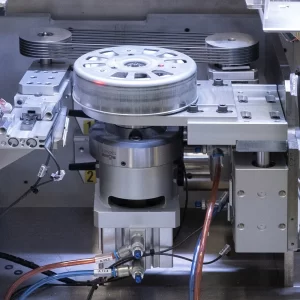

Semi-automatic dynamic balancing machine, specifically developed for balancing rotor brushless bells. The main application is in the automotive industry. The machine is composed of one measuring/audit unit, one milling unit for left and right planes, with part manipulation by the operator. Operator interface via industrial PC. High level of flexibility and quick changeover. Full range of options to meet all customer requirements.
TECHNICAL FEATURES
|
Parts max weight: |
1 kg |
|
Parts max diameter: |
120 mm |
|
Unbalance measure speed: |
Programmable |
|
Cycle time: |
30 s |
|
Dimensions (LxWxH): |
2030 x 1720 x 2200 mm |
|
Weight: |
2000 kg |
|
Power supply: |
380-480 V three-phase 50/60 Hz |
|
Compressed air: |
6 bar |
|
Controlled by: |
Industrial PC |
|
Options |
|
Vacuum system for removing milling chips |
|
SPC/SW |
|
Teleservice |
|
HW & SW for plausibility check of the installed equipment |
|
Calibration master |
