ADVANTAGES
- Compact machine
- Very easy to use
- High level of repeatability
- High balancing precision
- No skilled operator needed
- User friendly

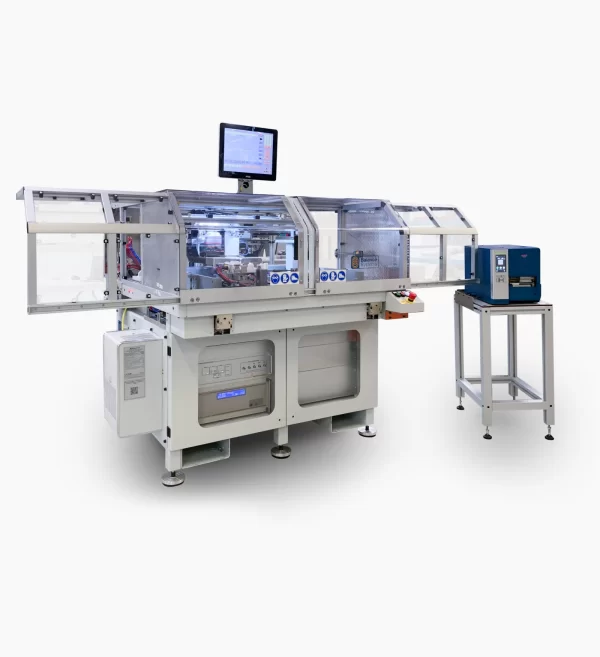

BTK1-V

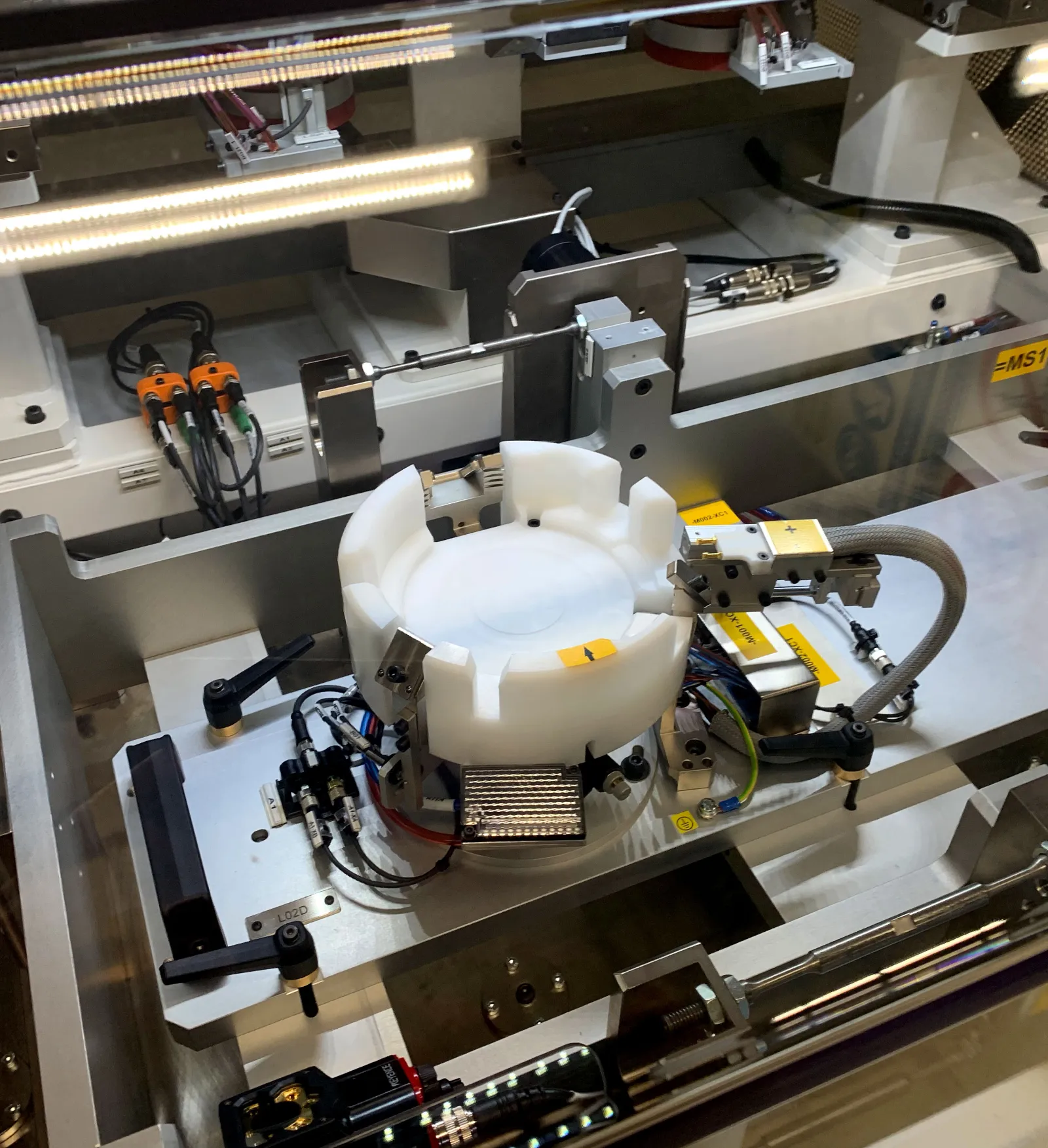

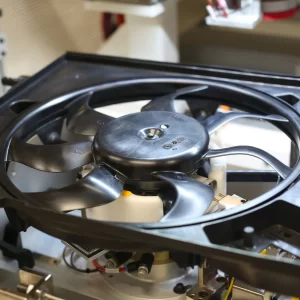

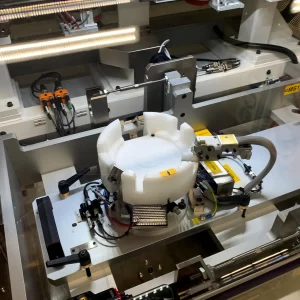

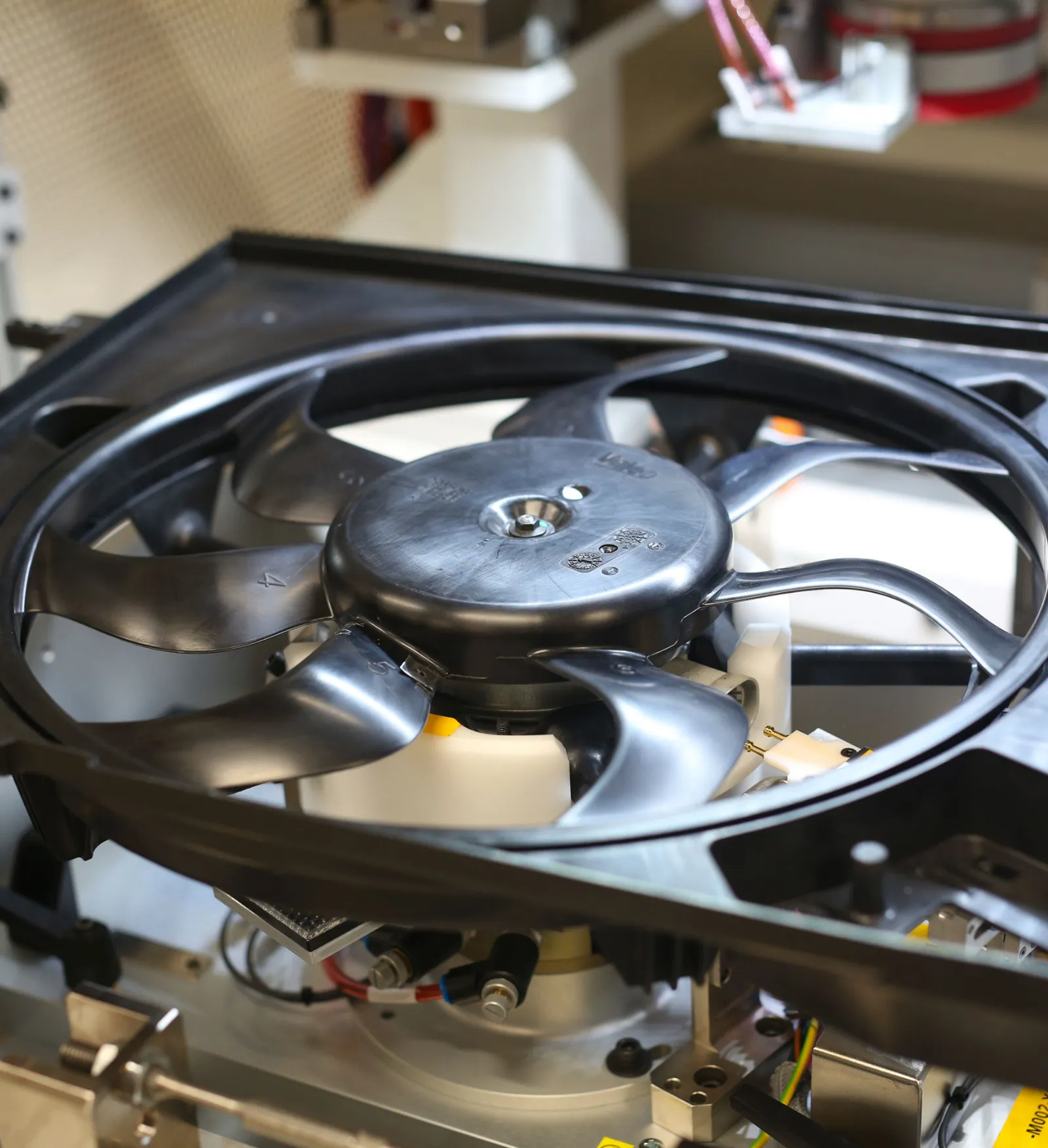

Dynamic balancing machine suitable for balancing all types of radiator cooling fans, with or without conveyor. The BTK1V features a single workstation. Electrical testing of the electric fans under test is available as an option. The entire balancing and testing cycle is menu-driven and easy to use, even for inexperienced operators. The basic version is equipped to process electric fans with a DC motor (without onboard control electronics), but it is prepared to accept all devices required to balance electronically controlled assembled motors or brushless motors.
TECHNICAL FEATURES
|
Max. weight of workable pieces: |
7 kg |
|
Max. fan diameter: |
500 mm |
|
Unbalance speed measurement: |
Programmable |
|
Cycle time: |
13 s (acceleration, unbalance measurement and piece braking) |
|
Dimension (LxPxH): |
2450 x 1620 x 1760 mm |
|
Weight: |
900 kg |
|
Power supply: |
220 V single-phase 50/60 Hz, 1 kW |
|
Compressed air: |
6 bar |
|
Machine management: |

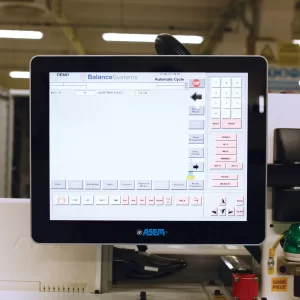

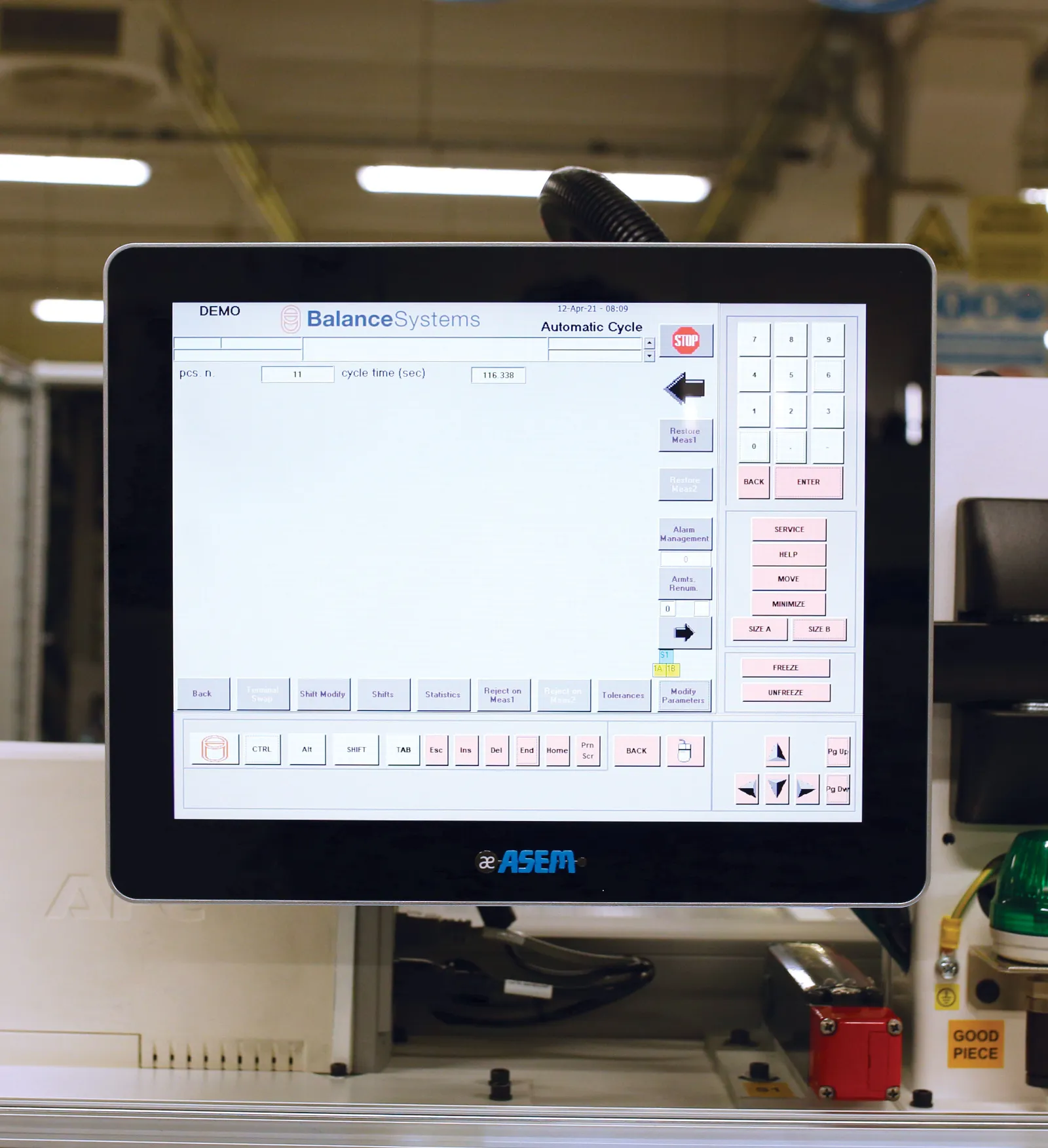

Industrial PC 15’ Touchscreen |
|
Opzioni |
|
Electrical test |
|
Tele-service |
|
Label printing |
|
SPC software |
|
Barcode on data matrix management |
|
Correction weight bowls with display |
|
Quality certificate |
|
Braking device for controlled motors |
