ADVANTAGES
- Compact machine
- Very easy to use
- High level of repeatability
- High balancing precision
- No skilled operator needed
- User friendly

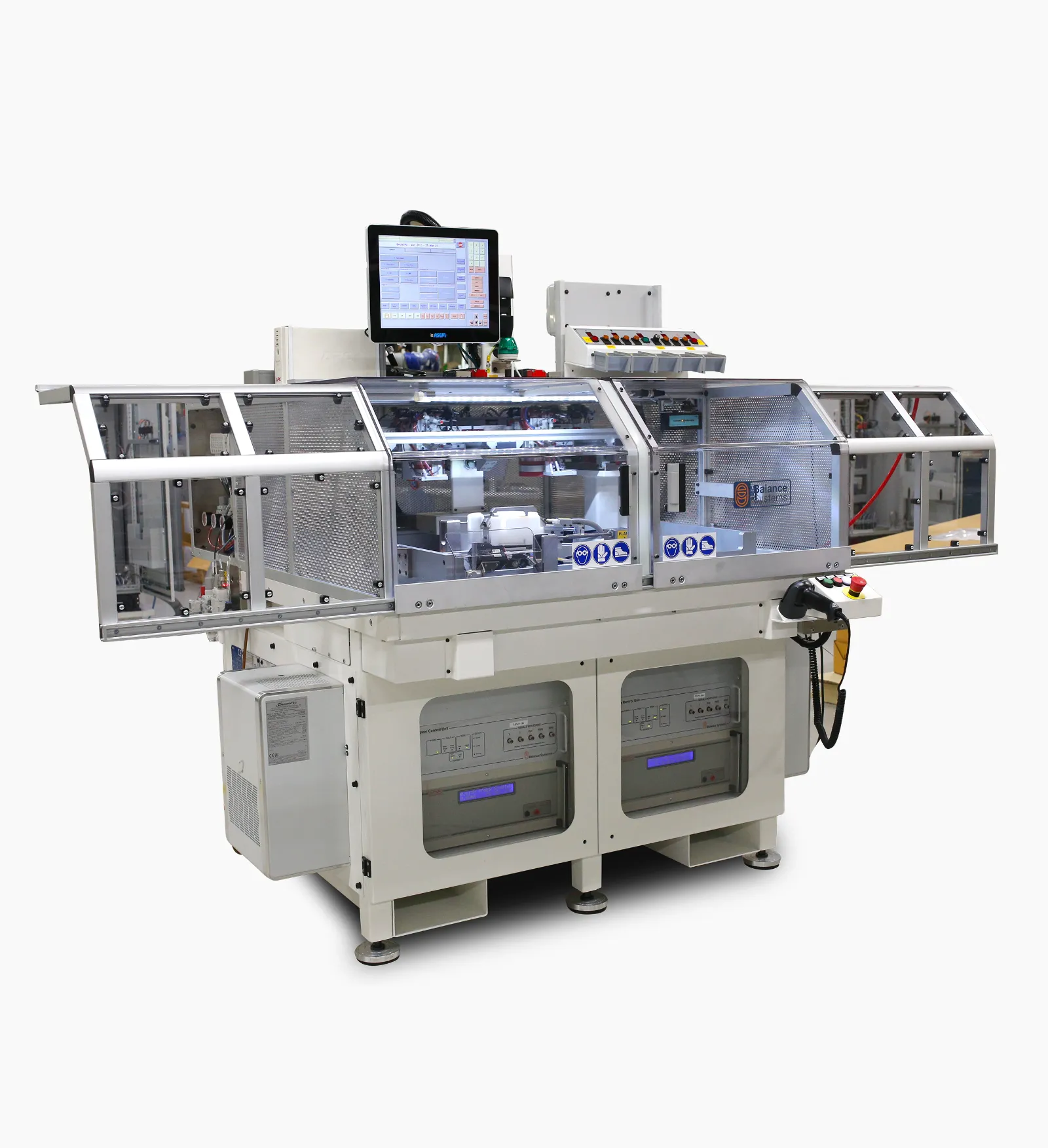

BTK1V-2F

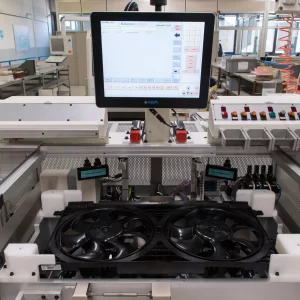

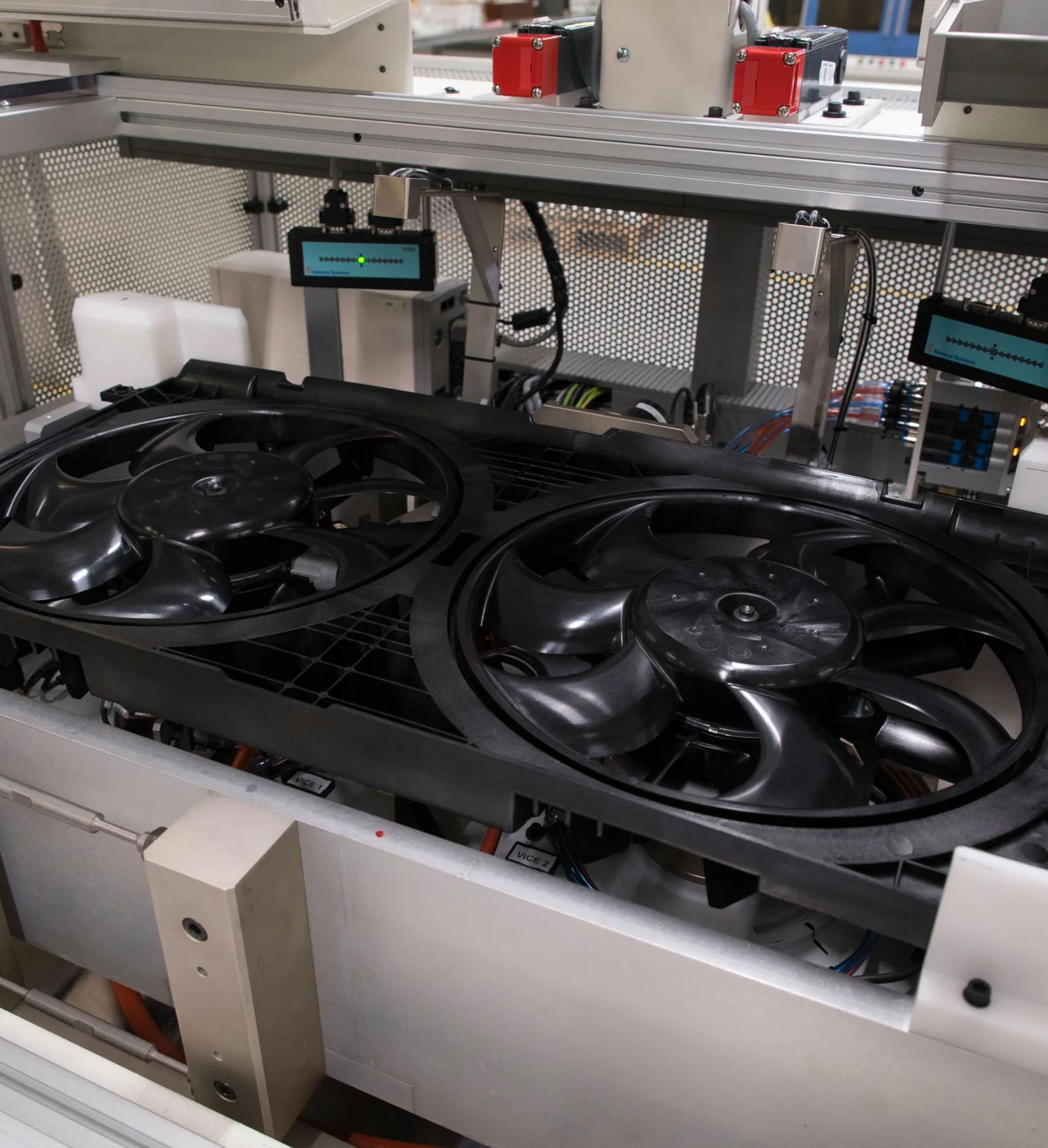

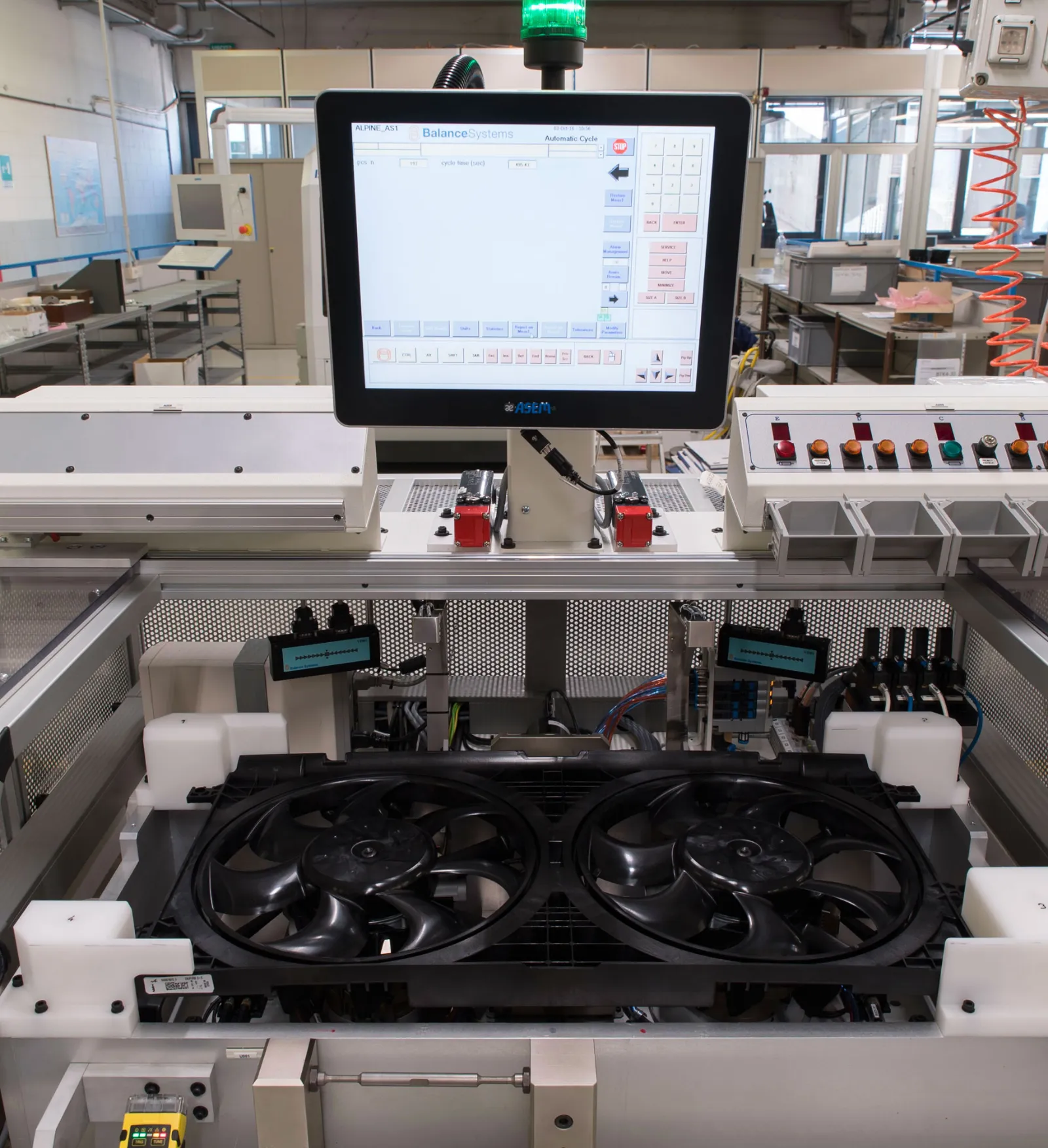

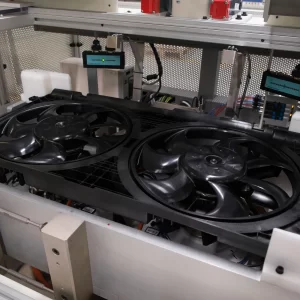

Dynamic balancing machine suitable for balancing double electric fans for automobile cooling radiators and/or similar products. The BTK1V-2F features a single workstation, in which the unbalance of both fans is measured simultaneously. With specific equipment, the machine can also balance single electric fans. As an option, an electrical motor test can be performed. The entire balancing and testing cycle is guided by an easy-to-use menu. The basic version is equipped to process electric fans with a DC motor (without onboard control electronics), but it is prepared to accept all equipment required to balance assembled motors with electronic control or brushless motors.
TECHNICAL FEATURES
|
Max. weight of workable pieces: |
7 kg |
|
Max. fan diameter: |
500 mm |
|
Unbalance speed measurement: |
Programmable |
|
Cycle time: |
13 s (acceleration, unbalance measurement and piece braking) |
|
Dimension (LxPxH): |
2450 x 1620 x 1760 mm |
|
Weight: |
800 kg |
|
Power supply: |
220 V single-phase 50/60 Hz, 1 kW |
|
Compressed air: |
6 bar |
|
Machine management: |
Industrial PC 15’ Touchscreen |
|
Opzioni |
|
Electrical test |
|
Tele-service |
|
Label printing |
|
SPC software |
|
Printer |
|
Barcode or data matrix management |
|

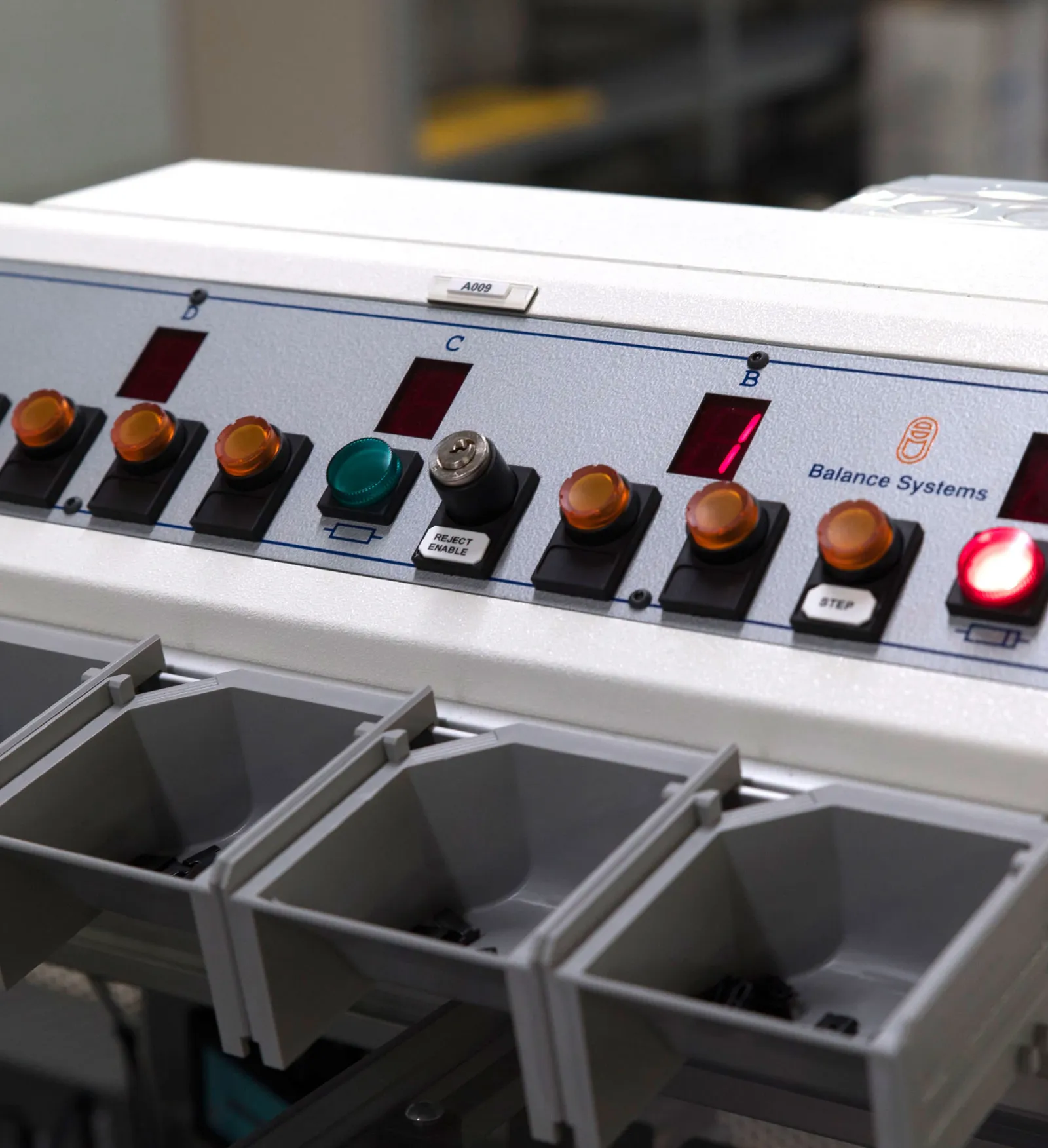

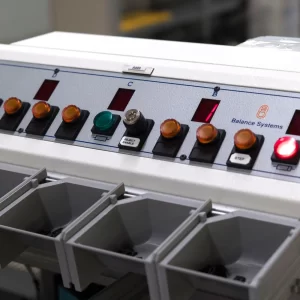

Correction weight bowls with display |
|
Automatic electrical connection |
|
Quality certificate |
