ADVANTAGES
- Compact machine
- User friendly program
- Very easy to use
- High level of repeatability
- High balancing precision
- No skilled operator needed

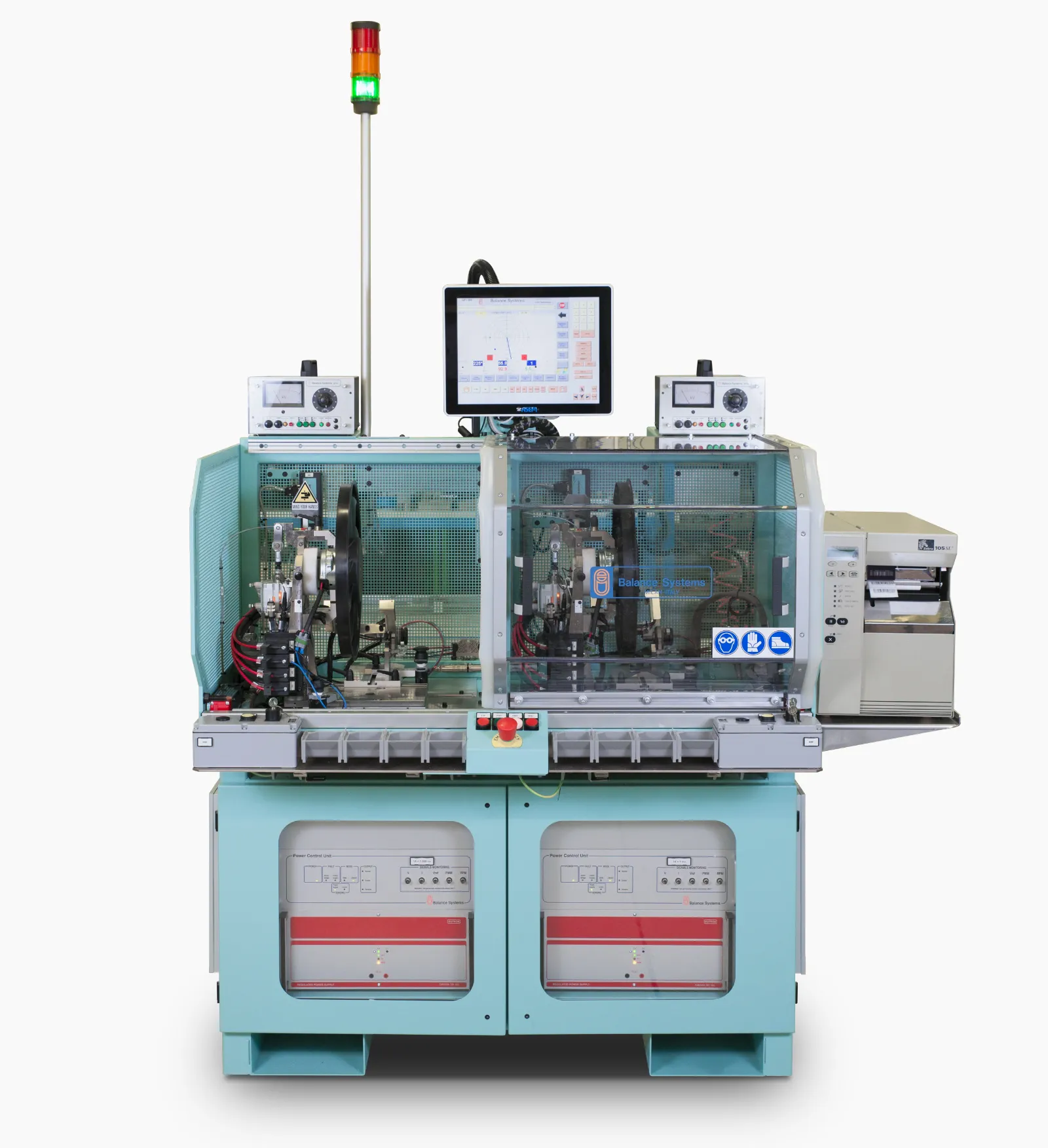

BTK1B-2S

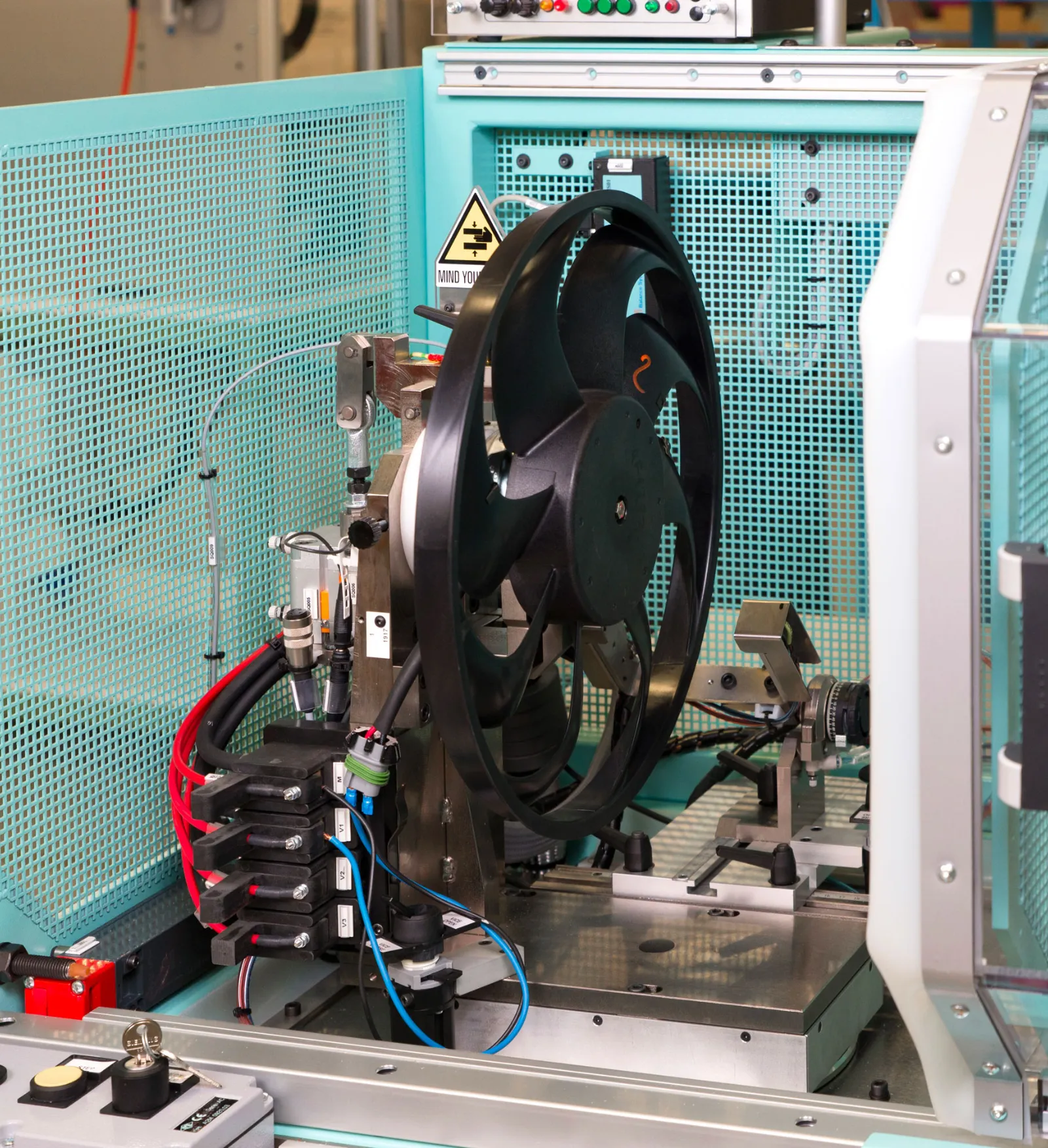

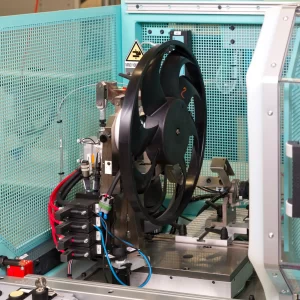

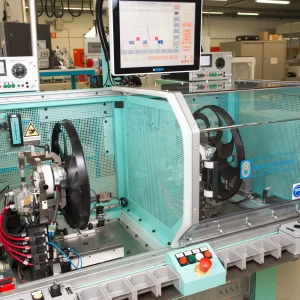

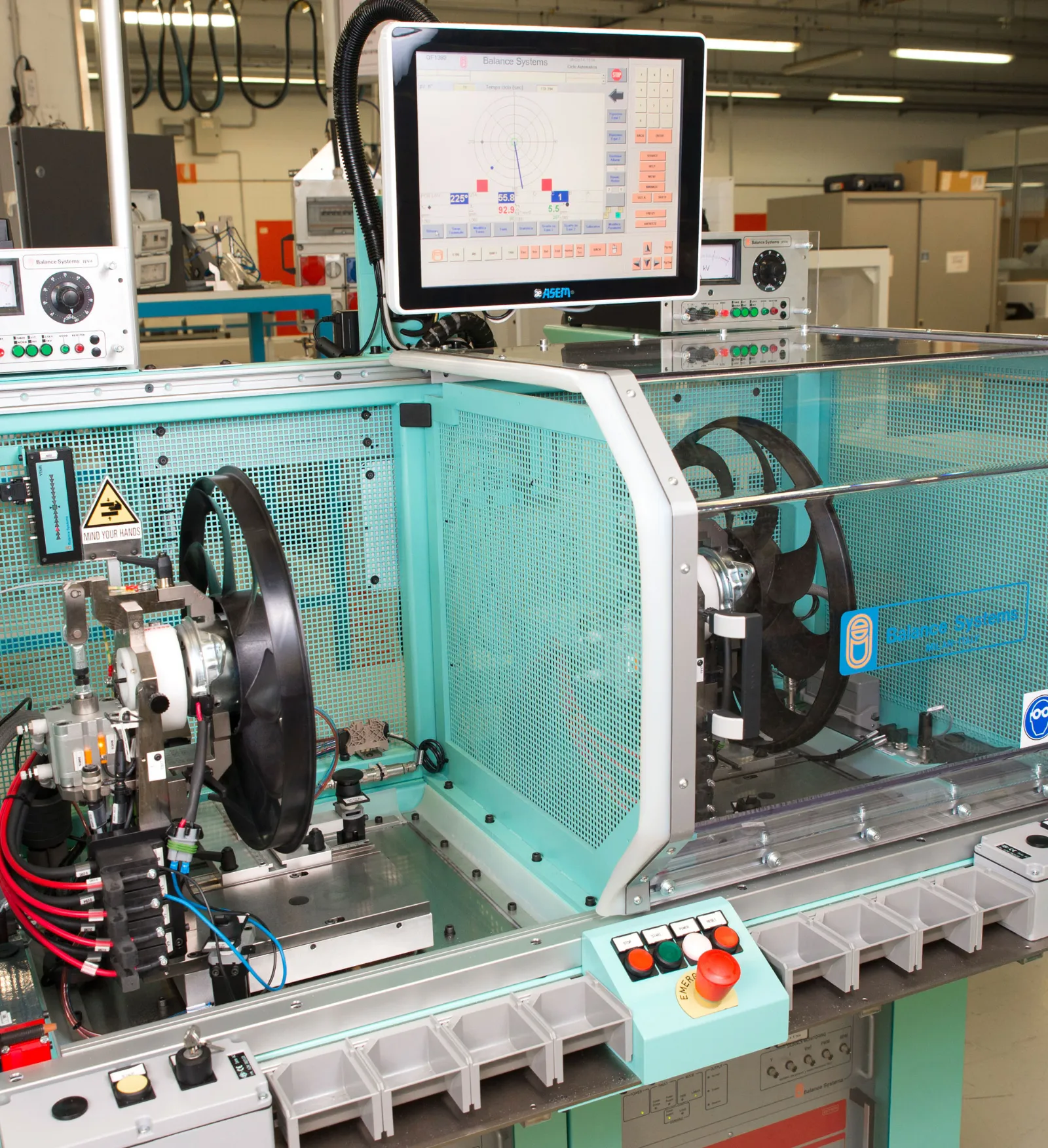

Dynamic balancing machine with two workstations. Suitable for any type of electric fan. Recommended for balancing and performing functional tests of radiator cooling fans in the automotive industry. As an option, it is possible to carry out electrical testing of the electric fans under test. The entire balancing and test cycle is menu-driven and easy to use, even for inexperienced operators. The basic version is equipped to process electric fans with a DC motor, without control electronics. The machine can also be easily equipped to process electric fans with control electronics.
TECHNICAL FEATURES
|
Max. weight of workable pieces: |
3 kg |
|
Max. fan diameter: |
500 mm |
|
Unbalance speed measurement: |
Programmable |
|
Cycle time: |
10 s (acceleration, unbalance measurement and piece braking) |
|
Dimension (LxPxH): |
1400 x 1300 x 1750 mm |
|
Weight: |
600 kg |
|
Power supply: |
220 V single-phase 50/60 Hz, 1 kW |
|
Compressed air: |
6 bar |
|
Machine management: |

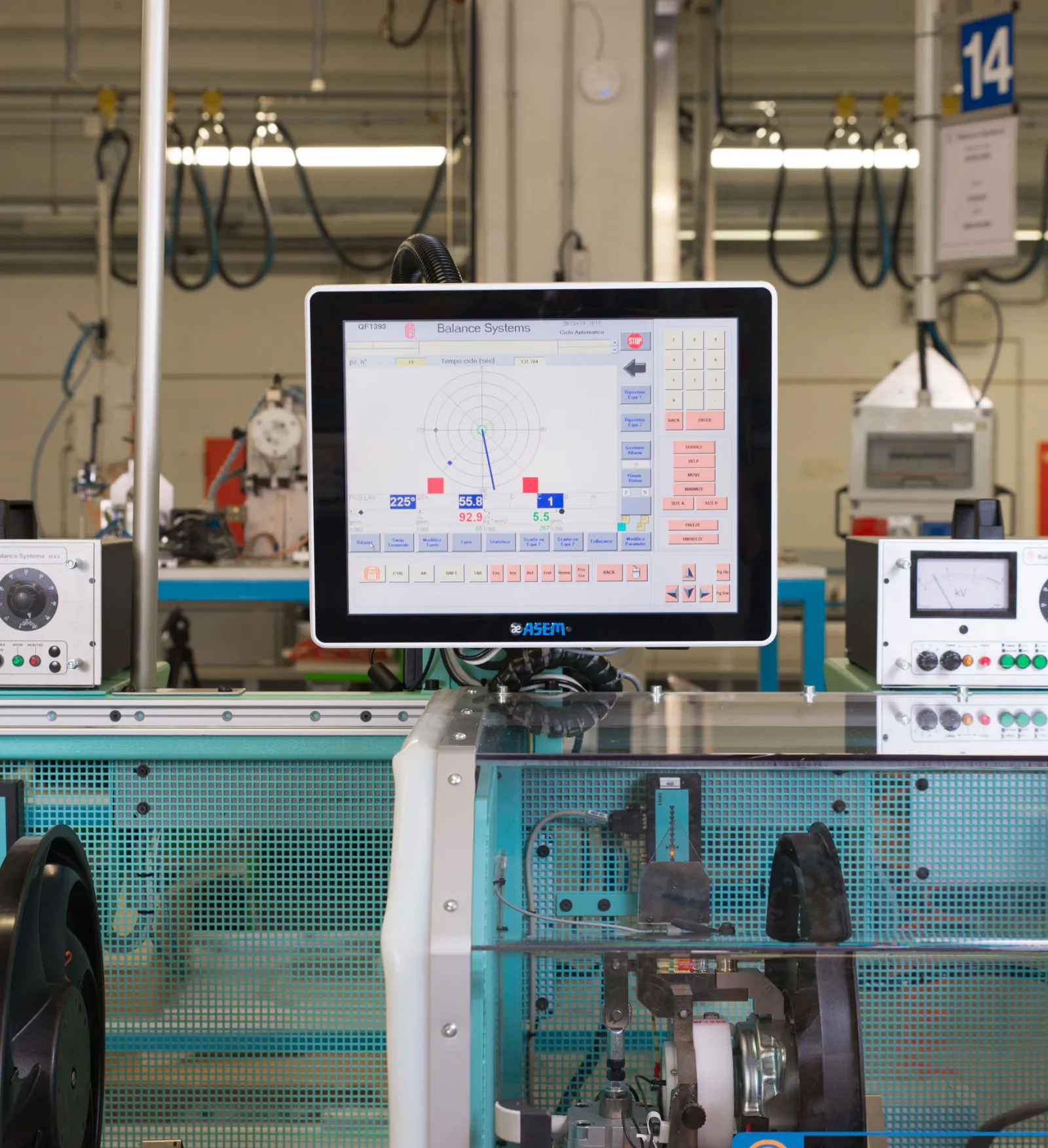

Industrial PC 15’ Touchscreen |
|
Options |
|
Electrical tests |
|
Tele-service |
|
Label printing |
|
SPC software |
|
Printer |
|
Barcode or data matrix management |
|
Correction weight bowls with display |
