ADVANTAGES
- Compact machine
- Very easy to use
- High level of repeatability
- High balancing precision
- No skilled operator needed
- User friendly
BTK1-2S

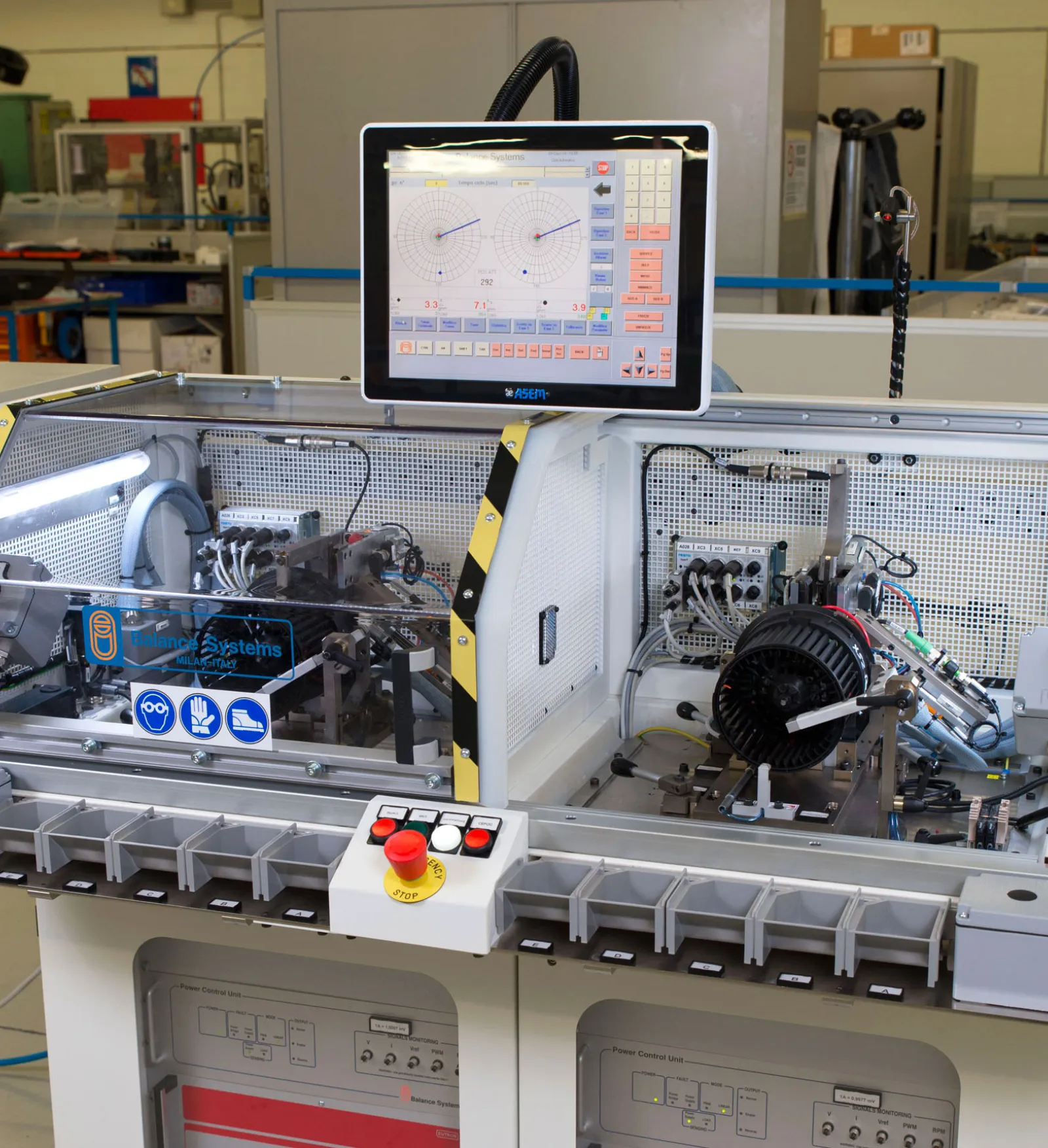

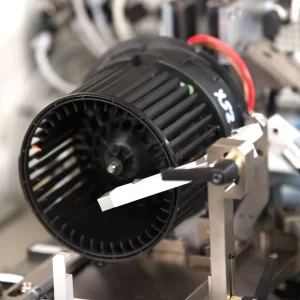

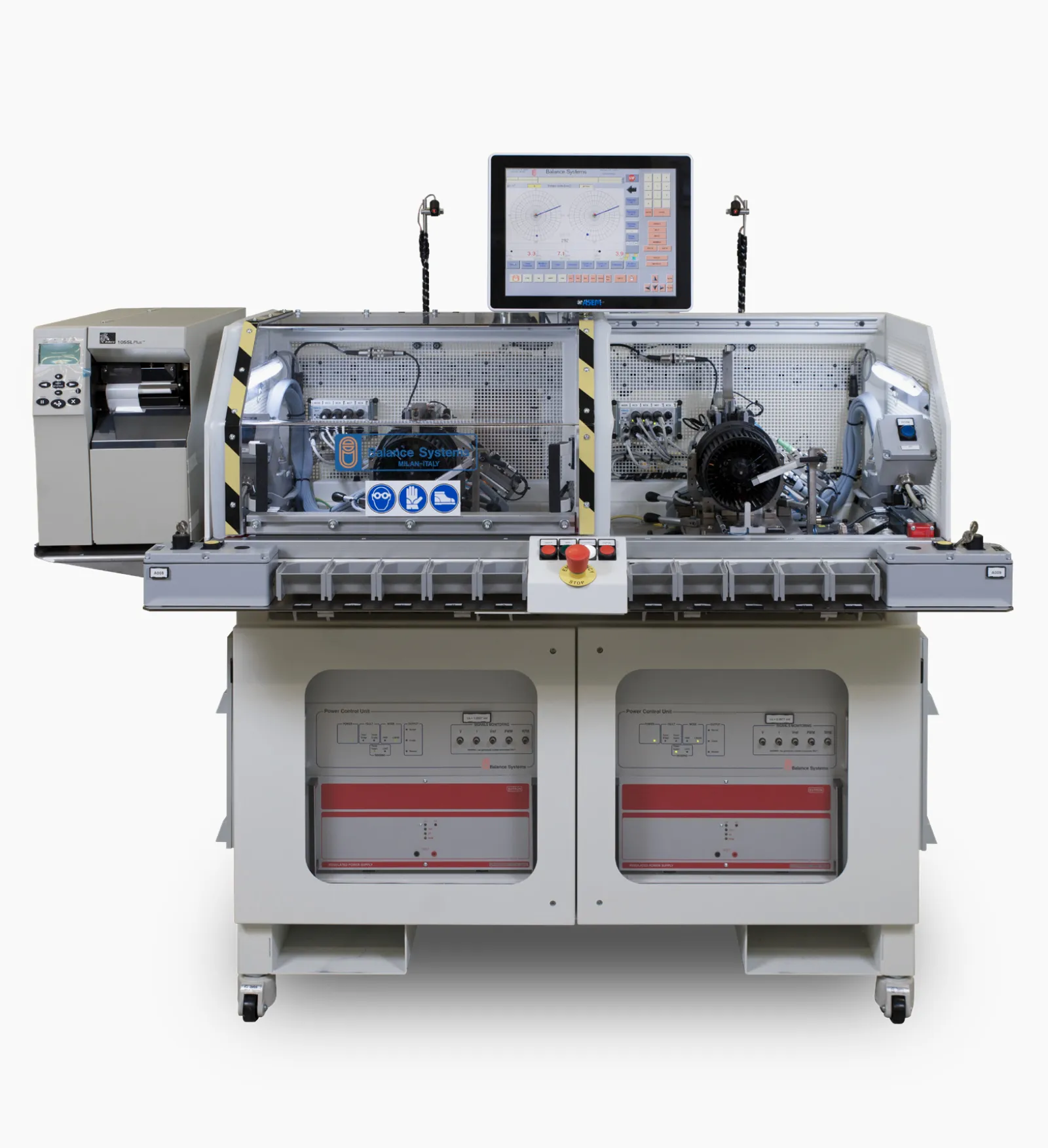

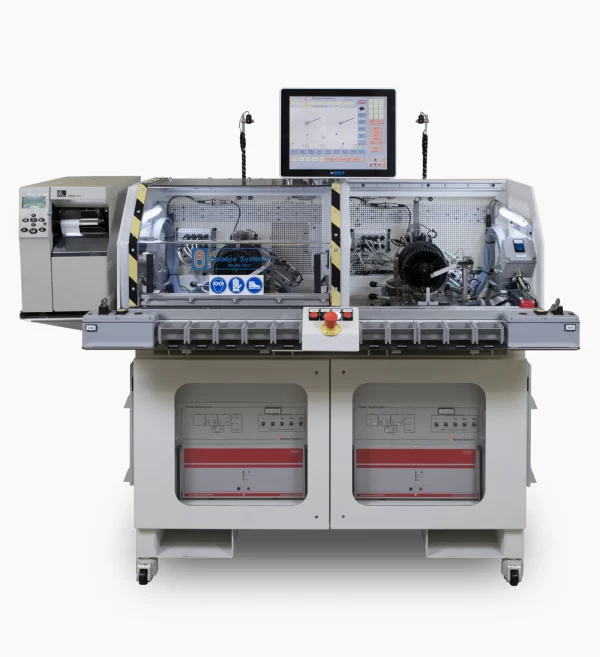

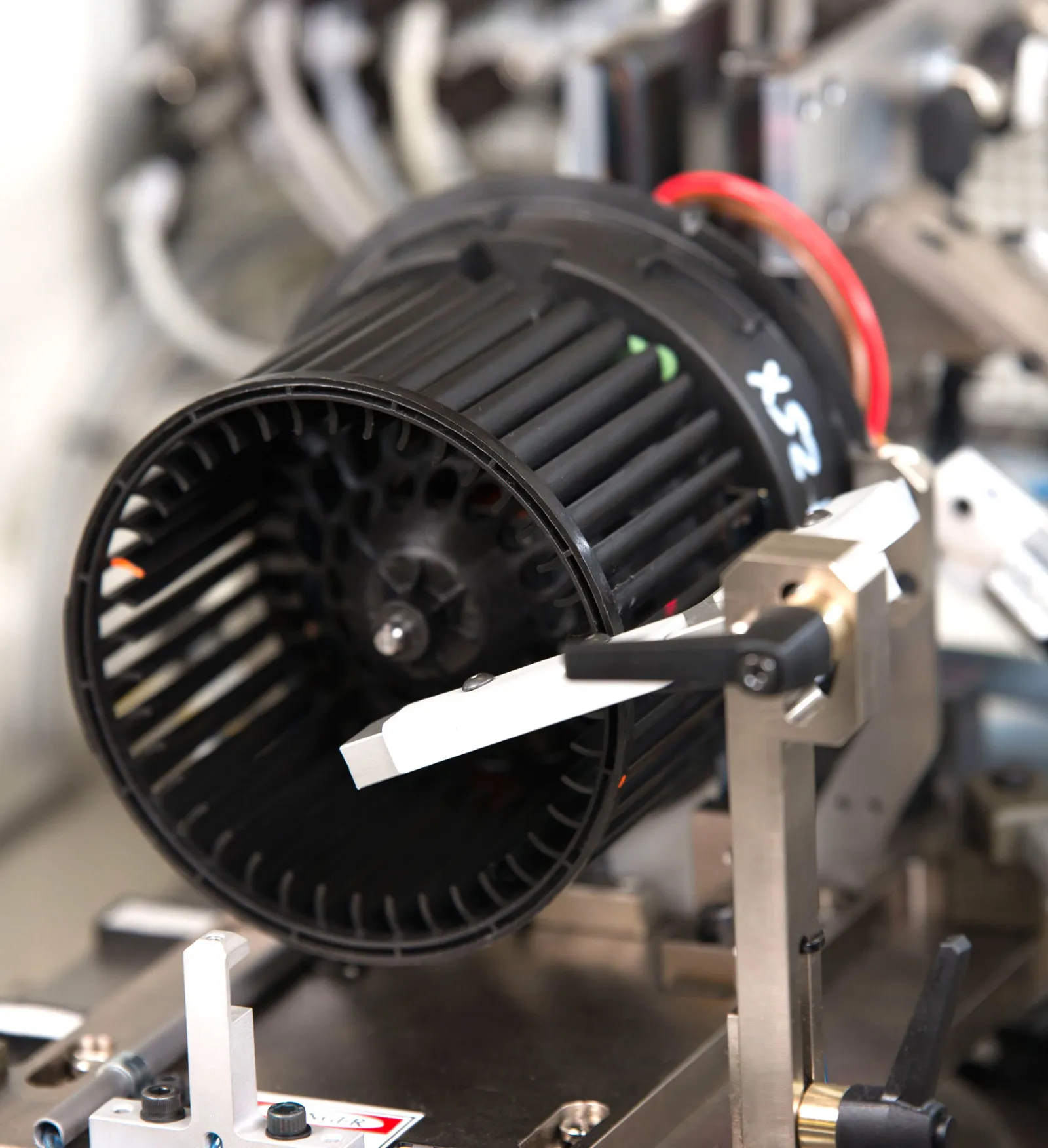

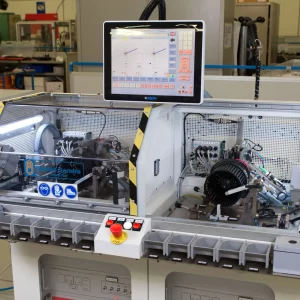

Dynamic balancing machine, can be supplied with one or two work stations, suitable for any type of electric fan. Recommended for balancing and functional testing of electric fans for car interior ventilation and air conditioning. As an option it is possible to carry out electrical testing of the electric fans under test, the entire balancing and test cycle is menu-driven and easy to use, even for inexperienced operators. The basic version is equipped to process electric fans with DC motor, without control electronics. The machine can also be easily equipped to process electric fans with control electronics.
TECHNICAL FEATURES
|
Max. weight of workable pieces: |
3 kg |
|
Max. fan diameter: |
200 mm |
|
Unbalance speed measurement: |
Programmable |
|
Cycle time: |
10 s (acceleration, unbalance measurement and piece braking) |
|
Dimension (LxPxH): |
1400 x 1300 x 1750 mm |
|
Weight: |
5600 kg |
|
Power supply: |
220 V single-phase 50/60 Hz, 1 kW |
|
Compressed air: |
6 bar |
|
Machine management: |

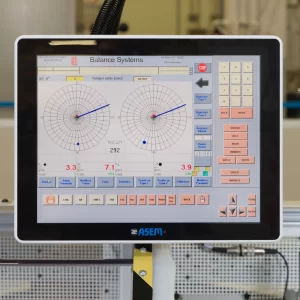

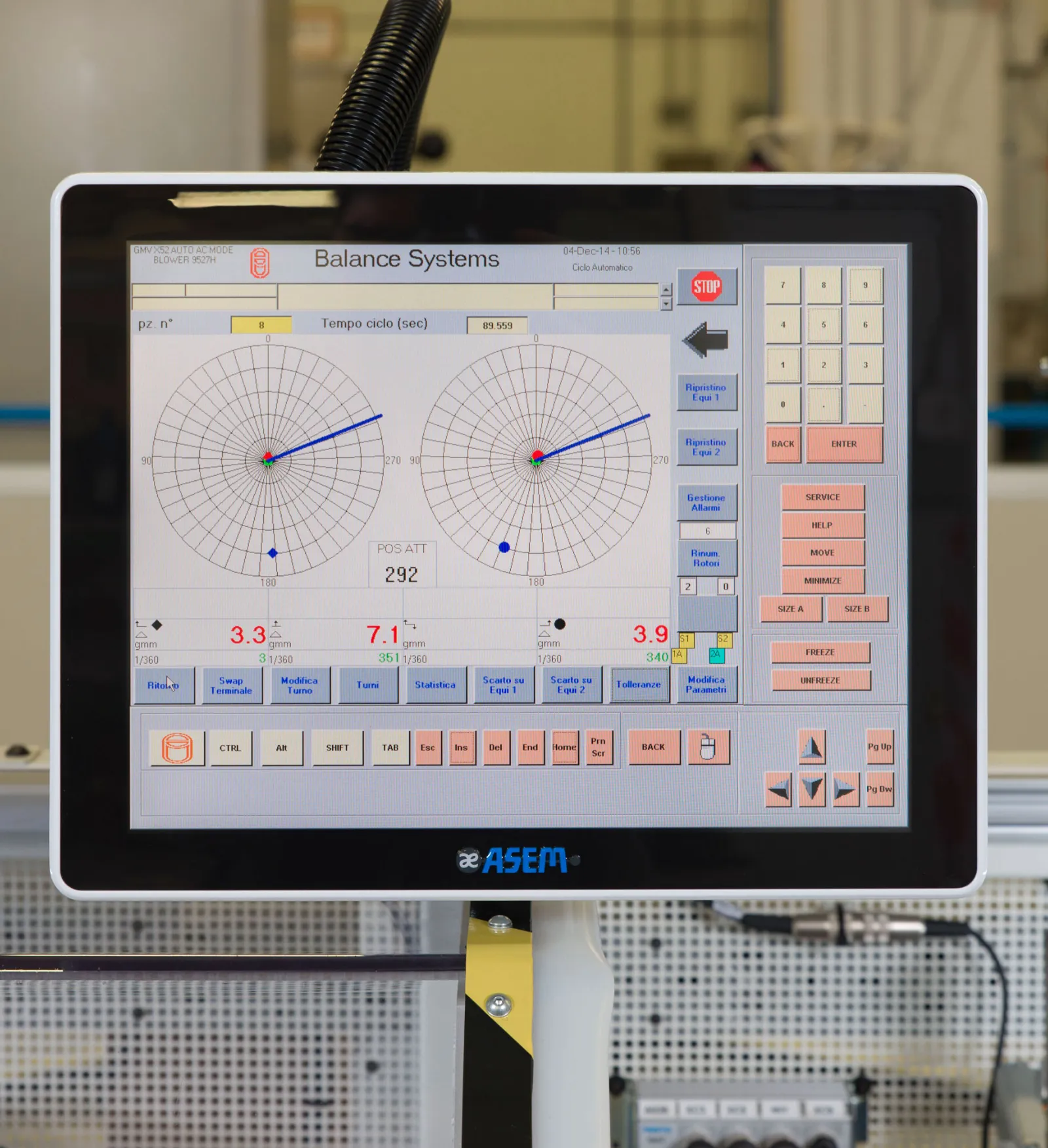

Industrial PC 15’ Touchscreen |
|
Options |
|
Electrical tests |
|
Tele-service |
|
Label printing |
|
SPC software |
|
Printer |
|
Correction weight bowls with display |
