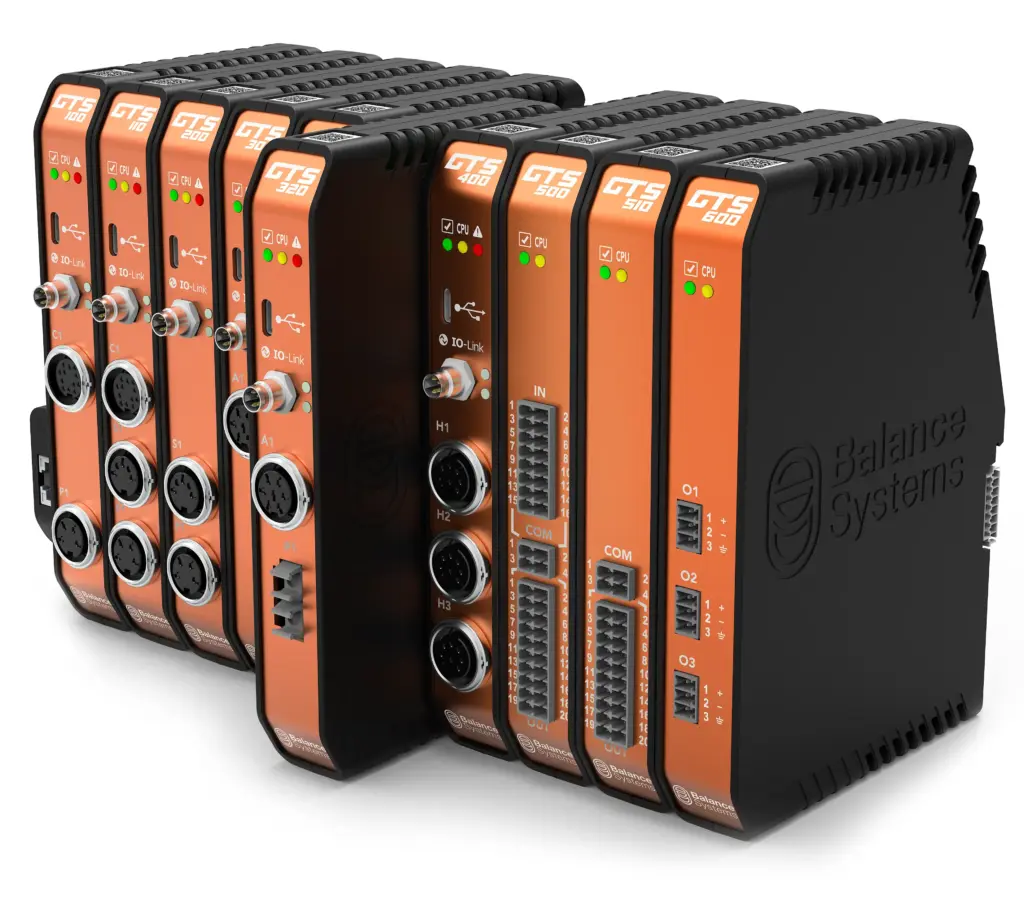

New concept of
cost-effective modularity

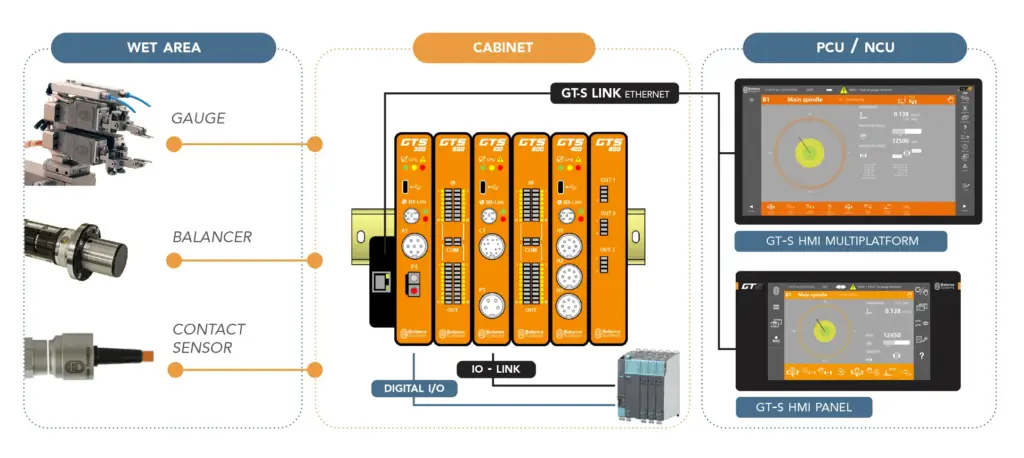

GT-S ensuring a wide scalability of configurations capable of satisfying simple and complex applications with consistently excellent quality and performance, at an affordable price. GT-S is a modular system that offers three functions in various configurations and options:

• Automatic and manual balancing of the spindles

• Tool-to-workpiece and tool-to-dresser contact monitoring

• Pre- in-process and post-process measurement the workpiece

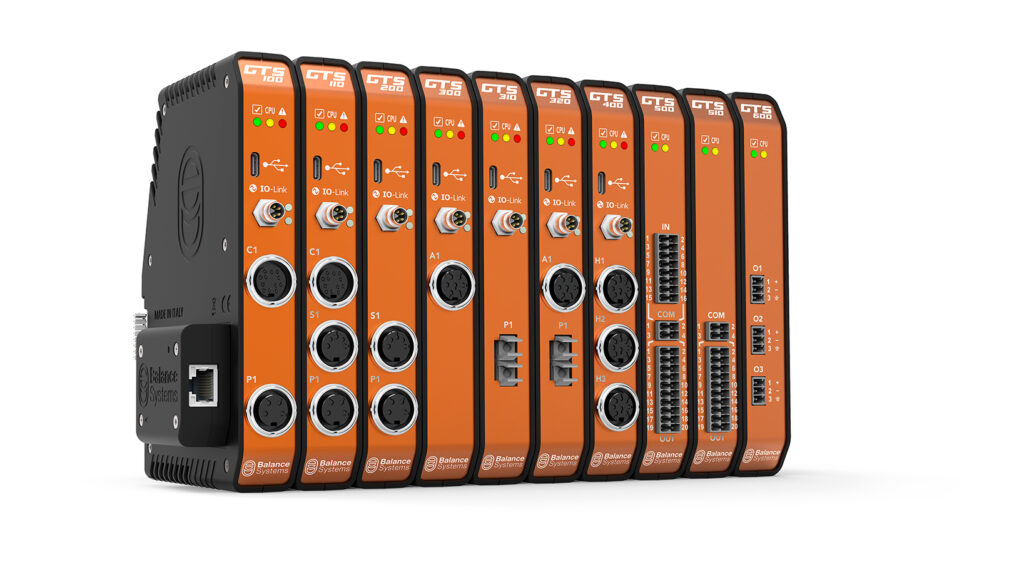

The function modules are designed and engineered for installation in electrical cabinet on a standard DIN rail. Cabinet assembly is extremely simple, and each module can be inserted and removed, for example for maintenance, without affecting the system functionality.

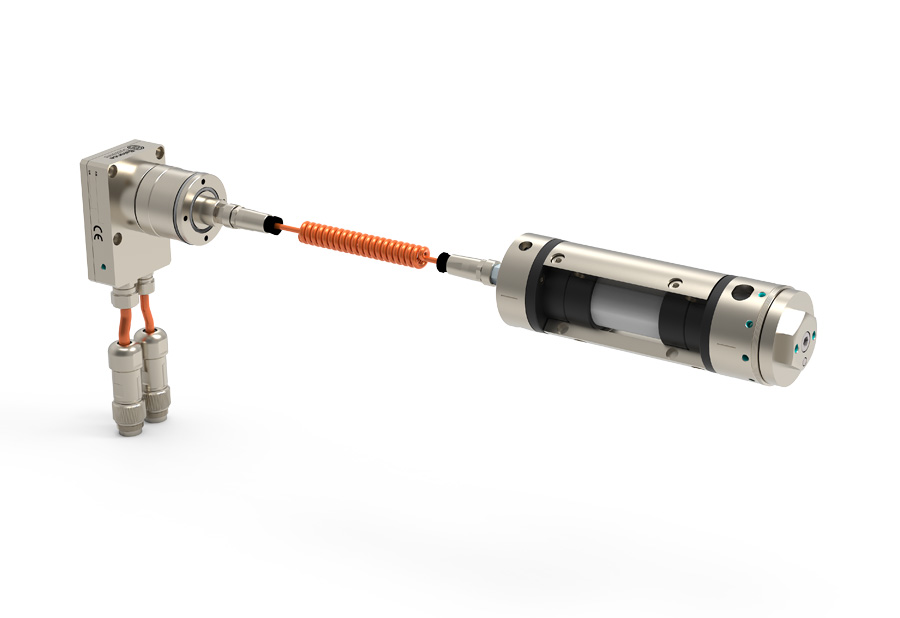

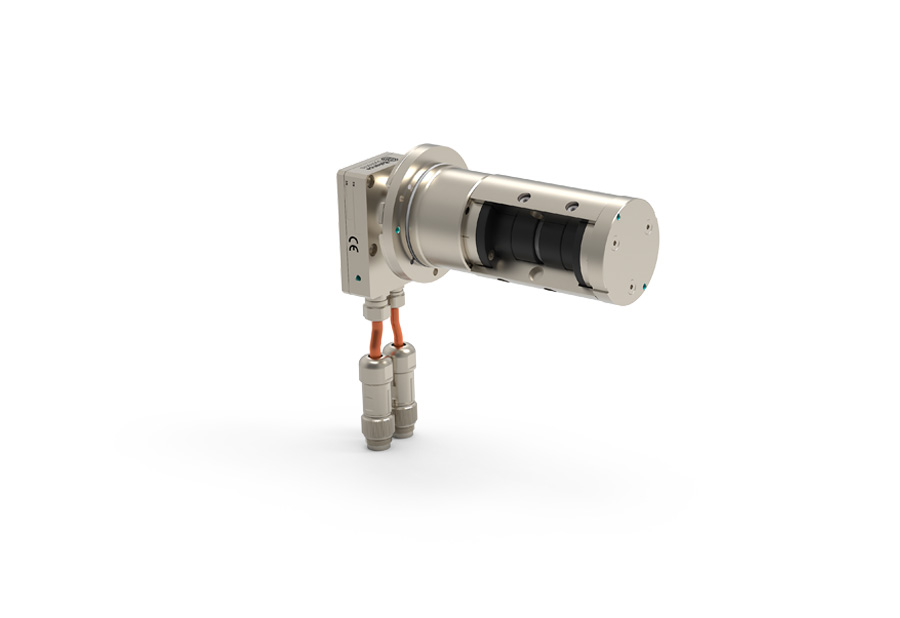

BALANCER

GTS 100 BA

The primary function of the GT-S 100 BA module is the automatic balancing, on one correction plane, based on machine learning and adaptive algorithms optimized for different rotation speeds. Available functions include the neutral mass cycle, manual movement of the balancer weights, automatic and manual tuning of the unbalance filter, and spindle rotation monitoring.

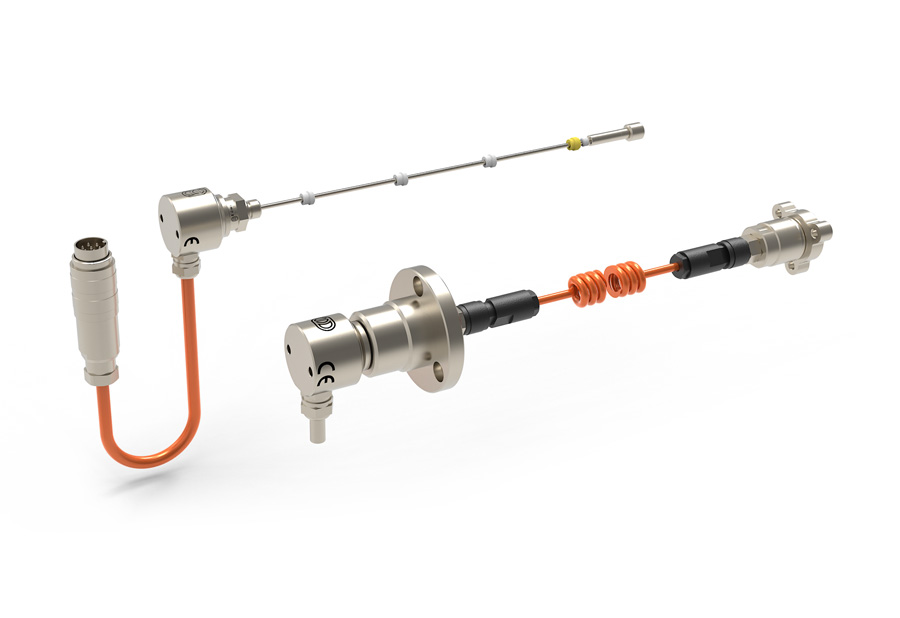

TOUCH DETECTOR

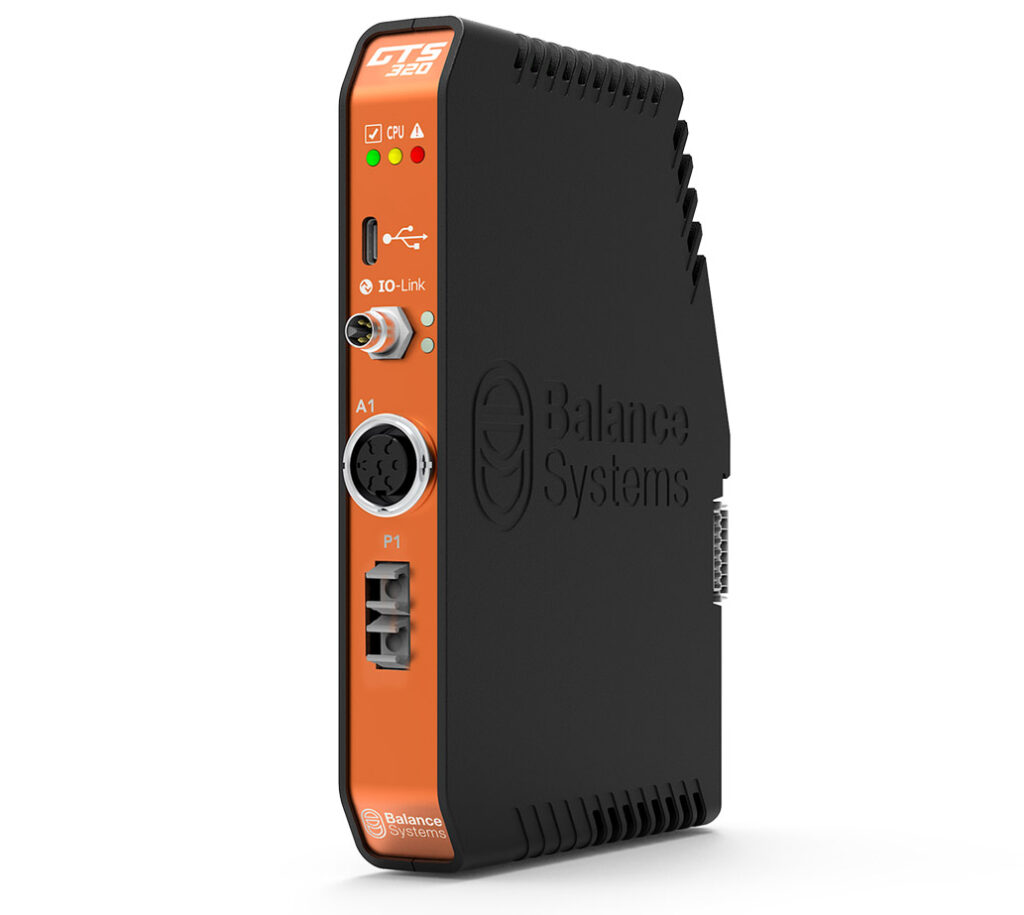

GTS 300 TD

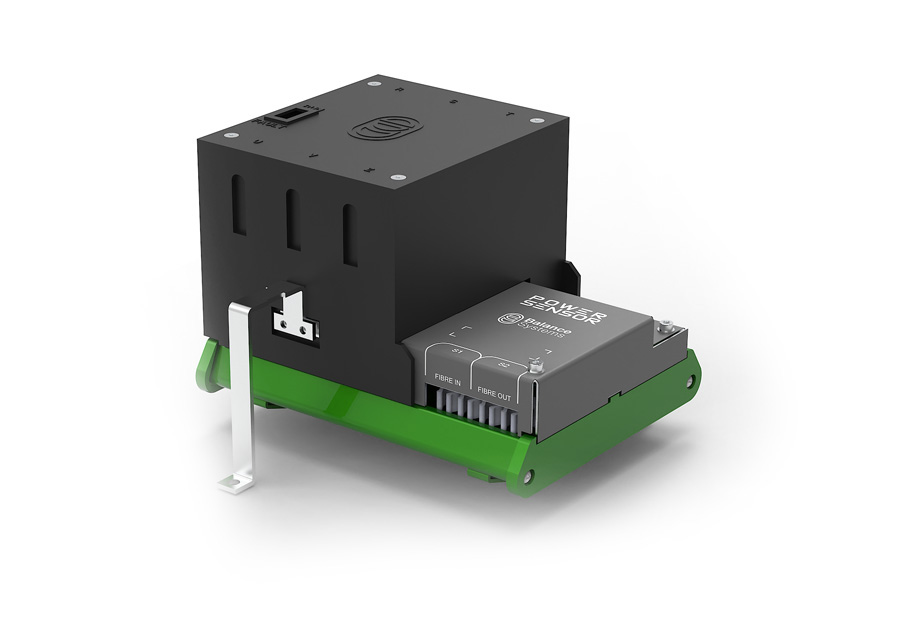

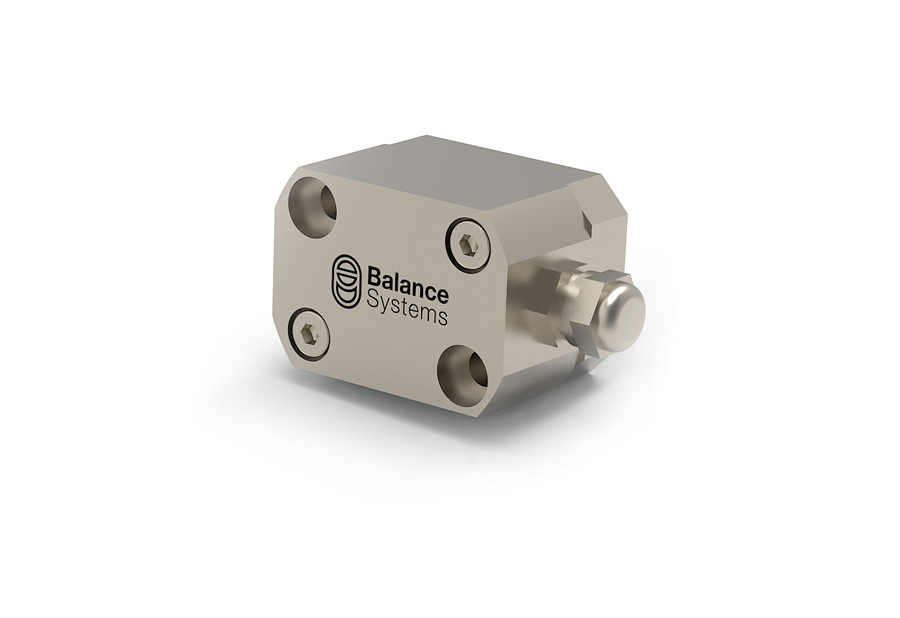

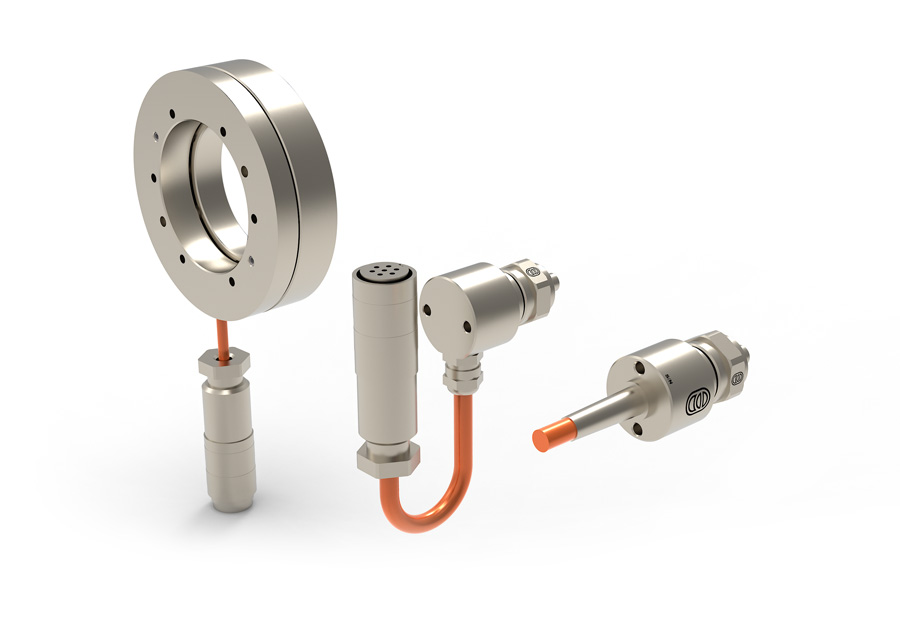

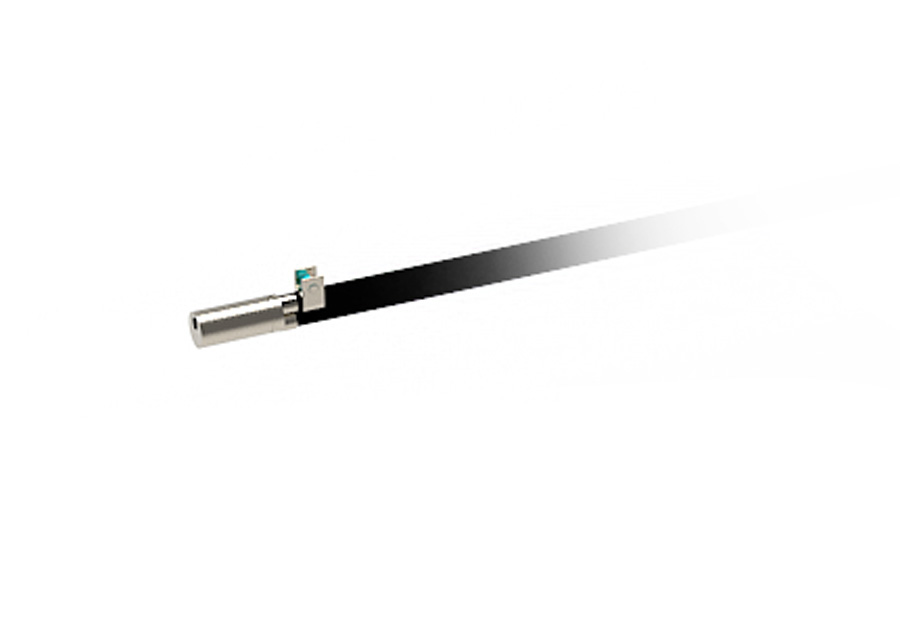

The primary function of the GT-S 300 TD module is based on the control of grinding wheel-to-workpiece and grinding wheel-to-dresser contact through monitoring of the acoustic emission (AE) and/or spindle power consumption. Available functions include self-calibration of frequencies, filters, and AE channel gain for each part-program.

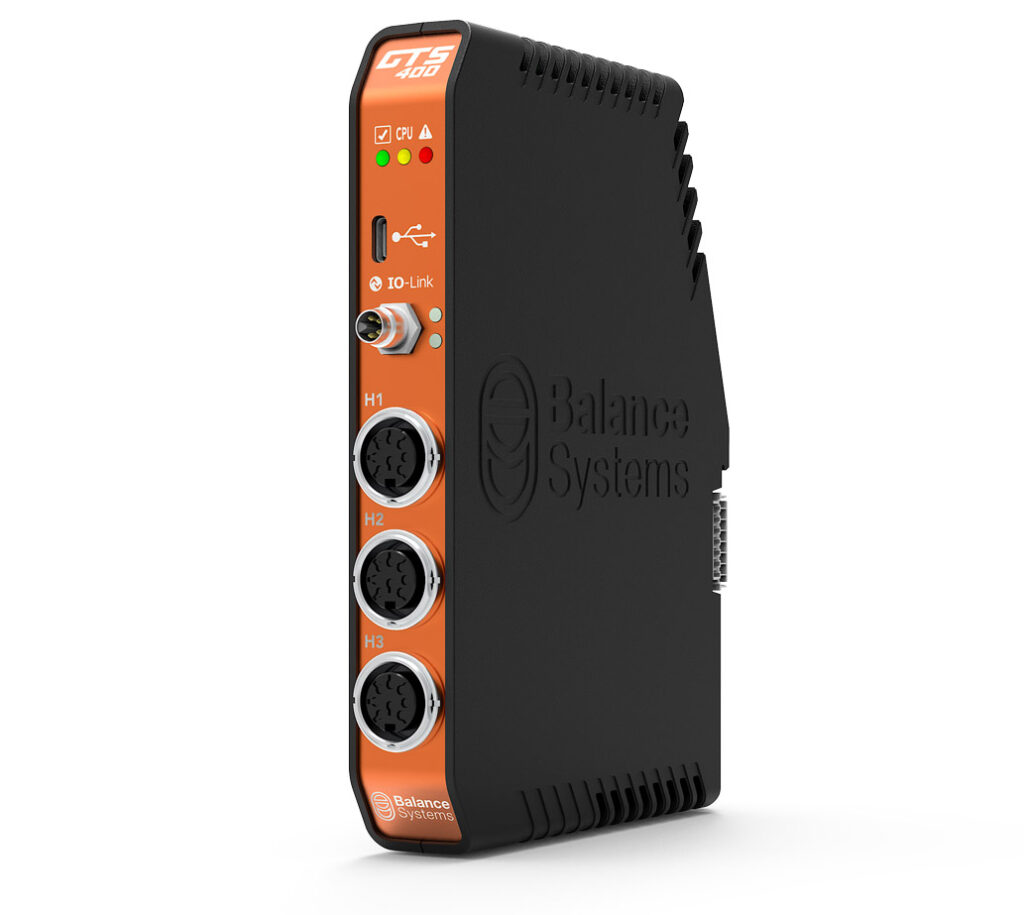

GAUGE

GTS 400 GA

The primary functions of the GT-S 400 GA module are: Pre- in- post- process comparative measurement of external and internal diameters, thicknesses, heights and tapers. Active and passive positioning with measurement transmission. Automatic gauge head recognition, offset correction, automatic electrical zeroing, controlled mechanical zeroing, synchronization for measurement on continuous and/or interrupted surfaces.
